LX iris EFIS
APT navigation page
Document name: LX HUM
Document revision: R1
APT navigation page
From PFD page press right button to access APT (Airport) navigation page. Pilot can select
which APT point to use as navigational point.
6.1 Overview

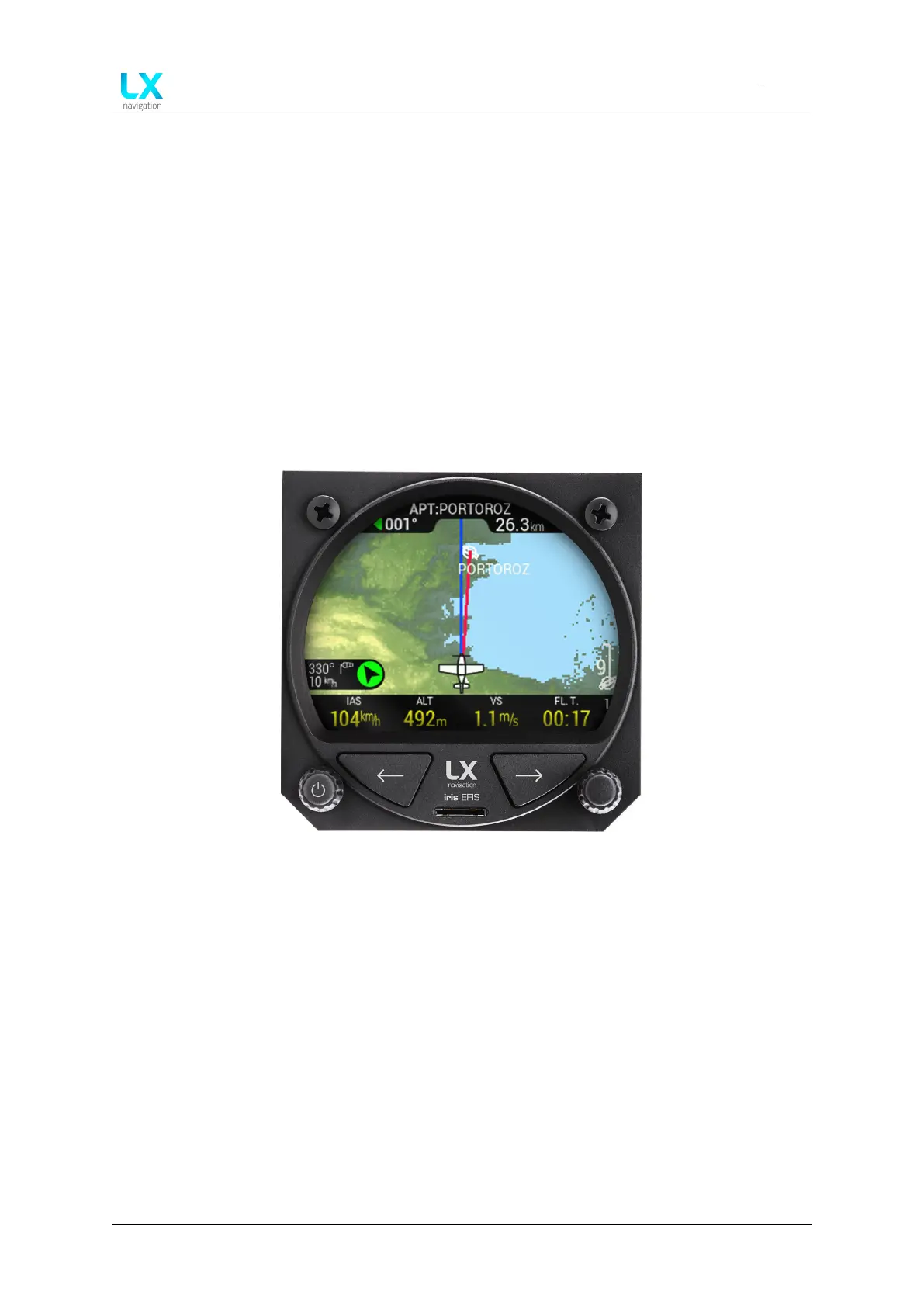

Figure 34. APT navigation page
6.2 Wind widget
Wind widget can be found in the lower left corner of the display. On the black background pilot
can see:
• Wind direction in degrees, relative to aircraft heading (Black arrow on the green circle)
• Wind direction in degrees (with a wind socket icon)
• Wind speed with units (below Wind direction in degrees)
6.3 Wind calculation
LX horizon is able to measure wind using an iterative method that is based on indicated airspeed
(IAS), ground speed (GS) and track (TRK) measurements.
Device manual Public 28
