LX iris EFIS
Airspace page
Document name: LX HUM
Document revision: R1
Airspace page

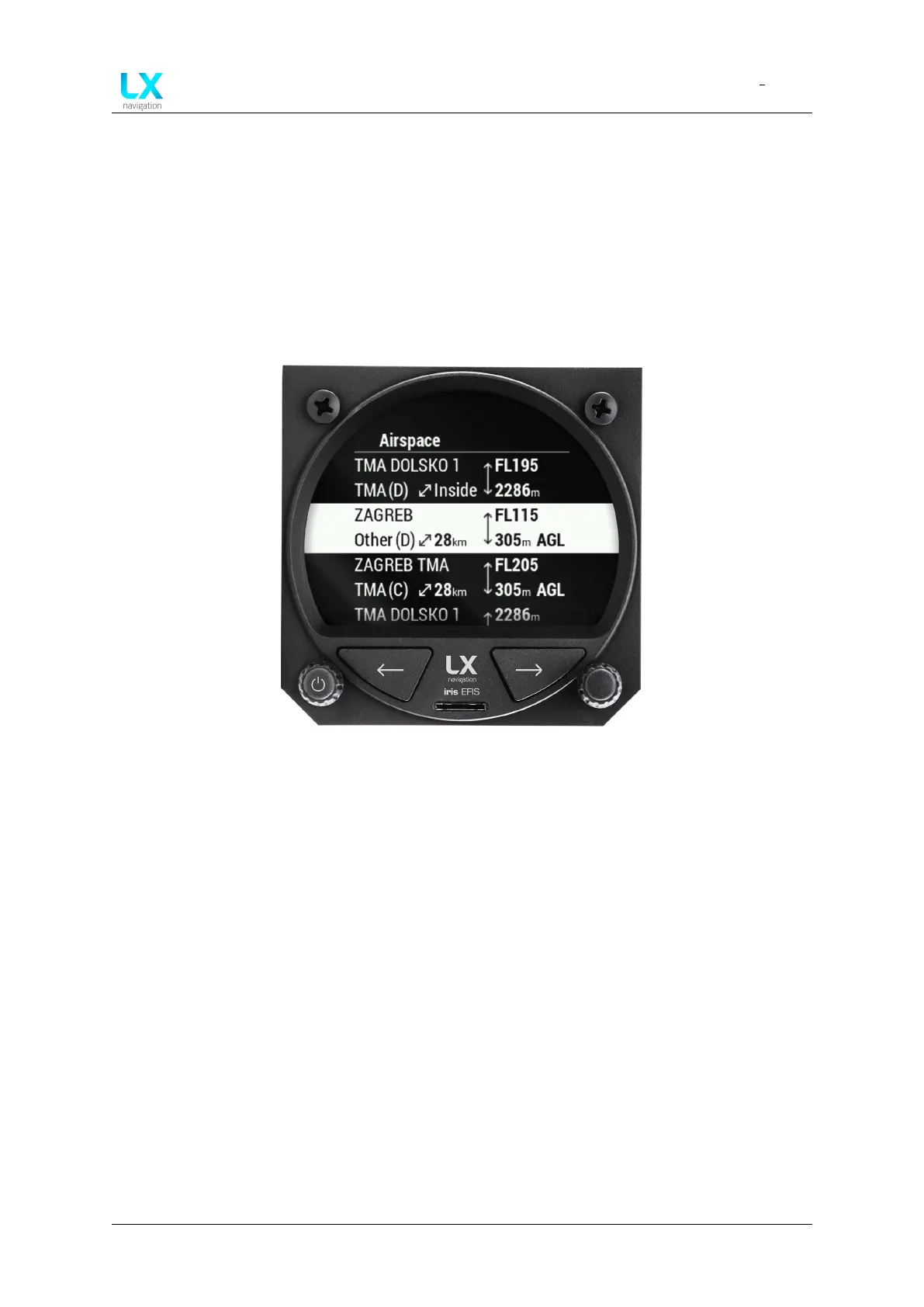

Figure 74. ”Airspace” page with the list of active airspace and details
Airspace page will list all the near and active airspace.
To transfer the airspace file (.as), go to Setup, System section and Transfer menu.
12.1 List of airspace
At the list of airspace, pilot can see the name of the airspace and its class below. On the right
is relative distance. On the right part of the line are the vertical limits in meters/feet of altitude,
height (AGL) or flight level (FL).
Device manual Public 60
