LX iris EFIS
RTE navigation page
Document name: LX HUM
Document revision: R1

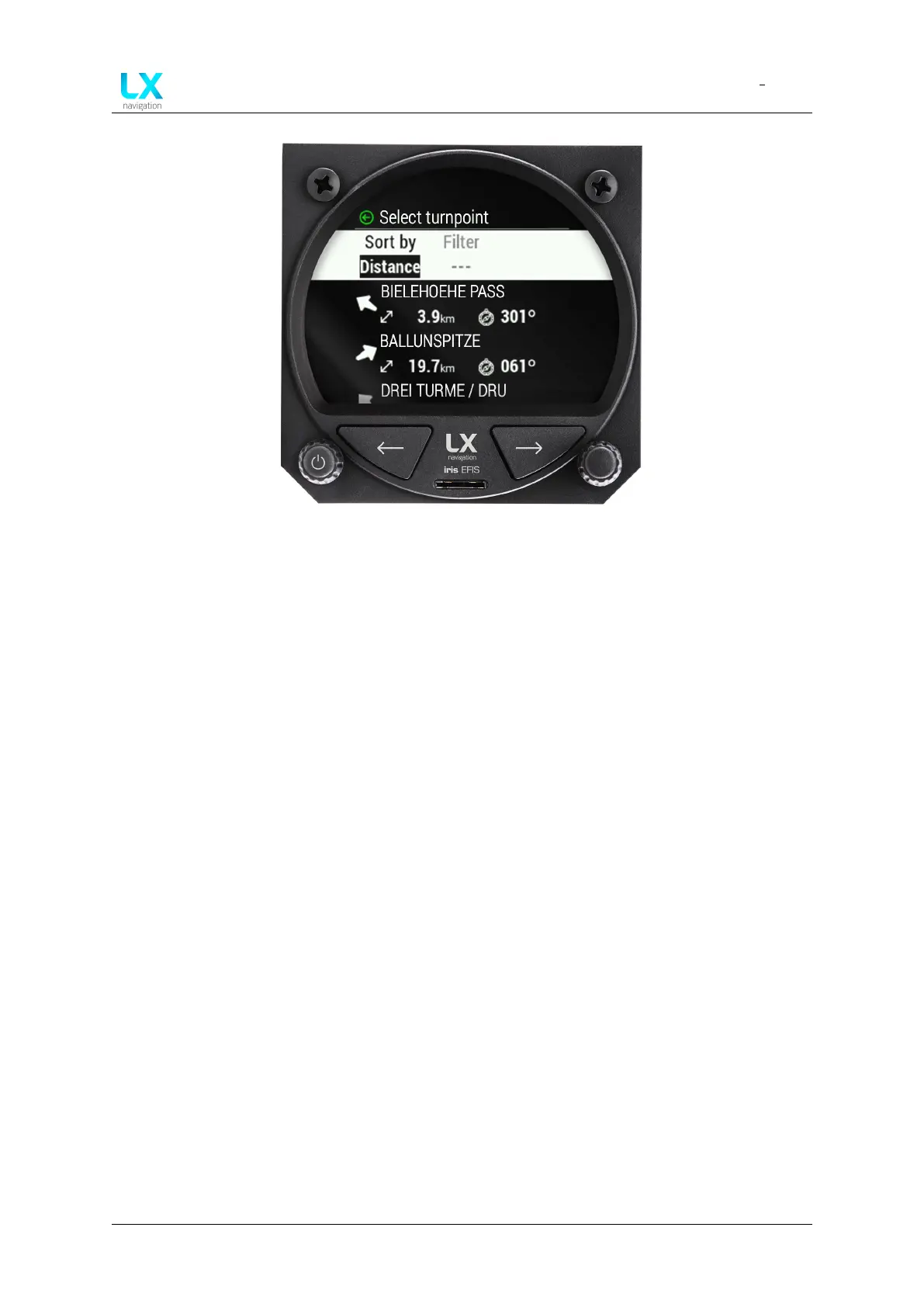

Figure 58. ”Select turnpoint” menu
7.7.1.1 Select turnpoint
Press the right-hand push-rotary knob to define the “Sort by” parameter. Default value is
“Distance”.
Pilot can choose:
• “Distance”, which will sort the results based on the distance. From the closest to the
furthest airport.
• “Name”, which will sort the results based on the name in the alphabetical order.
• “Code”, which will sort the results based on ICAO code
Once pilot have selected the desired “Sort by” parameter by pressing the right-hand push-rotary
knob, one can can apply next parameter, which is “Filter”.
On the left side of the display a circular motion keyboard will appear. Use right-hand push-
rotary knob to rotate and search for each letter. Once the letter is selected press right-hand
push-rotary knob to select it. Use it to add 0-12 signs to use as “Filter” parameter.
Once pilot have selected the desired “Filter” parameter by pressing the right-hand push-rotary
knob, one can apply next parameter, which is “Country”.
Use right-hand push-rotary knob to rotate and move through circular list of countries, sorted by
alphabetical order. To move through the list faster, by 10 lines at the rotate, press in right-hand
push-rotary knob and rotate while pressed.
Device manual Public 44
