7.6 NavBox line
“NavBox” line is assembled of 4 “NavBoxes”. A row of “NavBoxes” assembles a “NavBox line”
which is marked with an indicator number in the top right corner of the “NavBox line”.

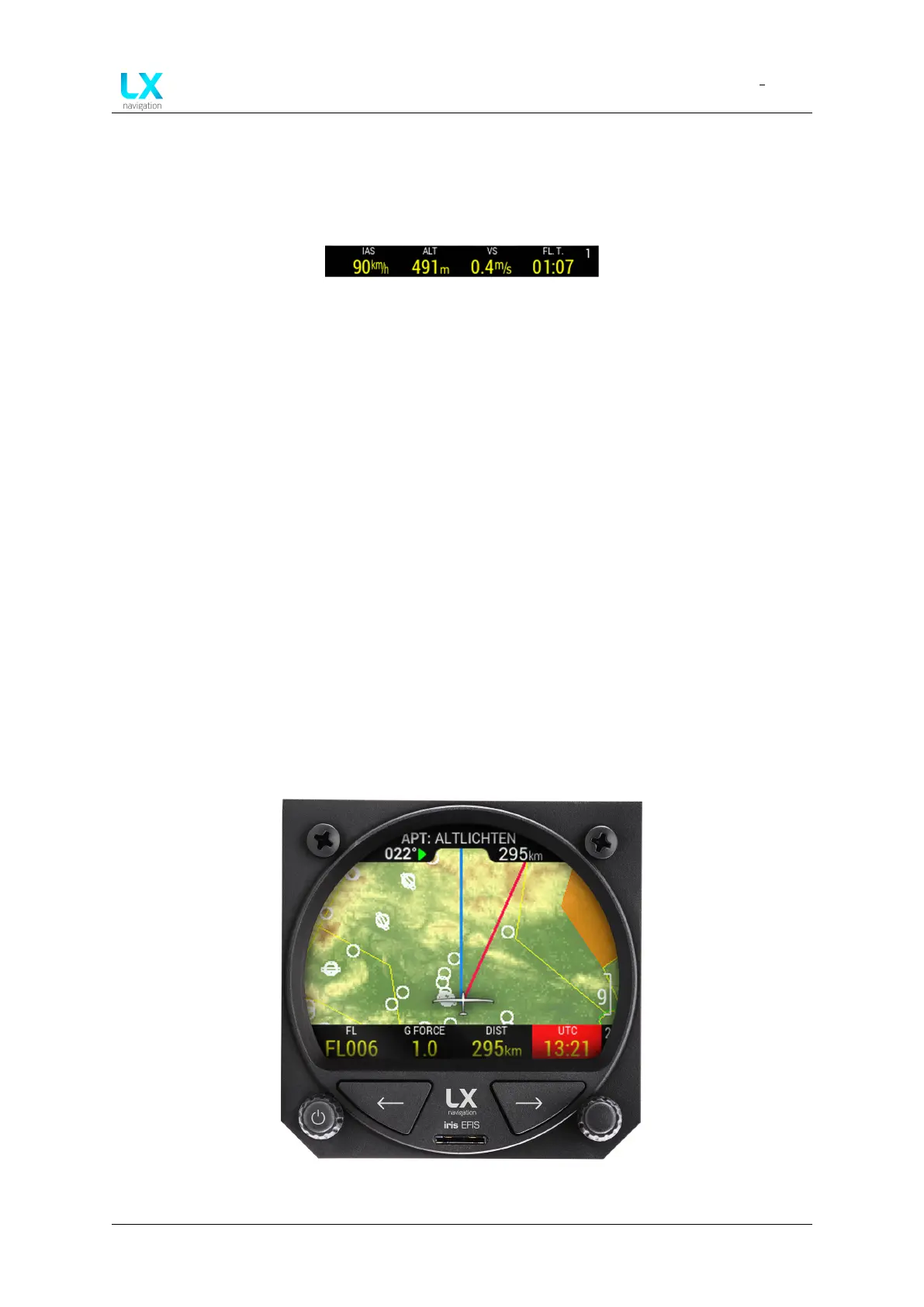

Figure 53. Navbox line
7.6.1 NavBox
“NavBox” is the single information that is displayed by LX device as title and value with unit.
7.6.2 “Navbox line” setup
To move through “NavBox lines” use right-hand push-rotary knob and rotate it. As pilot moves
through “NavBox lines”, one can see the indicator number changes. The movement through
“NavBox lines” is circular.
LX horizon supports 3 “NavBox lines” and additional “disabled mode” which hides the “NavBox
line” and extends the map.
7.6.3 Edit “NavBox”
NavBoxes will appear on the APT and RTE navigation pages. All “NavBoxes” are pilot defined.
To change the “NavBox” press and hold right-hand push-rotary knob. The selected “NavBox”
will appear on the red background. Rotate the right-hand push-rotary knob to move through
each “NavBox” and press in to select which one to edit.
Figure 54. Press and hold the right-hand push-rotary knob to edit NavBox
