MAHA POWERDYNO MSR Series User Manual

103
BA053101-en
Print out setting

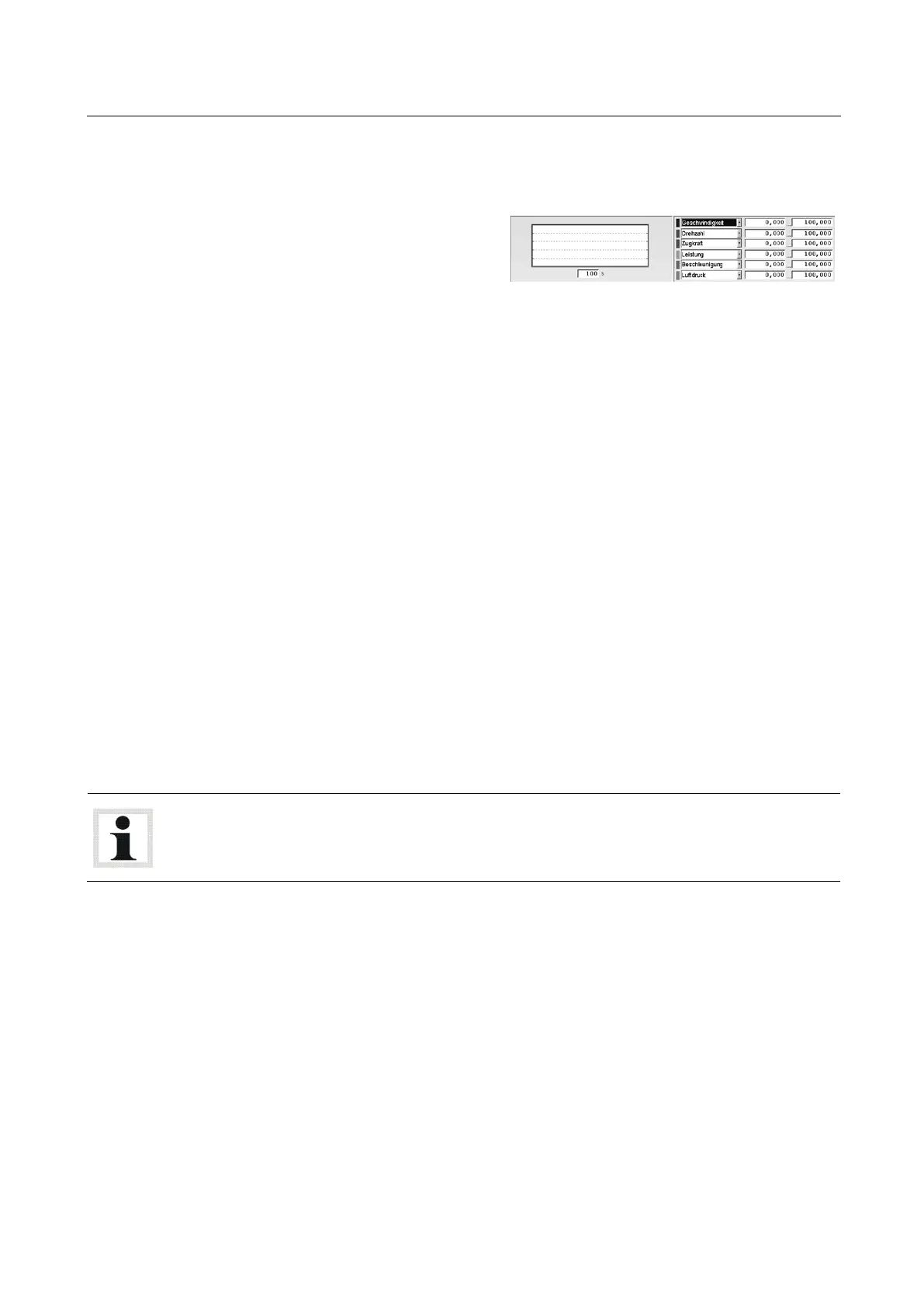

Up to six measurement values can be selected which appear as curves on the print out.
1 Select the measurement values to be dis-
played from the list. Enter the appropriate
measurement range.
2 Enter the time period for the graphic record-
ing.
Selection list of the measurement values:
- Speed
- RPM
-Traction
- Power
- Speed FA
- Speed RA
- Traction FA
- Traction RA
- Power FA
- Power RA
- Acceleration
- Air pressure
- Intake air temperature
- Fuel temperature
- Ambient temperature
- Oil temperature
- Humidity
- CO
- CO
2
- HC
- O
2
- NO
- Lambda (Emission tester)
- Turbidity
- k-value
- Fuel quantity
- l/100 km
- l/h
- Injection quantity
- Average consumption
- Coolant temperature
- Ignition point
- Fuel pressure
- Suction pipe pressure
- Air quantity throughput flow
- Throttle valve position
- OBD Lambda (from vehicle)
- ISE
- Travel distance
- Speed
- Simulated inertia
- Simulation target value
- Simulation actual value
- Simulation error
- Positive simulation
- Negative simulation
- Max. pos. simulation
- Max. neg. simulation
- Force on vehicle
- Vehicle energy
- Energy from vehicle
- Energy from vehicle
- Road Load
- Total speed
- Angle (FA)
- Angle (RA)
- Temperature 1…8
- Pressure 1…8
- Analog 1…8
The measurement value can only be displayed when the appropriate sensors and measurement
devices are connected.
In connection with the analog input module (optional), Analog 1…8 are overwritten with the given
designation from the external measurement data of the configuration.
Store Profile
1 Enter the name of the profile in the first line of the screen.
2 Press the button <F8 STORE>.
