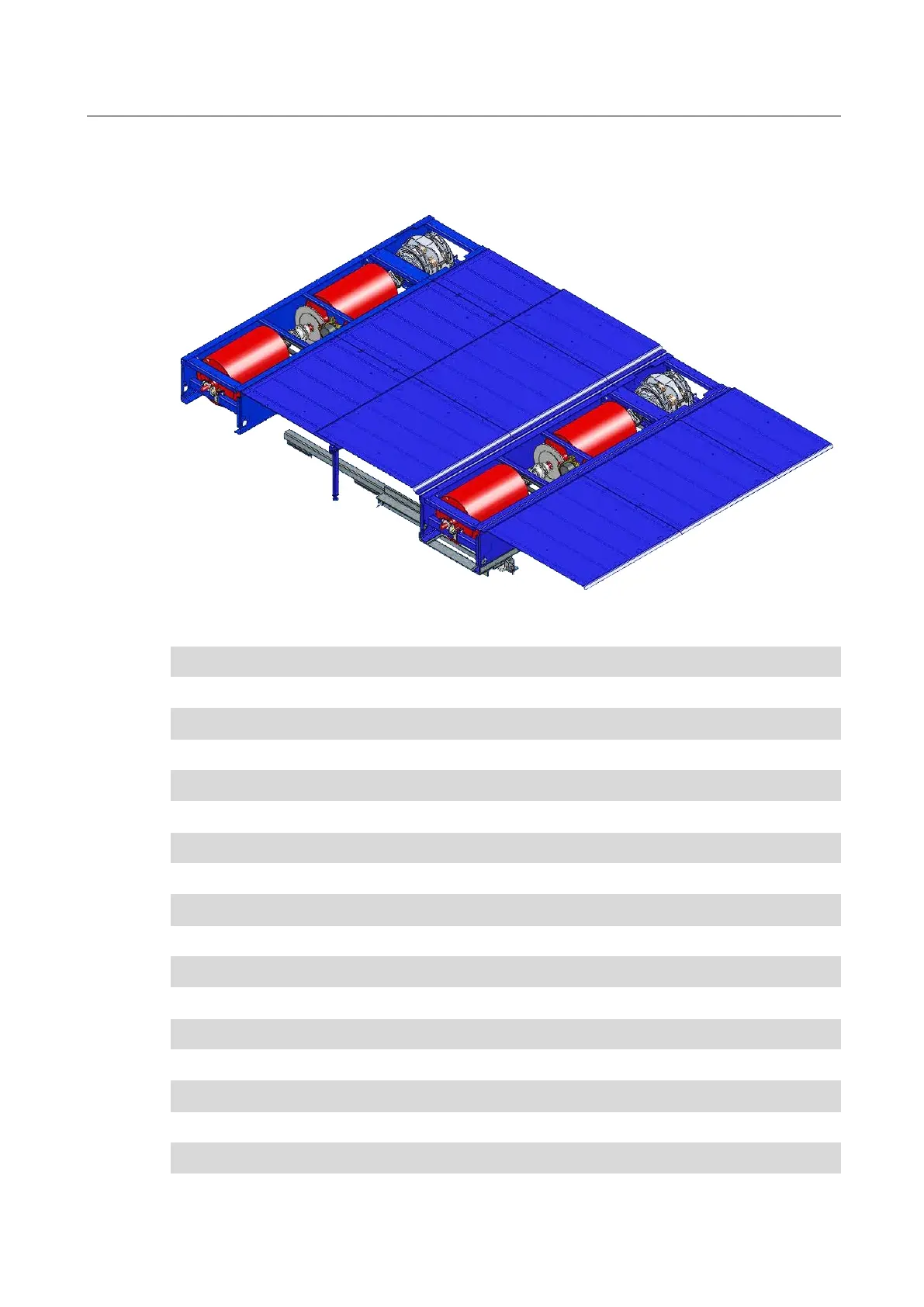

MSR 500/2 4WD
Pos: 56 / Tec hnis che Do kume nt atio n/Le ist ungs mess tec hn ik/P OWE RDY NO/ 05 310 1 MS R/BA/ In ha lt: 0 531 MSR 500/ 2 4WD ( Bild ) @ 23\mod_1296464625288_0.docx @ 968293 @ @ 1
Pos: 57 / Tec hnis che Do kume nt atio n/Le ist ungs mess tec hn ik/P OWE RDY NO/ 05 310 1 MS R/BA/ In ha lt: 0 531 MSR 500/ 2 4WD ( Tex t) @ 22\m od_1295435416655_75.docx @ 963520 @ @ 1
4WD with 1 Eddy Current Brake and 1 Electric Motor per Axle
Roller diameter 504 mm / 20"
Rolling circumference 1583 mm
Roller length 750 mm
Track width (min….max.) 700…2200 mm
Roller wall thickness 12 mm
Total weight of Roller set 4130 kg
Mech. inertia weight 2 x 280 kg
Permissible axle load 2500 kg
Maximum speed 300 km/h
Maximum speed of a tracked, non-driven axle approx. 200 km/h
Motor power 2 x 22 kW
Wheel power Front axle stat. / dyn. 260 / 1000 kW (Peak)
Wheel power Rear axle stat. / dyn. 260 / 1000 kW (Peak)
Tractive force Front axle approx. 7000 N
Tractive force Front axle approx. 7000 N
Fuse 63 A
Supply voltage 3 x 400 + N + PE
