MAHA POWERDYNO MSR Series User Manual

34
BA053101-en
Air Pressure
The air pressure is recorded using the interface box and is used for projection of the engine
performance based on DIN 70020, EWG 80/1269, ISO 1585, SAE J1349 or JIS D1001.
Humidity
The humidity is recorded using the interface box and is used for projection of the engine
performance based on DIN 70020, EWG 80/1269, ISO 1585, SAE J1349 or JIS D1001.
The current air temperature , ambient pressure and relative humidity is included in the calculation
with the given standards (DIN 70020, EWG 80/1269, ISO 1585, SAE J1349 and JIS D1001)
Pos: 113 /Tech nische D okumen tation/A lle G eräte/ Überschr iften/Üb ers chrifte n 1.1.1/O/ Über schrift 1.1.1: OBD-M odul (Option) @ 13\mod_1234257204298_75.docx @ 336543 @ 3 @ 1
2.7.3

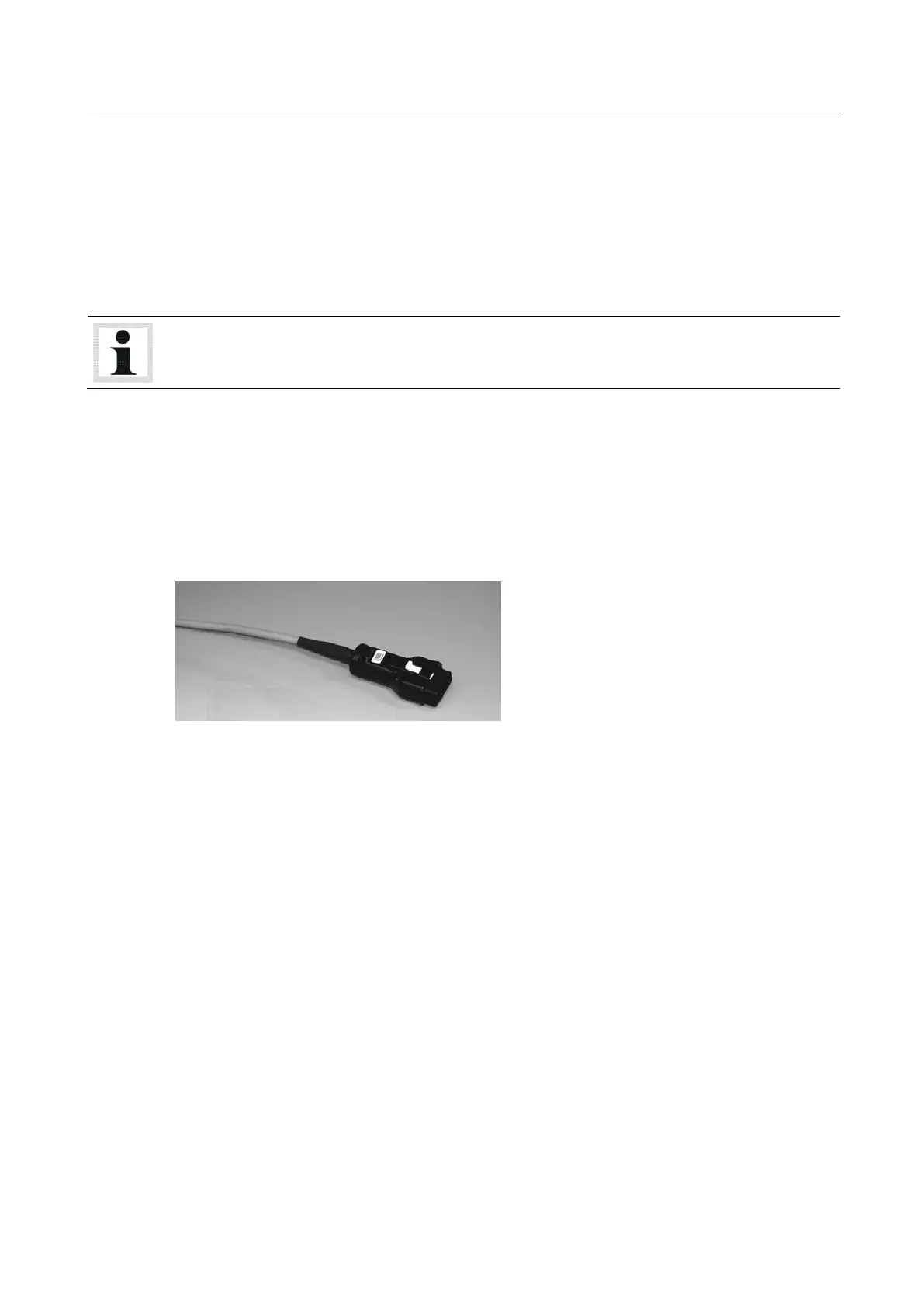

OBD Module (Optional)
Pos: 114 /Te chnis che D okum ent ati on/Leistungsmesstechnik/POWERDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 OBD-Modul (Option) (Text) @ 13\mod_1234257277407_75.docx @ 336659 @ @ 1
The OBD module is used for recording the OBD data (Plug-in card CAN OBD Module). This OBD
data is different depending on the vehicle manufacturer.
Attachment:
• Position
(OBD)
on the interface box (see section "Description of the Interface Box" ).
Pos: 115 /Te chnis che D okum ent ati on/ Leis tun gsm esst ech nik/ POWE R DYN O/0 523 01 LPS 3 000 R10 0/B A/I nhal t: 052 3 OBD -Modul (Option) (B ild) @ 13\m od_12 34258 3593 52_0.d ocx @ 336 685 @ @ 1
Pos: 116 /Tech nische D okumen tation/A lle G eräte/ Überschr iften/Üb ers chrifte n 1.1.1/ D/Übersc hrif t 1.1. 1: Druck/ Tempera turmod ul (Opti on) @ 13\mod _1 23425 84321 20_75.d ocx @ 3 36711 @ 3 @ 1
2.7.4
Pressure/Temperature Module (Optional)
Pos: 117 /Te chnis che D okum ent ati on/ Leis tun gsm esst ech nik/ POWE R DYN O/0 523 01 LPS 3 000 R10 0/B A/I nhal t: 052 3 Dru ck/ Temp era tur modu l (O pti on) @ 1 3\mod_1234258485560_75.docx @ 336737 @ @ 1
The pressure/temperature module is used to record 2 temperatures and 2 pressures (Plug-in card
CAN P2T2).
Pressure 1 + 2
Pressure 1 +2 is user specific. The test range stretches from– 0.9 to + 4.0 bar and can for example
be used to determine the intake pressure, turbocharger pressure, etc.
Exhaust Gas Temperature
The exhaust gas temperature is used as monitor check of the combustion process and to judge its
quality.
The high temperature sensor consists. of a Ni-Cr-Ni thermo element with compensation line.
The measurement range stretches from 0 to 1000 °C.
Pos: 118 /-----F ormat- ----/MA NUELLE R UMBR UCH Seitenum bruch @ 0\mod_1134403577687_0.docx @ 1277 @ @ 1
