MAHA POWERDYNO MSR Series User Manual

59
BA053101-en
Pos: 205 /Te chnis che Dok umenta tion/A lle Ger äte/Über schr iften/Üb erschrif ten 1/V/ Über schrift 1: Vorb ereitu ng zur P rüfun g @ 6\mod_1182866197218_75.docx @ 97762 @ 1 @ 1
8
Preparations for Testing
Pos: 206 /Tech nische D okumen tation/A lle G eräte/ Überschr iften/Üb ers chrifte n 1.1/P/ Überschr ift 1.1: Prüfs ta nd eins cha lten @ 13\m od_1234338282712_75.docx @ 337911 @ 2 @ 1
8.1
Switch on the Dyno
Pos: 207 /Te chnis che D okum ent ati on/ Leis tun gsm esst ech nik/ POWE R DYN O/0 523 01 LPS 3 000 R10 0/B A/I nhal t: 052 3 Prü fsta nd e ins cha lten @ 1 3\mod_ 123 4338 731 466_ 75.docx @ 337937 @ @ 1
1 Switch on the main switch at the communication desk.
2 Turn the Operating mode switch to position 2 "Setup".
3 Push the Control ON button.
See also section "Description / Controls and Indicators".
Pos: 208 /Te chnis che Dok umen tati on/A lle G eräte/ Übe rschr ifte n/Üb erschr ifte n 1.1/ P/ Übersc hrift 1.1: Prüfs ta nd be fahr en und Fa hrzeu g fix ieren @ 1 4\mod_1241610689527_75.docx @ 371981 @ 2 @ 1
8.2

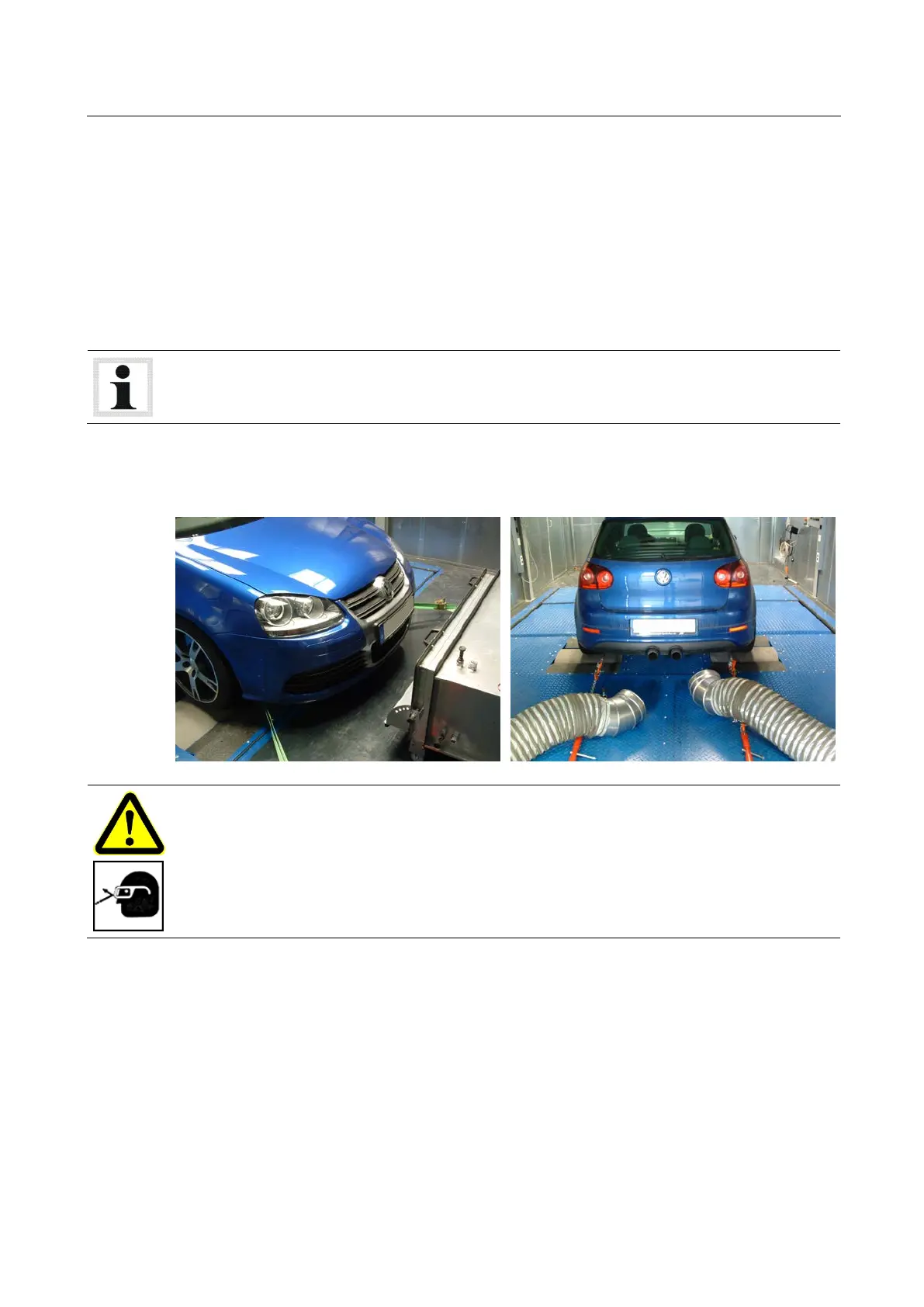

Drive onto Dyno and Secure Vehicle
Pos: 209 /Tech nische D okumen tation/ Leistu ngsmess techni k/POWE RDYNO /0531 01 M SR/ BA/Inh alt: 0 531 Pr üfstand b efahre n und F ahrzeu g fix ieren (B ilder) @ 14\m od_12 41610 7606 68_0.d ocx @ 3 72007 @ @ 1
Pos: 210 /Tech nische D okumen tation/ Leistu ngsmess techni k/- Ar chiv -/00 LPS A lle/In ha lte/War nun g!/In halt: Warnung - Verletz ungsge fahr d urch Partike l @ 13\mod_1234338898507_75.docx @ 337989 @ @ 1
Risk of injury by flying particles!
• Before driving onto the rollers, remove all particles such as gravel etc. from the tires.
• Check the balancing weights on the rims for tight fit.
• Wear protective glasses.
Pos: 2 11 /Te chnis che Dok umen tation/ Leis tun gsmes stech nik /POWE RDY NO/0 531 01 M SR/ BA/ Inhal t: 0 531 Pr üfsta nd b efahr en u nd F ahrzeu g fixieren (Text) @ 1 4\mod_1241610870809_75.docx @ 372033 @ @ 1
1 Block the rollers.
2 Position the front axle in the center on top of the front roller set.
3 Put on the parking brake.
4 Fix the vehicle at the front with tightening straps, and with chains at the rear. The anchoring
should be tight, but not pull down the vehicle.
5 Release the parking brake and shift to idle position.
6 Move the rear roller set until the rear axle also sits centered on the top.
7 Retighten the vehicle fixing again.
8 Release the roller blocking.
Pos: 212 /Tech nische D okumen tation/ Leistu ngsmess techni k/- Ar chiv -/00 LPS Alle/Inhalte/Warnung!/Inhalt: Warnung - L ebens gefahr be i Losr eiße n des FZGs @ 17\mod_1253775470018_75.docx @ 447663 @ @ 1
