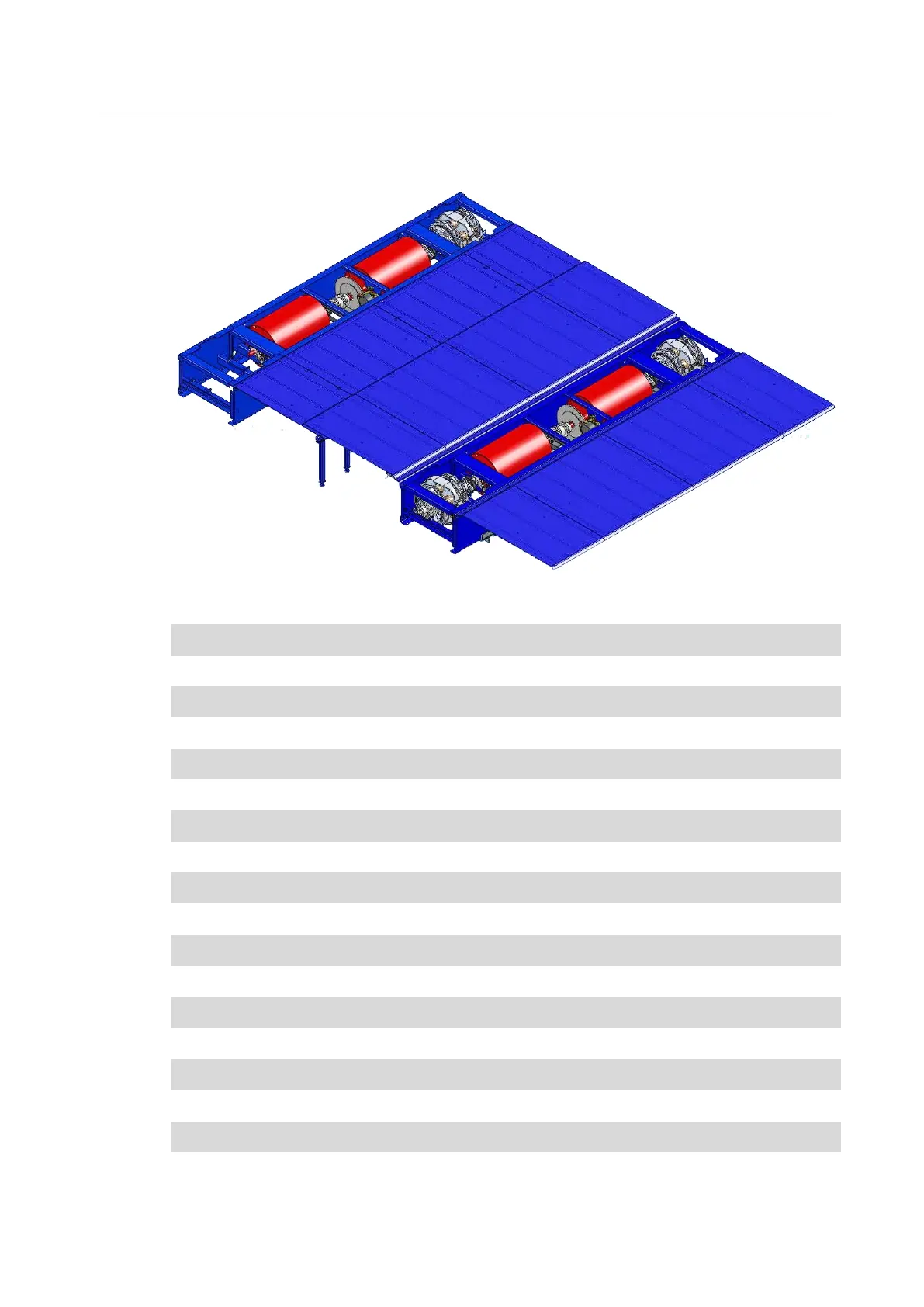

MSR 500/3 4WD
Pos: 59 / Tec hnis che Do kume nt atio n/Le ist ungs mess tec hn ik/P OWE RDY NO/ 05 310 1 MS R/BA/ In ha lt: 0 531 MSR 500/ 3 4WD ( B ild) @ 23\m od_1296464996919_0.docx @ 968353 @ @ 1
Pos: 60 / Tec hnis che Do kume nt atio n/Le ist ungs mess tec hn ik/P OWE RDY NO/ 05 310 1 MS R/BA/ In ha lt: 0 531 MSR 500/ 3 4WD ( Tex t) @ 22\m od_1295435803655_75.docx @ 963580 @ @ 1
4WD with 1 Eddy Current Brake FA, 2 Eddy Current Brakes RA, 1 Electric Motor per Axle
Roller diameter 504 mm / 20"
Rolling circumference 1583 mm
Roller length 750 mm
Track width (min….max.) 700…2200 mm
Roller wall thickness 12 mm
Total weight of Roller set 4395 kg
Mech. inertia weight 1 x 280 kg / 1 x 305 kg
Permissible axle load 2500 kg
Maximum speed 300 km/h
Maximum speed of a tracked, non-driven axle approx. 200 km/h
Motor power 2 x 22 kW
Wheel power Front axle stat. / dyn. 260 / 1000 kW (Peak)
Wheel power Rear axle stat. / dyn. 520 / 1000 kW (Peak)
Tractive force Front axle approx. 7000 N
Tractive force Front axle approx. 14000 N
Fuse 63 A
Supply voltage 3 x 400 + N + PE
