Enabling / Disabling the Dynamometer
ON
1 Main switch ON.
2 Set operating mode selector switch to re-
quired position.
3 Control ON.
 Dyno is ready for operation.
OFF
1 Control OFF.
2 Main switch OFF.
 Dyno is shut down.
Pos: 90 / Techn ische Dokument ation/ Alle Ger äte/Über schr iften/ Überschri ften 1.1/N/ Überschr ift 1 .1: Not-H alt @ 2 3\mod_1297171316373_75.docx @ 9724 49 @ 2 @ 1
2.5
Emergency Stop
Pos: 91 /Technische Dokumentation/Leistungsmesstechnik/POWERDYNO/053101 MSR/BA/Inhalt: 0531 Not-Halt (Bild) @ 24\mod_1305639886912_0.docx @ 1007804 @ @ 1
Pos: 92 /Technische Dokumentation/Leistungsmesstechnik/POWERDYNO/053101 MSR/BA/Inhalt: 0531 Not-Halt (Te xt) @ 23\ mod_1296551173826_75.docx @ 968643 @ @ 1

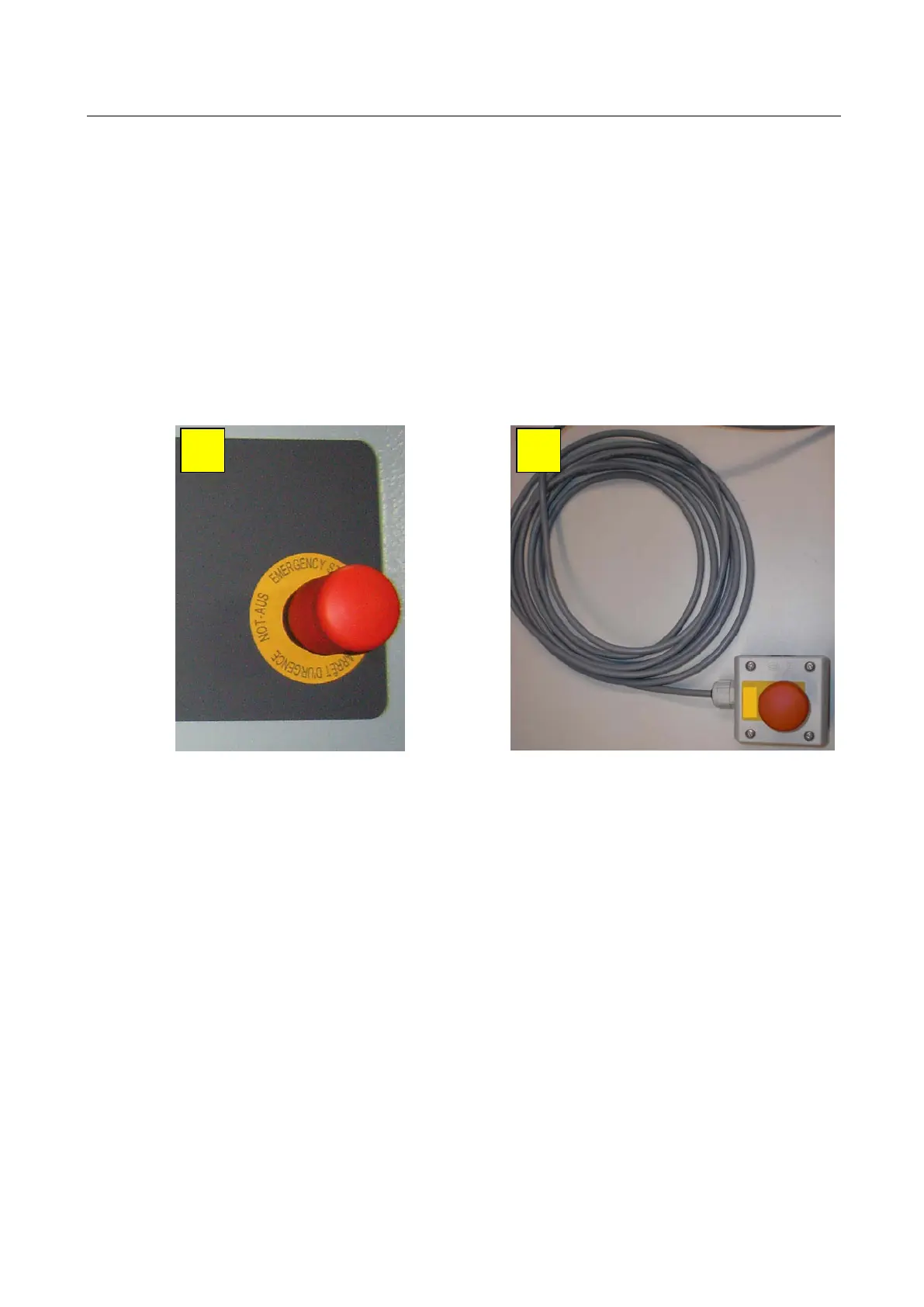

A
EMERGENCY STOP
at Communication Desk
B
Portable EMERGENCY STOP
for Motor-Driven Dynamometers
Push the mushroom button to enable the EMERGENCY STOP:
 Motor converters OFF
 Power section of eddy current brake OFF
 All outputs for hydraulic and pneumatic systems OFF
 Program must be restarted
