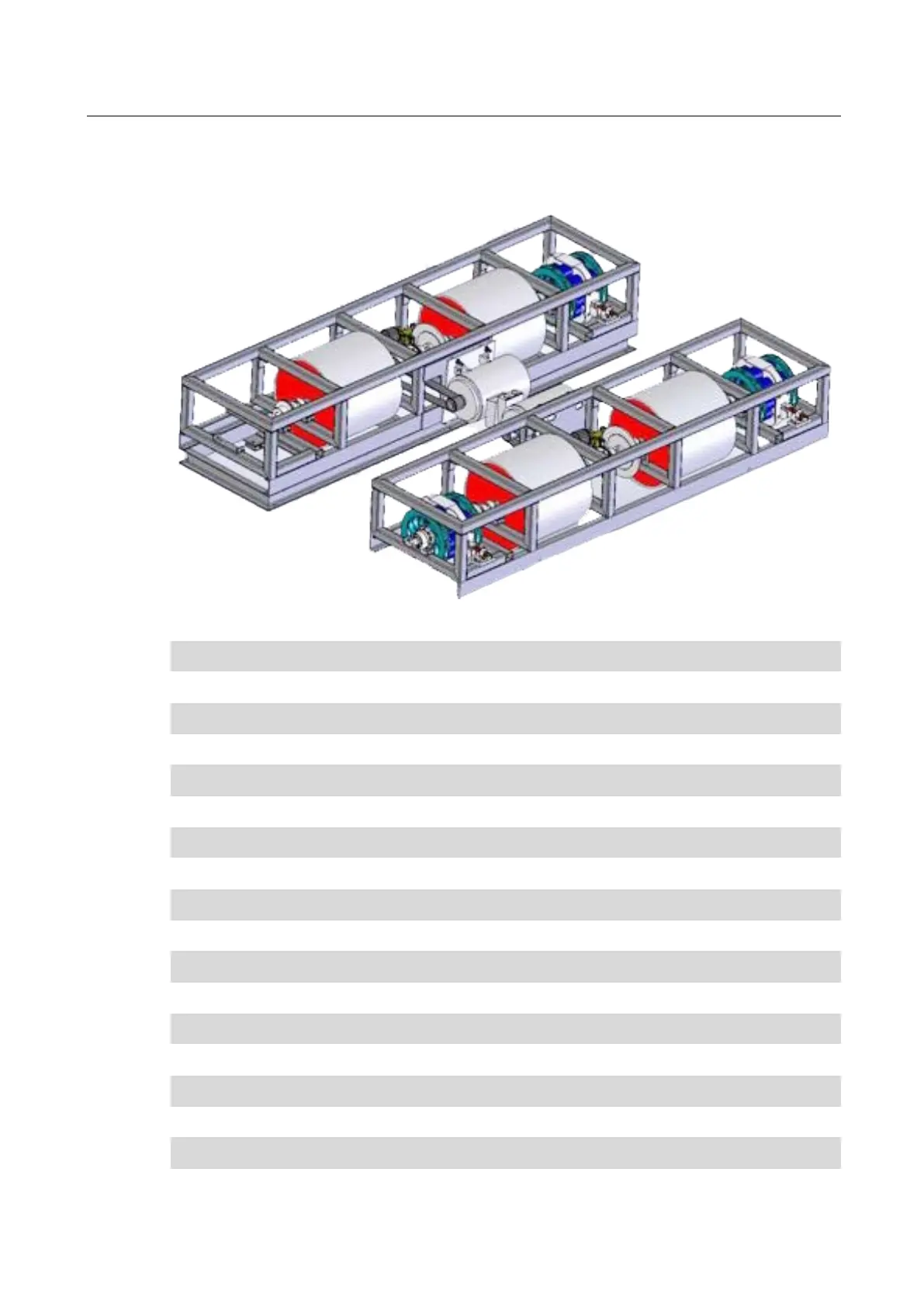

MSR 1050
Pos: 79 /Technische Dokumentation/Leistungsmesstechnik/POWERDYNO/053101 MSR/BA/Inhalt: 0531 MSR 1050 (Bild) @ 23\mod_1298448681304_0.docx @ 979222 @ @ 1
Pos: 80 /Technische Dokumentation/Leistungsmesstechnik/POWERDYNO/053101 MSR/BA/Inhalt: 0531 MSR 1050 (Text) @ 14\mod_1241599445142_75.docx @ 371773 @ @ 1
4WD with 1 Eddy Current Brake FA, 2 Eddy Current Brakes RA, 1 Electric Motor per Axle
Roller diameter 762 mm / 30"
Rolling circumference 2393 mm
Roller length 700 mm
Track width (min….max.) 900…2300 mm
Roller wall thickness 20 mm
Total weight of Roller set 5970 kg
Mech. inertia weight 1 x approx. 700 kg / 1 x approx. 730 kg
Permissible axle load 2500 kg
Maximum speed > 300 km/h
Maximum speed of a tracked, non-driven axle approx. 200 km/h
Motor power 2 x 30 kW
Wheel power Front axle approx. 700 kW (Peak)
Wheel power Rear axle approx. 1400 kW (Peak)
Tractive force Front axle approx. 8600 N
Tractive force Rear axle approx. 17200 N
Fuse 63 A
Supply voltage 3 x 400 V + N + PE
