As part of routine tests, SINAMICS equipment with three-phase motors will undergo a voltage test
in accordance with EN 50178. Before the voltage test is performed on the electrical equipment of
industrial machines to EN 60204-1, Section 19.4, all connectors of SINAMICS equipment must be
disconnected/unplugged to prevent the equipment from being damaged.
Motors must be connected in accordance with the circuit diagram provided. They must not be
connected directly to the three-phase supply because this will damage them.
Operating the equipment in the immediate vicinity (< 1.5 m) of mobile telephones with a transmitter
power of > 1 W may lead to incorrect operation.
When operated in dry operating areas, SINAMICS equipment with three-phase motors conforms
to low-voltage Directive 73/23/EEC.
DINAMICS equipment with three-phase motors conforms to EMC Directive 89/336/EEC in the
configurations specified in the associated EC Certificate of Conformity.
Pos: 152 /Tech nische D okumen tation/A lle G eräte/ Überschr iften/ Üb erschr ifte n 1.1/N / Übers chrift 1.1: N etz ansc haltu ng für B ooksiz e-Antri ebsverb and @ 14\mod_1241602668844_75.docx @ 371929 @ 2 @ 1
Mains Connection for Booksize Drive Assembly
Pos: 153 /Te chnis che D okum ent ati on/ Leis tun gsm esst ech nik/ POWE R DYN O/0 531 01 M SR/ BA/I nha lt: 053 1 SIN AMI CS Netz ans cha lt ung B ooks iz e ( Text) @ 1 4\mod_1241602787187_75.docx @ 371955 @ @ 1

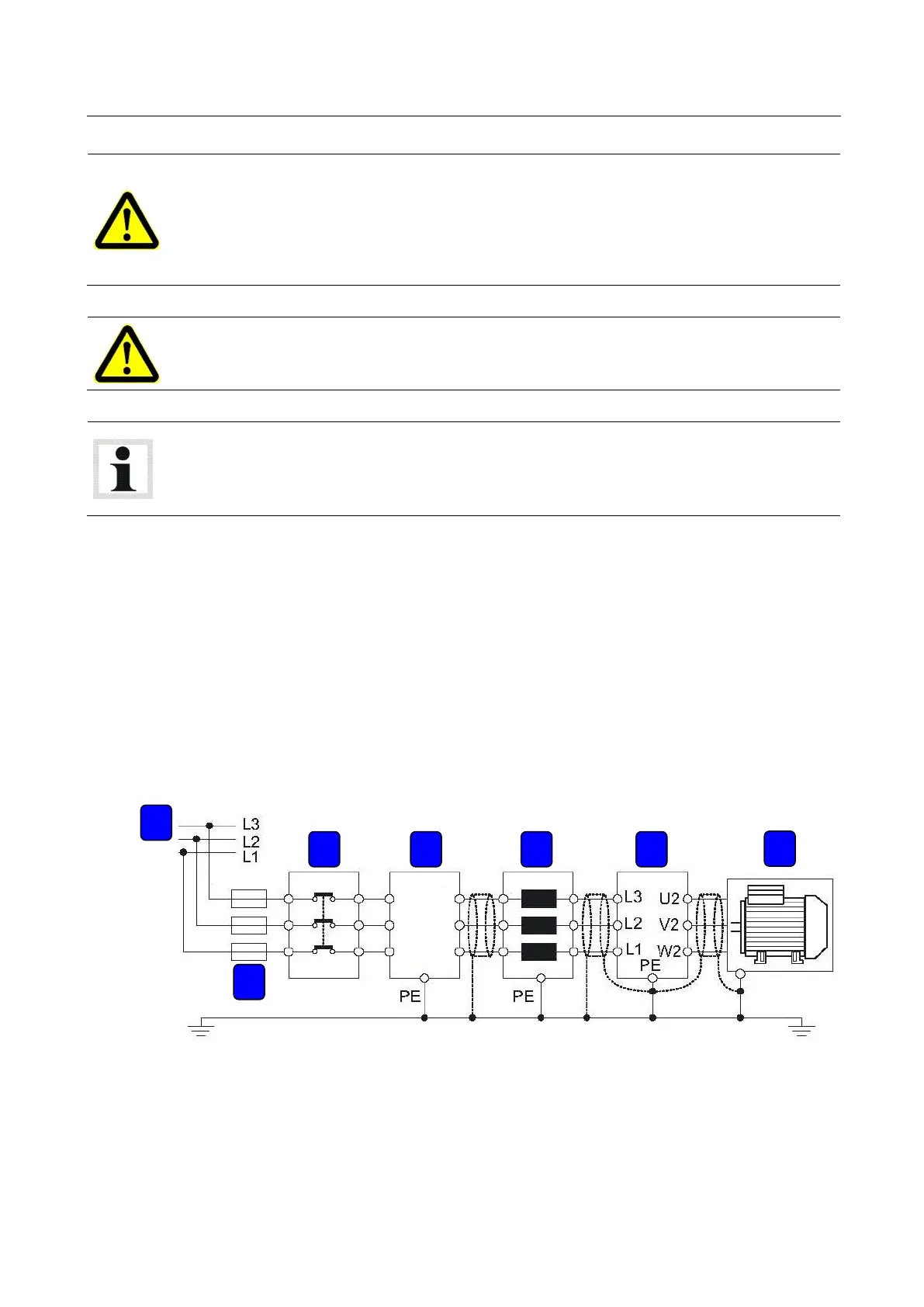

The mains connection for the SINAMICS Booksize drive assembly consists of a mains line filter and
a mains line choke:
Supply Line from MSR Desk
Mains Line Filter
Motor
Fuse
Mains Line Choke
Contactor
SINAMICS S120
