MAHA POWERDYNO MSR Series User Manual

25
BA053101-en
Pos: 82 /Techn ische Dokument ation/Alle Ger äte/Übersc hriften/Üb erschrifte n 1.1/H/Übers chrift 1.1: Haup tschalter @ 6\mod _11 77592 8583 12_75.d ocx @ 90 635 @ 2 @ 1
2.3
Main Switch
Pos: 83 / Techn ische Dokument ation/ Alle Ger äte/I nhalte/I nfo!/Inh alt: I nfo - Hauptschalter @ 23\mod_1298624423518_75.docx @ 979863 @ @ 1
The main switch is located at the side wall of the communication desk.
Pos: 84 / Techn ische Dokument ation/ Alle Ger äte/I nhalte/I nhalt: H aupts chalter v1 - A lle Geräte @ 23\mod_1298376098685_75.docx @ 978845 @ @ 1
• Main switch in position 0: Power supply OFF
• Main switch in position 1: Power supply ON
• When in position 0, the main switch can be protected against tampering
by means of a padlock.
Pos: 85 /Techn ische Dokument ation/Alle Ger äte/Übersc hriften/ Überschrifte n 1.1/B/Über schrift 1.1: Bed ien- und A nzeigeelem ente @ 23\mod_ 1296 2203 01443_ 75.do cx @ 9681 07 @ 2 @ 1
2.4

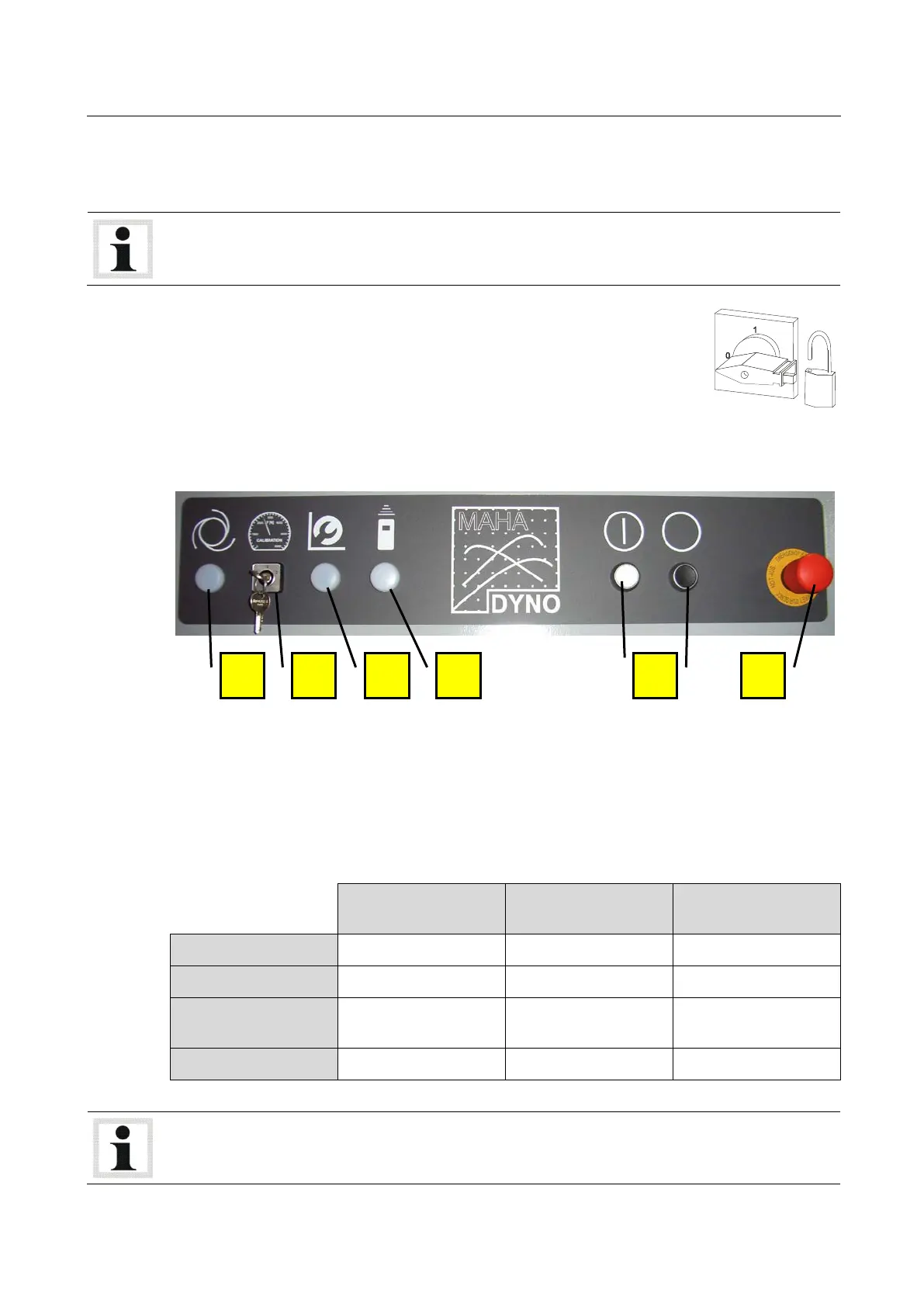

Controls and Indicators
Pos: 86 /Technische Dokumentation/Leistungsmesstechnik/POWERDYNO/053101 MSR/BA/Inhalt: 0531 Bedien- und A nzeige elemen te (B ild) @ 24\m od_1305638503474_0.docx @ 1007773 @ @ 1
Pos: 87 /----- Form at-----/ MAN UELLE R UMBR UCH Ze ilensc halt ung @ 7\m od_11 95138 96573 1_0.d ocx @ 1 32177 @ @ 1
Pos: 88 /----- Form at-----/ MAN UELLE R UMBR UCH Ze ilensc halt ung @ 7\m od_11 95138 96573 1_0.d ocx @ 1 32177 @ @ 1
Pos: 8 9 /Tec hn ische Dokum ent ation/ Leist ungs messtechnik/POWERDYNO/053101 MS R/BA/Inhalt: 0531 Bedien- und A nzeige elemen te (Tex t) @ 23\mod_1296549358503_75.docx @ 968523 @ @ 1
A
Operating Mode Selector Switch
D
OPERATION Indicator Lamp
B
Control ON/OFF
E
SETUP Indicator Lamp
C
EMERGENCY STOP
F
REMOTE CONTROL Indicator Lamp
Operating Modes
Position 1: OPERATI-
ON
Position 0: CALIBRA-
TION
Position 2:
SETUP
Locking Brake ON ON ON
Hydraulic System OFF OFF ON
Power Section of Eddy
Current Brake
ON OFF OFF
Motors/Converters ON OFF (Safety Stop) OFF (Safety Stop)
Each time the operating mode is changed, the control is disabled and must be re-enabled using
the Control ON button.
B C A D E F
