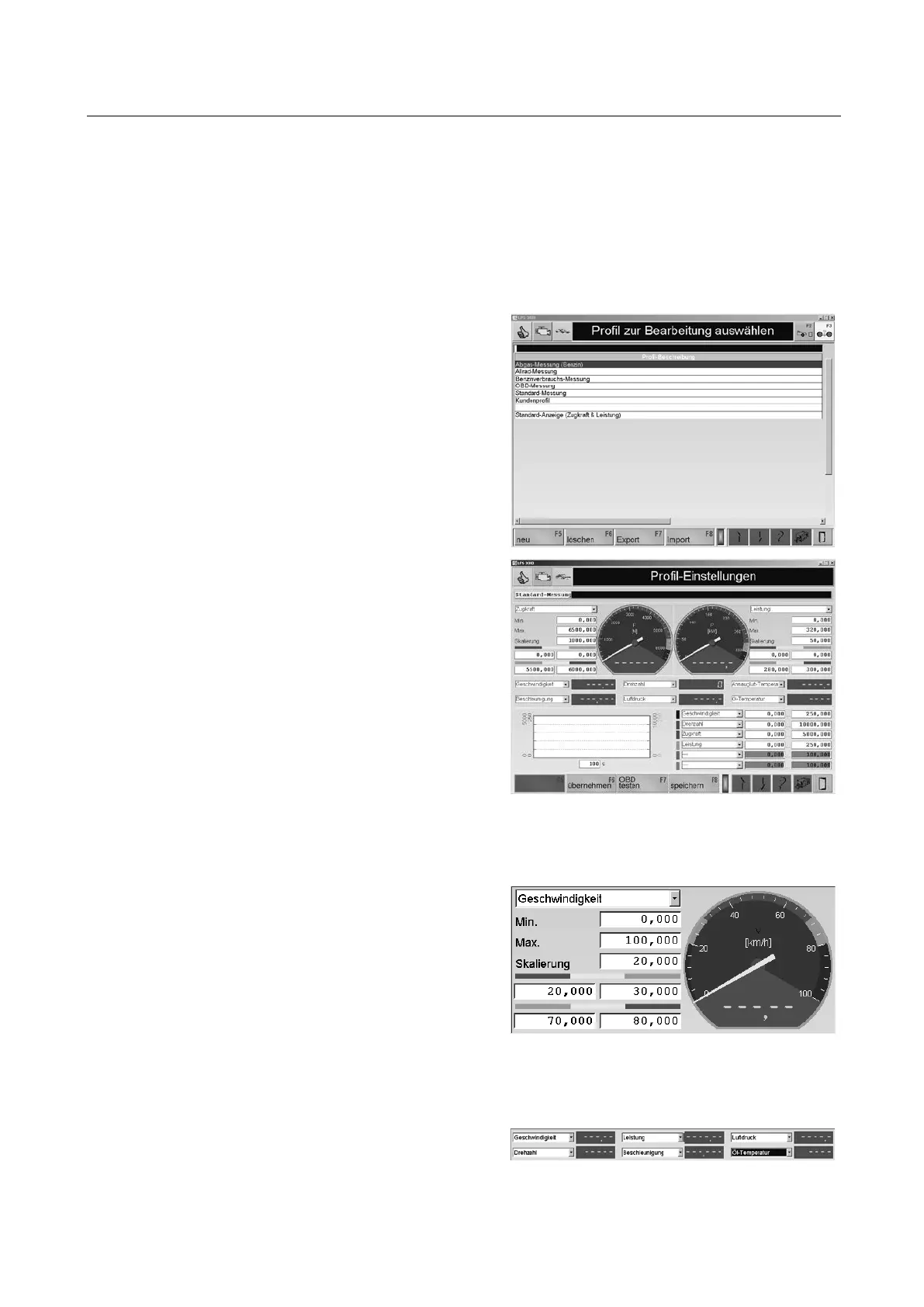

Using the menu point LOAD SIMULATION PROFILE the measurement screen and the print out
can be set for customer-specific needs.
1 Call up the menu DATABASE and then the
menu point LOAD SIMULATION PROFILE :
The database Browser appears.
2 Use the button <F5 NEW>.
The screen for the profile settings ap-
pears.
The profile setting screen is divided up into the
following areas:
PROFILE NAME
ANALOG DISPLAY
DIGITAL DISPLAY
PRINT OUT SETTING
Two analog displays are available.
1 Select the measurement values to be dis-
played from the list.
2 Enter the min. and max. values as well as the
scaling factor.
3 Enter the limit values for the green, yellow
and red ranges.
4 Use <F6 IMPORT> to display the settings.
There are six digital displays available.
1 Select the measurement values to be dis-
played from the list.
