With the operating mode
Constant Engine RPM
the dyno is regulated in such a way that the
engine RPM remains constant independent from the traction and speed created by the vehicle.
The pre-selected target value (n-target) is regulated independent from the traction created by the
vehicle up to the max. dyno motor capacity.
1 Position the vehicle on the dyno and fix it.
2 Call up the menu LOAD SIMULATION and
then the menu item CONSTANT ENGINE
RPM.

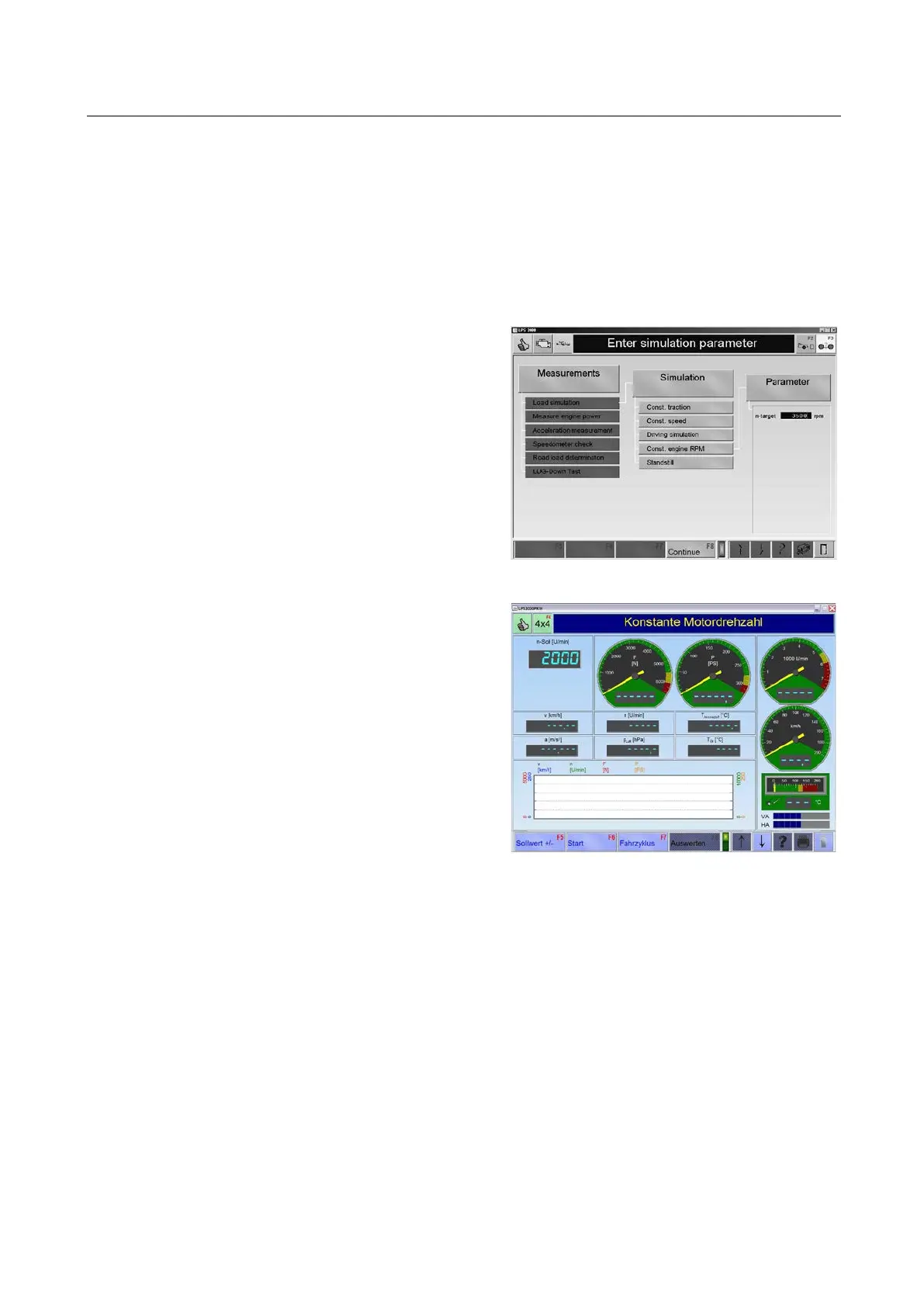

The following screen appears:
3 Enter the target value of the engine RPM
n-target
via the digit keys.
4 Use the button<F8 CONTINUE>.
The following screen appears
5 Start the measurement.
6 Use the button <F6> to start or stop the
graphic recording of the measurement.
Pos: 285 /Tech nische D okumen tation/A lle G eräte/ Überschr iften/Üb ers chrif ten 1 .1 .1/S/ Üb ers chr ift 1.1. 1: Stil lst and @ 13\m od_12 34778 0984 50_7 5.docx @ 33988 1 @ 3 @ 1
Pos: 286 /Te chnis che D okum ent ati on/ Leis tun gsm esst ech nik/ POWE R DYN O/0 523 01 LPS 3 000 R10 0/B A/I nhal t: 052 3 Sti lls tand @ 1 3\mod_1234778177914_75.docx @ 339 907 @ @ 1
This menu point activates the deceleration of the roller set with a defined torque of the eddy
current brake.
