V Roller speed
dv/dt Roller acceleration
g Gravitational acceleration
α Gradient angle (±)
(Coefficients A-D refer to a reference speed of 90 km/h.)
1 Position the vehicle on the dyno and fix it.
2 Open menu LOAD SIMULATION
and then menu item DRIVING
SIMULATION.

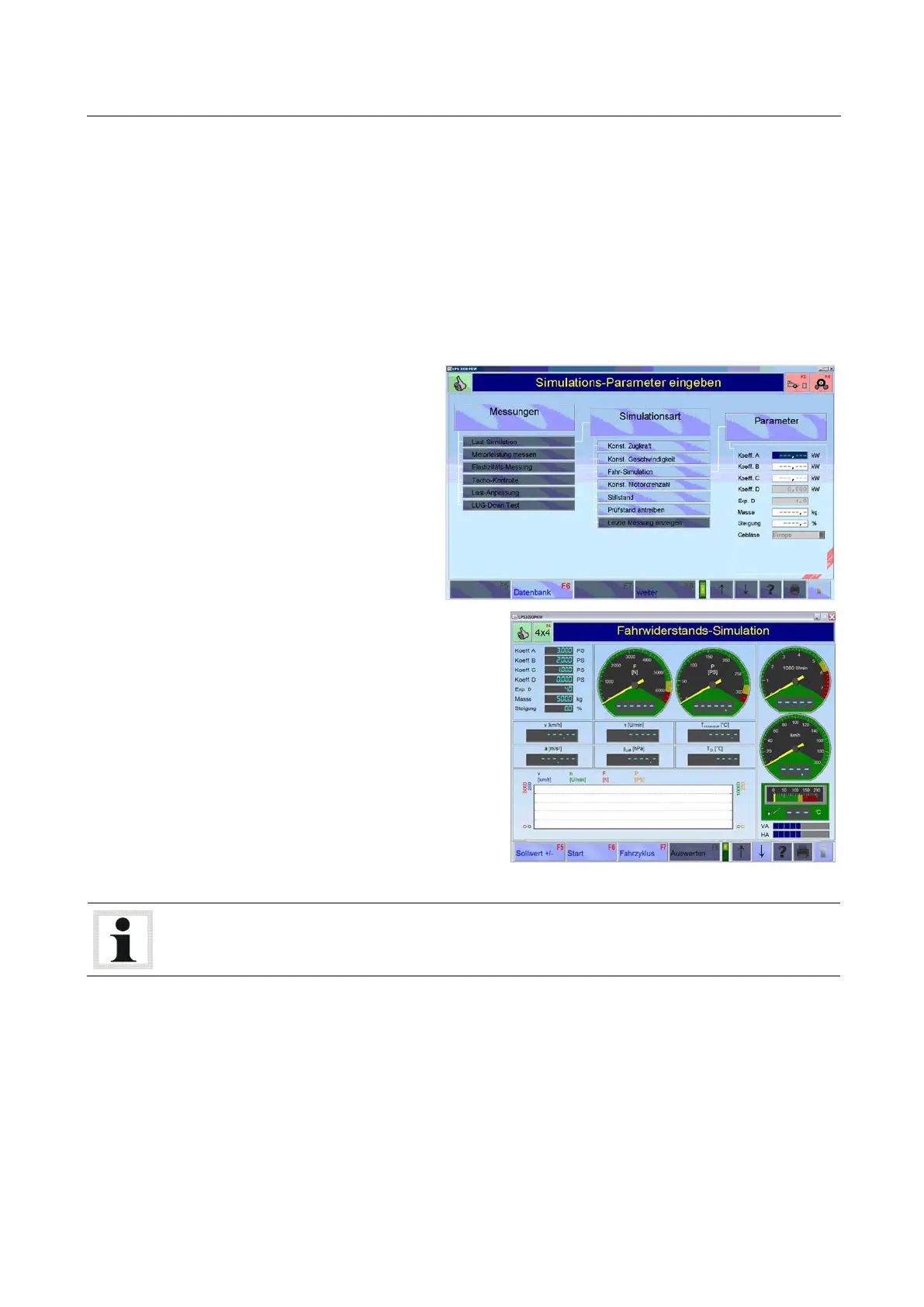

The following screen appears:
3 Enter the parameters using the
number keys or, if available, load
them from the database using <F6
DATABASE>.
4 Use button <F8 CONTINUE>.
The measurement screen appears.
5 Start the measurement.
6 Use switch button <F6> to start or stop the
graphic recording of the measurement.
Pos: 2 81 /Te chnis che Dok umen tation/ All e Ger äte/I nha lte/I nfo!/I nha lt: Inf o - Pr üfun g m it E-Ma schi nen @ 14\m od_ 1241679935876_75.docx @ 372261 @ @ 1
When testing with electric motors, accelerations of 1…1.2 m/s
2
are possible with a non-driven
axle. This corresponds with a mass of ca. 700 kg per axle.
