1 Position the vehicle on the test stand and fix it.
2 Call up the menu point SPEEDOMETER
CONTROL and then the menu point MILE-
AGE.

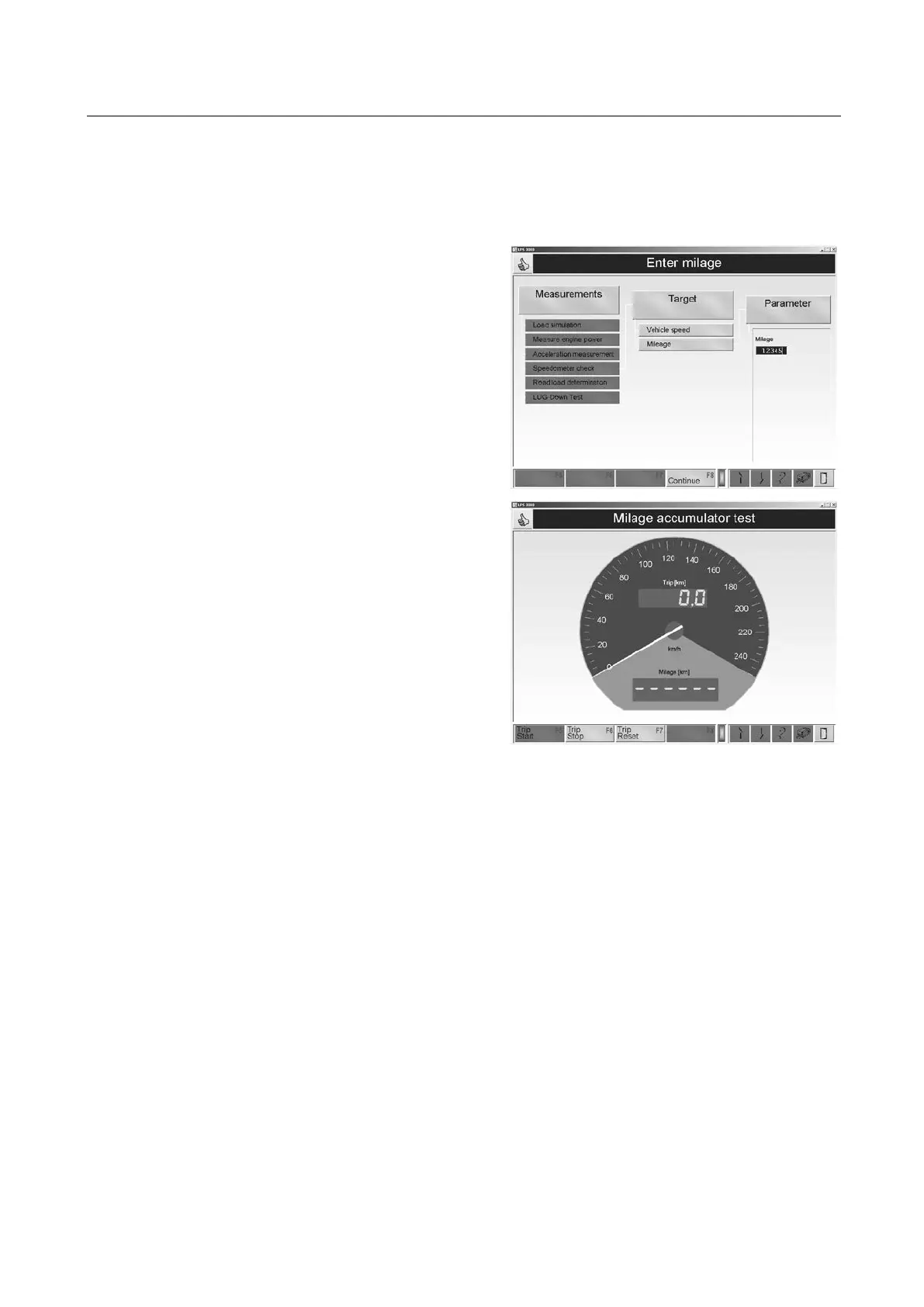

The following screen appears:
3 Enter the mileage in the box using the digit
keys.
4 Use the button <F8 CONTINUE>.
5 Drive a random distance with the vehicle on
the test stand and compare the values on
the vehicle display and on the monitor.
6 Use the button <F5 TRIP START> to start
the mileage counter test.
7 Use the button <F6 TRIP STOP> to Stopp
the mileage counter test.
8 Use the button <F7 TRIP RESET> to reset
the mileage counter to zero.
9 Use <ESC> to end the mileage counter test.
Pos: 311 /Te chnische Dok umenta tion/All e Geräte/ Über schrifte n/Über schrif ten 1.1/ L/Übers chrift 1.1: L astanpas sun g (Opti on) @ 1 3\mod _123 48507 83377_ 75.d ocx @ 34 0401 @ 2 @ 1
Pos: 312 /Tech nische D okumen tation/ Leistu ngsmess techni k/POWE RDYNO /052301 LPS 3000 R100/BA/Inhalt: 0523 Lastanpassung (Option) @ 13\mod_1234851085391_75.docx @ 340427 @ @ 1
Use this menu point to do various adaptions; e.g. dyno coefficients can be determined here. The
iterative coefficient adaption can be done based on the following standards, whereby the vehicle
must be defined in the vehicle database before doing the adaption.
After the menu point LOAD ADAPTION the following function selection appears:
• ECE
• SAE J2264
