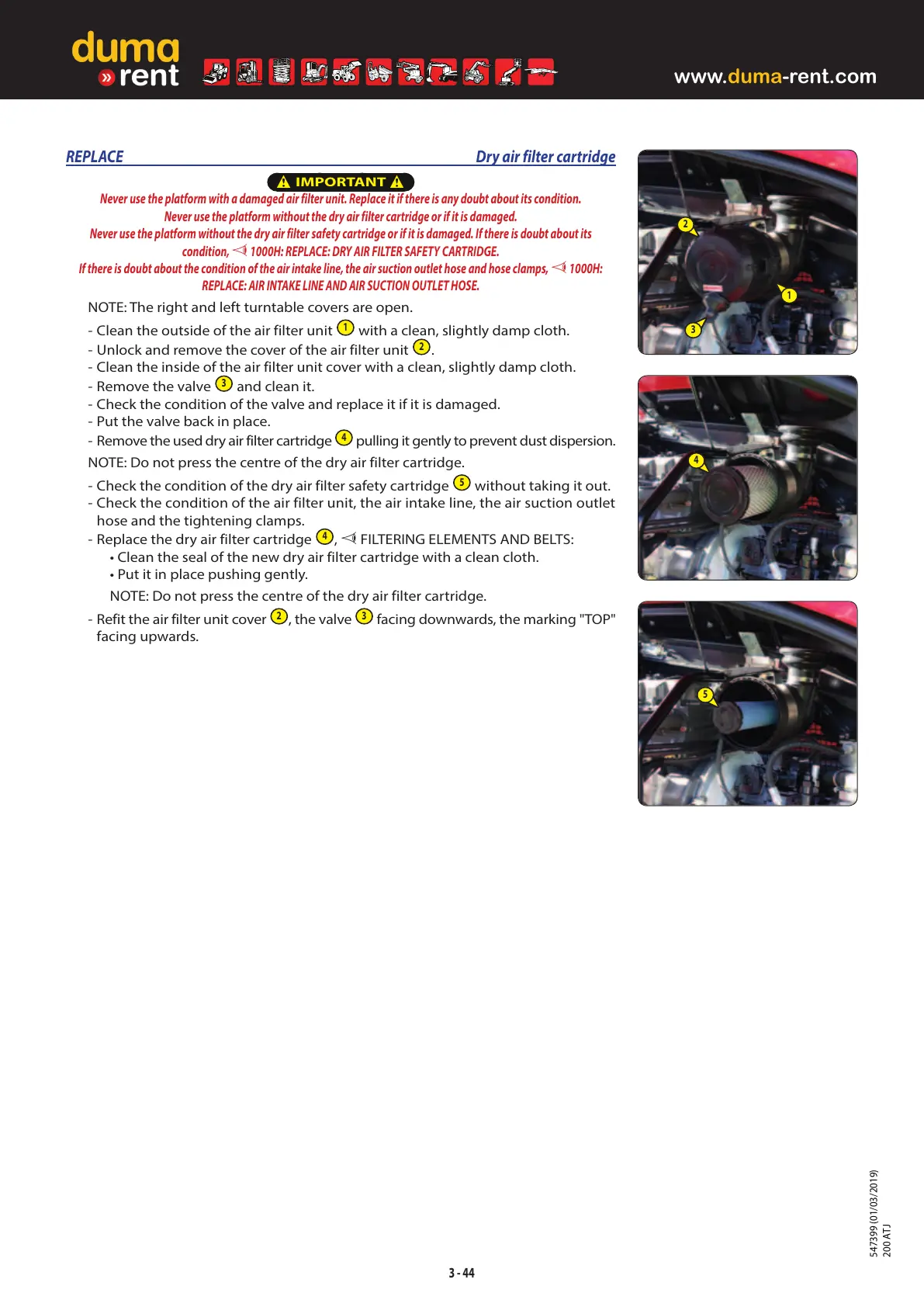

REPLACE Dry air filter cartridge
IMPORTANT
Never use the platform with a damaged air filter unit. Replace it if there is any doubt about its condition.
Never use the platform without the dry air filter cartridge or if it is damaged.
Never use the platform without the dry air filter safety cartridge or if it is damaged. If there is doubt about its
condition,
1000H: REPLACE: DRY AIR FILTER SAFETY CARTRIDGE.
If there is doubt about the condition of the air intake line, the air suction outlet hose and hose clamps,
1000H:
REPLACE: AIR INTAKE LINE AND AIR SUCTION OUTLET HOSE.
NOTE: The right and left turntable covers are open.
- Clean the outside of the air filter unit
1
with a clean, slightly damp cloth.
- Unlock and remove the cover of the air filter unit
2
.
- Clean the inside of the air filter unit cover with a clean, slightly damp cloth.
- Remove the valve
3
and clean it.
- Check the condition of the valve and replace it if it is damaged.
- Put the valve back in place.
- Remove the used dry air filter cartridge
4
pulling it gently to prevent dust dispersion.
NOTE: Do not press the centre of the dry air filter cartridge.
- Check the condition of the dry air filter safety cartridge
5
without taking it out.
- Check the condition of the air filter unit, the air intake line, the air suction outlet
hose and the tightening clamps.
- Replace the dry air filter cartridge
4
, FILTERING ELEMENTS AND BELTS:
• Clean the seal of the new dry air filter cartridge with a clean cloth.
• Put it in place pushing gently.
NOTE: Do not press the centre of the dry air filter cartridge.
- Refit the air filter unit cover
2
, the valve
3
facing downwards, the marking "TOP"
facing upwards.
