Manitou 200 ATJ

To Next Page

To Previous Page

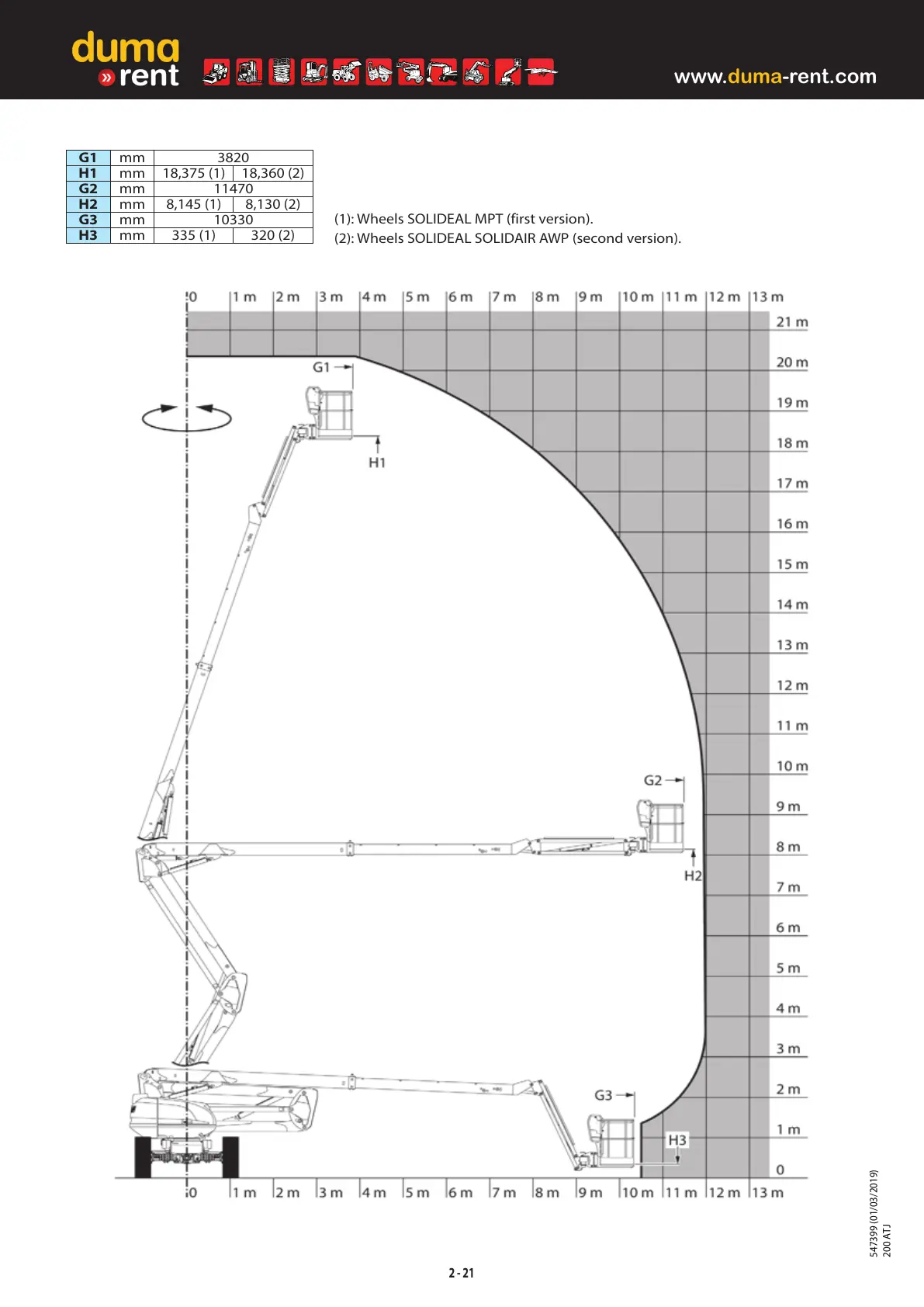

2 - 21

G1 mm 3820

H1 mm 18,375 (1) 18,360 (2)

G2 mm 11470

H2 mm 8,145 (1) 8,130 (2)

G3 mm 10330

H3 mm 335 (1) 320 (2)

(1): Wheels SOLIDEALMPT (first version).

(2): Wheels SOLIDEALSOLIDAIRAWP (second version).

547399 (01/03/2019)

200 ATJ

www.duma-rent.com
