GROVE 7-41
CD3340B/YB4411 TRANSMISSION AND TORQUE CONVERTER
Published 04/07/2015 Control # 569-00

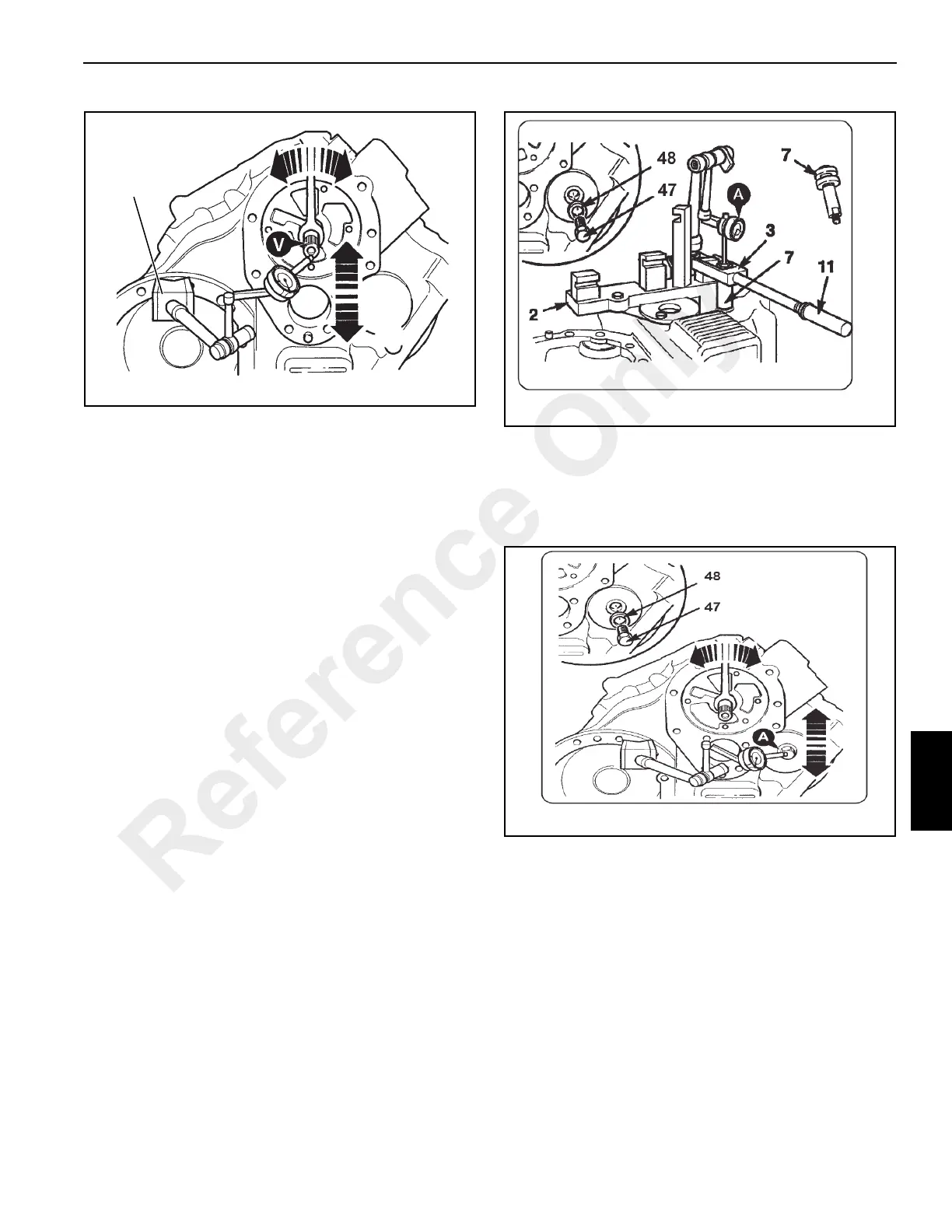

10. Measure the end play of the forward shaft using the end
play checking kit (See Figure 7-21).
NOTE: Numbers in Figure 7-47 correspond with numbers
in Figure 7-21.
a. Remove plug (47, Figure 7-47) and sealing washer
(48) from the transmission casing. Discard washer
(48).
b. Select adapter 7 from the kit and screw into the
tapped hole in the reverser shaft.
c. Mount base plate 2 onto the transmission casing
and locate yoke 3 and wrench 11 into adapter 7. Set
wrench to 35 Nm (27 lb-ft).
d. Using a magnetic block, mount the dial test indicator
(DTI) A with the probe on the head of adapter 7 and
adjust to read zero.
e. While rotating the forward shaft back and forth,
using the spline wrench B to seat the bearings, lift
and depress wrench 11 and note the reading on the
DTI.
f. Remove wrench 11 and base plate 2 from the
transmission casing.
g. Calculate the required thickness of shims to give the
correct end play, which should be 0.03 - 0.08 mm
(0.001 - 0.003 in).
11. If the end play checking kit is not available, use the
following procedure:
a. Remove plug (47, Figure 7-48) and sealing washer
48 from the transmission casing. Discard washer
48.
b. Protect the input shaft with a metal sleeve and
clamp vice grips into position on the shaft.
c. Screw a suitable M10 bolt A into the tapped hole in
the end of the forward clutch shaft. Set up a dial test
indicator (DTI) as shown at C and rotate the shaft to
seat the bearing fully using the vice grips on the
input shaft. With a lever under the bolt head, move
the shaft back and forth and measure the end play
(The end play should be set as near as possible to
the minimum tolerance). Remove the DTI and vice
grips from the transmission. Keep the bolt in the
reverser shaft.
