2. Place the planetary carrier on a workbench.
Install the epicyclic planetary gears onto the planetary
pins (Figure 8-131). Then install the rollers inside the
planetary gears.
Install the washers.
Install the retaining rings with a suitable pliers, to secure
the gears.
3. Install a new O-ring on the planetary carrier
(Figure 8-132).
Position the epicyclic planetary gear assembly on the
wheel hub.
Install the mounting screws and tighten to a torque of 25
Nm (18 lb-ft).
Flange Assembly
1. Install seal ring (A, Figure 8-133) in the center housing
with SPECIAL TOOL P/N 1901779 and a hammer.
Insert washer (B) onto the splined pinion end. Install
new O-ring (C) and flange (D). Secure the assembly with
retaining ring (E).
Steering Cylinder
1. Install the tie rods to the ends of the cylinder rod
(Figure 8-134) and tighten to a torque of 300 Nm (221 lb-
ft).
Position the steering cylinder through the mounting
flanges of the center housing with the tie rods attached.
Install the three mounting screws and tighten to a torque
of 120 Nm (88 lb-ft).

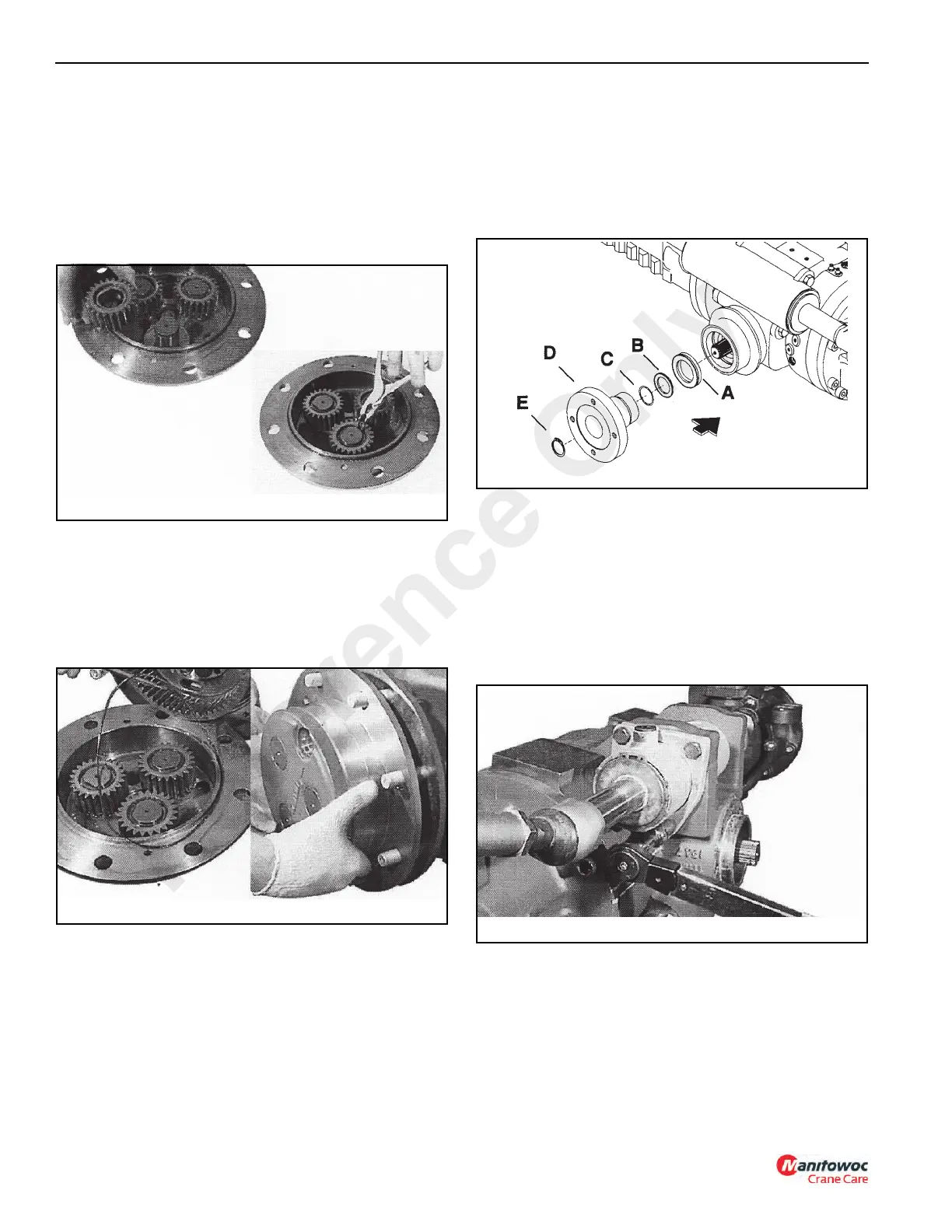

FIGURE 8-131
P0654
FIGURE 8-132
P0655
FIGURE 8-133
A0721
FIGURE 8-134
P0656
