Maintenance work on the carrier
7.6 Transmission
16.11.2018
Maintenance manual 3 302 756 en 7 - 47
GMK6400
Changing the
oil
filter
The oil filter is only present in transmissions with an Intarder.
Transmissions without an Intarder do not have an oil filter.

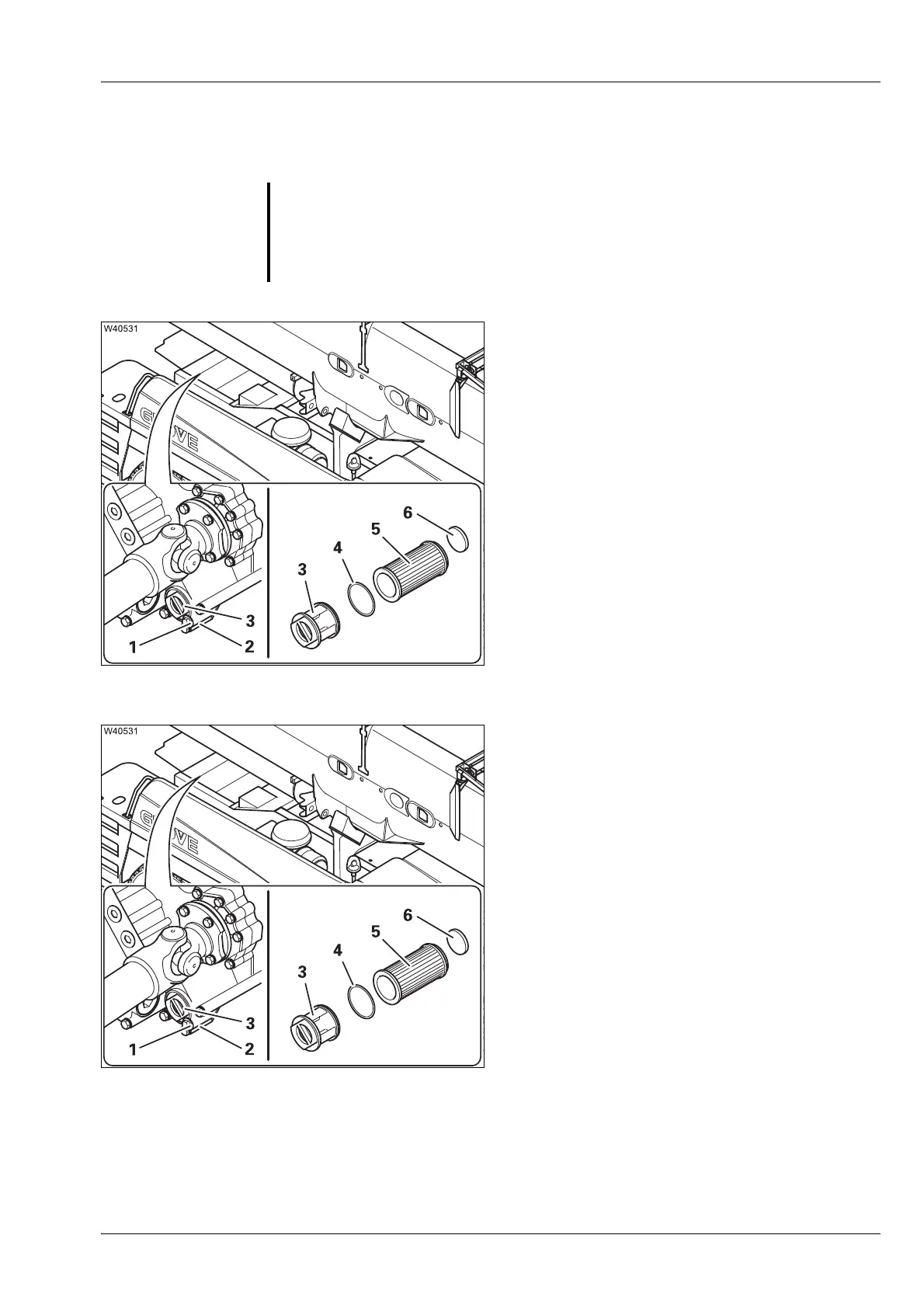

• Place a receptacle under the Intarder oil
filter
(3).
• Remove the screw (1) and the washer (2).
• Pull out the cover (3) together with the
filter
(5).
• Remove the cover (3) and the magnet (6)
from the filter (5).
• Place the filter in a receptacle.
• Clean all parts.
• Replace the gasket (4).
• Fit the cover (3) onto the new filter (5).
• Fit the magnet (6) onto the new filter (5).
• Fit the fully assembled Filter into the
housing.
• Secure the cover (3) with the washer (2)
and
tighten the bolt (1) – torque 23 Nm
(16.9
lbf ft).
s
S
Risk of damage to the transmission!
Clogged oil filters can damage transmissions with an Intarder. You must fit
a new oil filter at each oil change.
