SECTION 2 • HUMAN-MACHINE INTERFACE
GENERAL
The DVR2000E human-machine interface (HMI) consists of front panel controls and indicators and a rear panel
communication port.
FRONT PANEL CONTROLS AND INDICATORS
DVR2000E front panel controls and indicators consist of 12 red LEDs and three pushbuttons. Figure 2-1 illustrates
the front panel controls and indicators of the DVR2000E. The LEDs indicate control mode and status conditions
and are also used when adjusting settings at the front panel.

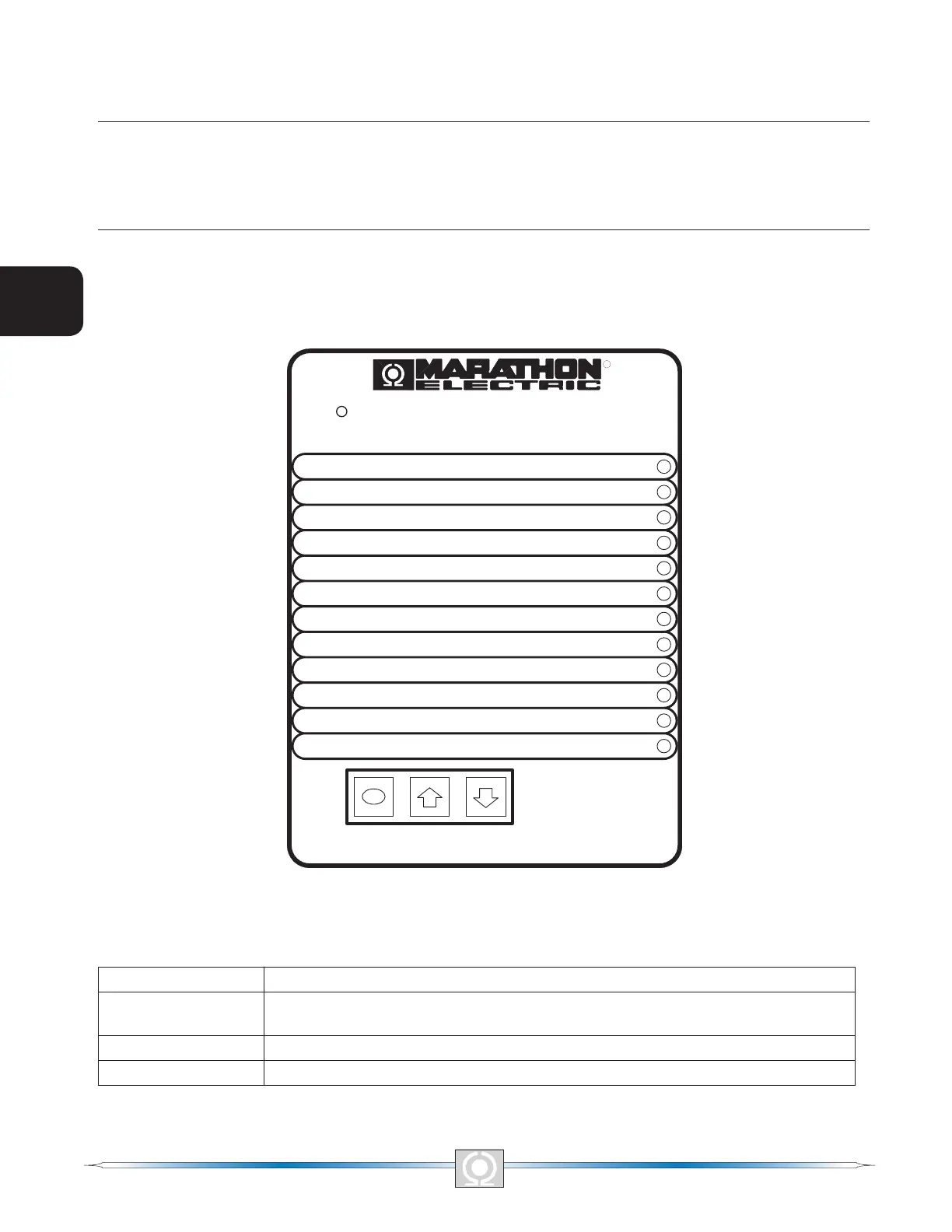

Figure 2-1. DRV2000E Front Panel Indicators
Table 2-1. DVR2000E Front Panel Control Descriptions
Control Description
SELECT
This pushbutton selects a function for adjustment. Successive presses of the
SELECT pushbutton scrolls through the list of DVR2000E functions to be adjusted.
UP This pushbutton increases the setting level of the function being adjusted.
DOWN This pushbutton decreases the setting level of the function being adjusted.
