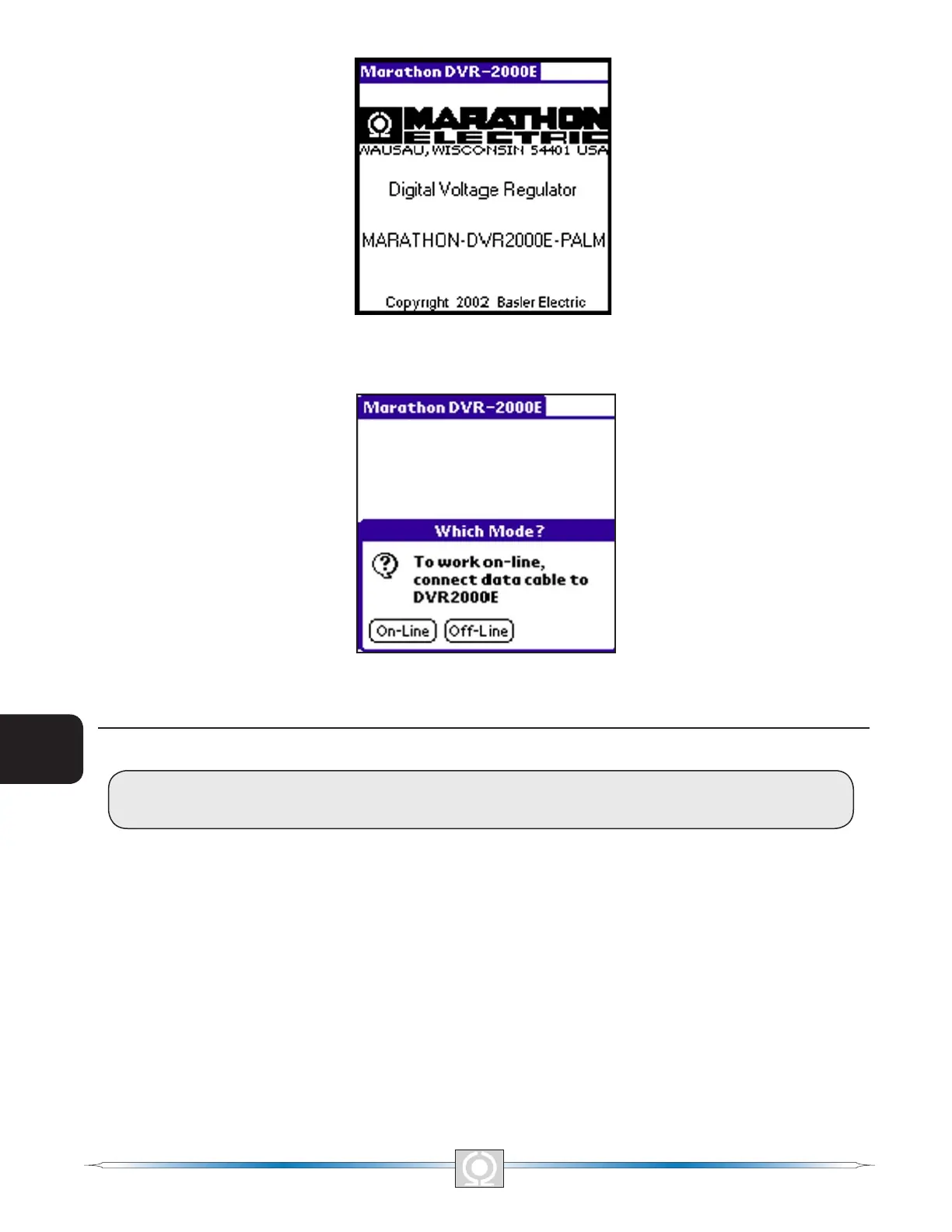

Figure 6-9. Software Startup Screen
Figure 6-10. Which Mode Screen
INITIAL ADJUSTMENTS
CAUTION
Read and understand the operation of the individual adjustments before attempting any initial adjustments.
Before starting the generator, the procedures in the following paragraphs should be performed.
Remove the 5 ampere fuse before starting the generator for the rst time. Perform all preliminary engine governor
adjustments without the regulator energized.
After initial governor adjustments are complete, reinstall the 5 ampere fuse and connect only the power input
leads or PMG leads to the regulator. Remove all other regulator connections that may be present and temporarily
insulate them.
Start and run the generator at rated speed. The regulator will perform the self-test and enter a shutdown mode. At
this time, initial adjustments can be made.
After the initial adjustments are made, shut down the generator and connect the remaining regulator leads. The
generator may be started and nal adjustments may be performed on the regulator.
