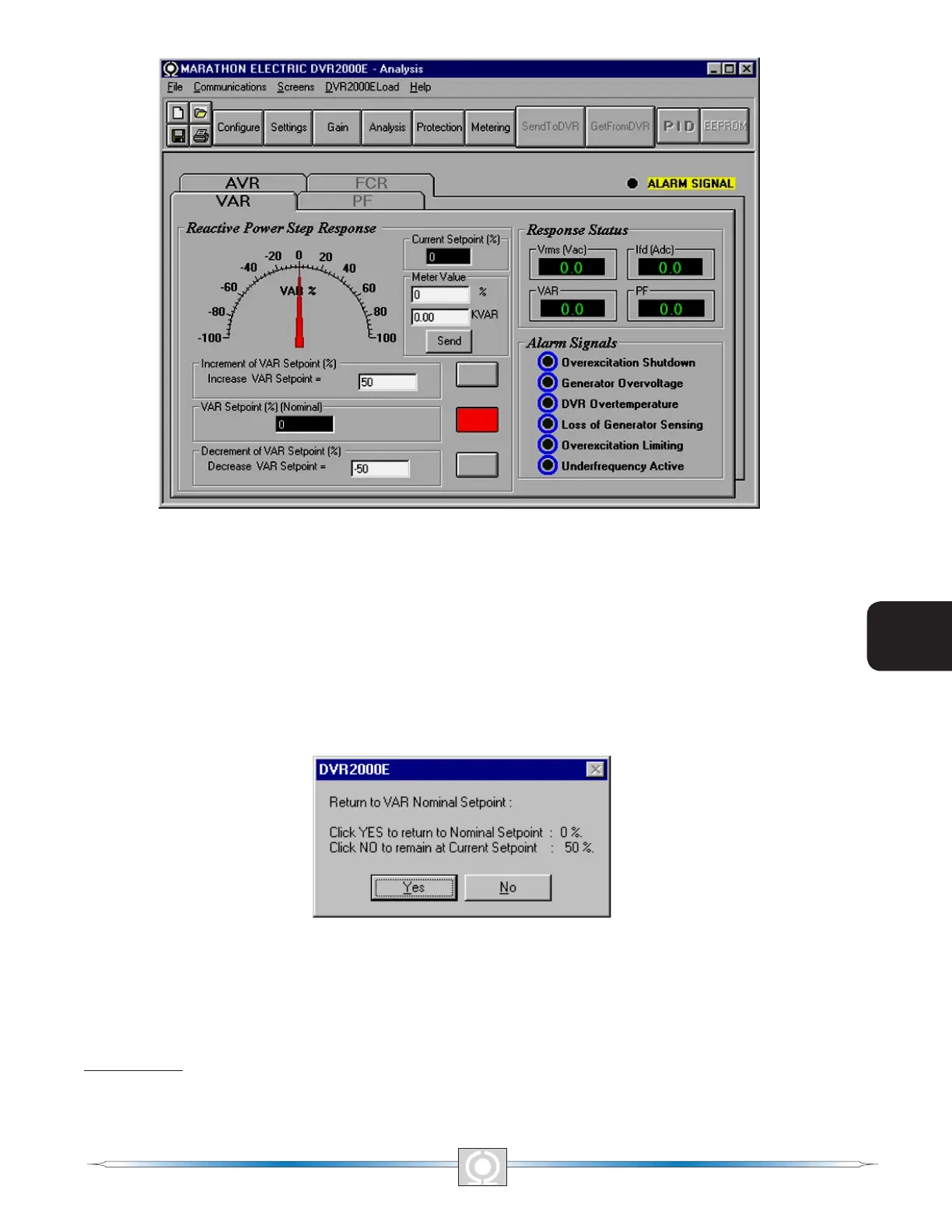

Figure 5-19. Analysis Screen, VAR Tab
VAR Step Response - Meter. The meter in the VAR tab shows the value selected. If an VAR setpoint value is
sent by increase, decrease or setpoint button the meter shows the corresponding value and meter value text box
also displays it. Any value within the range can either be input to meter value text box or selected by dragging the
pointer in the meter using mouse. This value can then be sent to the unit by pressing Send button.
The setpoint value currently set in the unit by any of the above methods is displayed in the current setpoint textbox.
To return to the nominal setting the button adjacent to VAR Setpoint (Nominal) should be pressed. If the VAR
analysis screen is left without returning to nominal setpoint a message box is shown which allows the user to
return to nominal setpoint by pressing YES or remain at the current setpoint by pressing NO.
Figure 5-20. Message box to return to VAR Nominal Setpoint
Protection and Relay Settings
The Protection and Relay Settings screen consists of one tab labeled Protection. Click the Protection button to
access the Protection screen or click Screens on the menu bar and click Protection/Relay.
Protection Tab
Protection settings are shown in Figure 5-21 and are described in the following paragraphs.
