Marathon DVR 2000E - Page 36

S
ection
4
S
ection
4

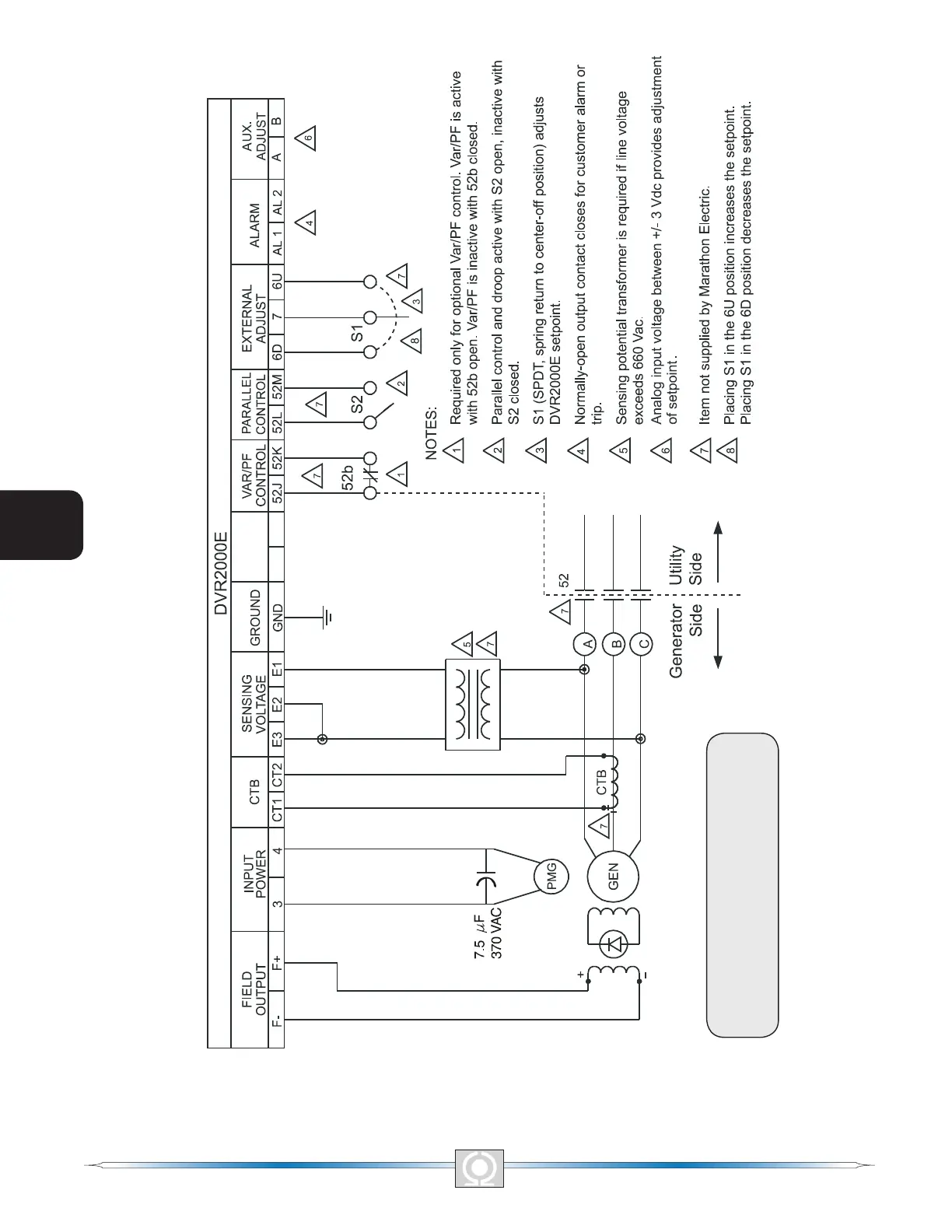

Figure 4-7. Typical Connections with ABC Rotation and Single-Phase Sensing
Caution
The DVR2000E CT connections
are reversed from the DVR2000
34
