Chapter 4 EI system diagnosis Section 4 EI system troubleshooting
4—35

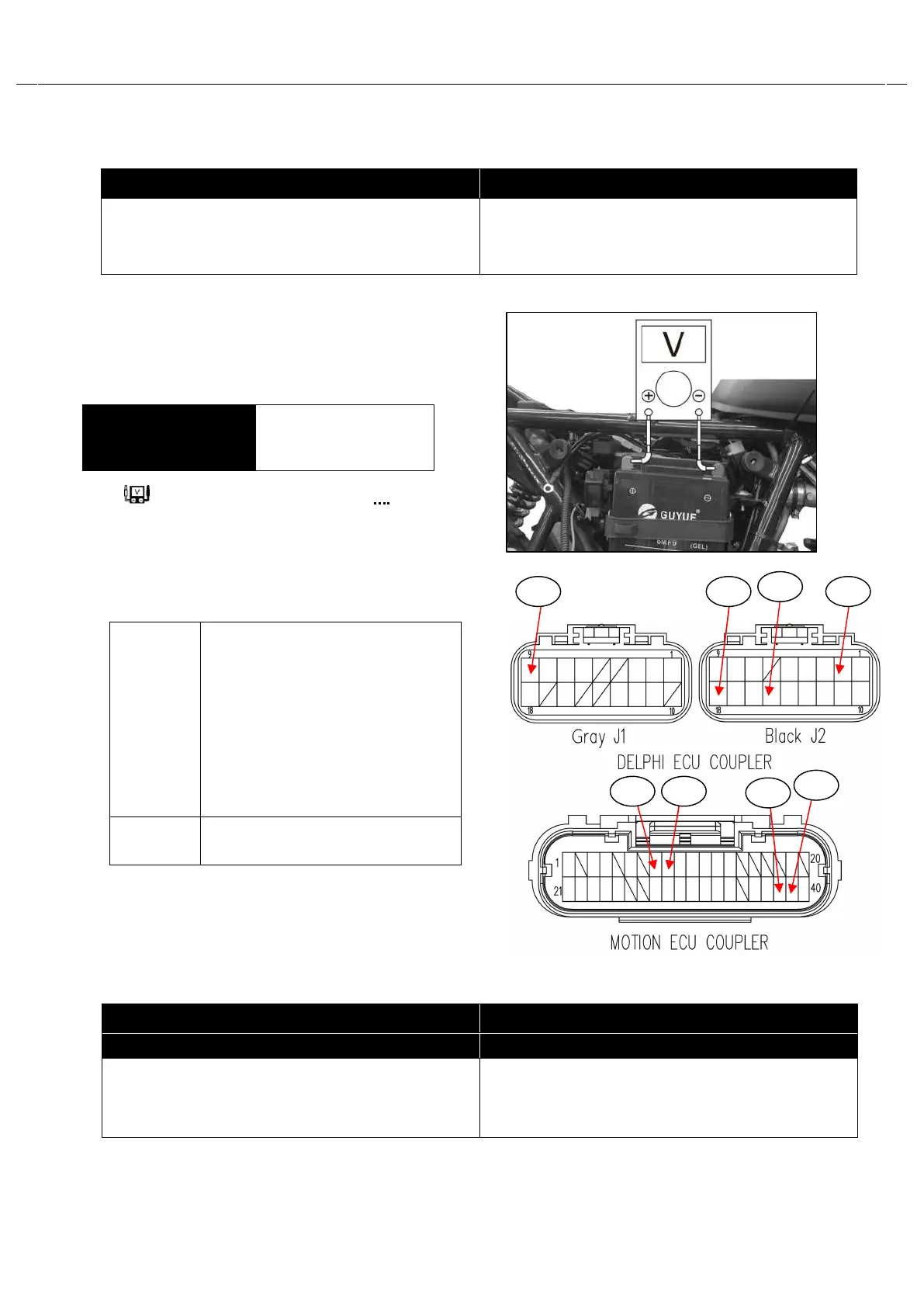

“P0562” or “P0563” BATTERY VOLTAGE MALFUNCTION
DETECTED CONDITION POSSIBLE CAUSE
☞
To read the flash code,with the EFI diagnostic
instrument
● Batteryvoltagecircuitopenandshort.
● Batterymalfunction.
● ECUmalfunction.
 INSPECTION
1) Remove the seat.
2) Turn the ignition switch to the “OFF”position.
3) Usingthepockettester,measuretheDCvoltage
betweenthebattery
⊕
and

terminal.
Tester knob indication:Voltage(—)
Is the battery voltage OK?
“P0601” ECU FAULT
DETECTED CONDITION POSSIBLE CAUSE
☞
To read the flash code,with the EFI diagnostic
instrument
● ECU error
YES
● O/W, G, G or R/O wire open or
shorted to ground, or poor
B15(J2-15) , G9(J1-9) ,B2 (J2-2)or
B18(J2-18) connection of ECU
coupler.
● If wire and connection areOK,
Intermittenttrouble or faulty ECU.
● Recheck each terminal and wire
harness for open circuit andpoor
connection.
NO
Replace the battery with a new one.
11 ~ 16 V
Battery voltage
G9
99
G9 B18
B15
B2
B2
99
B15
99
B18
99
