Chapter 3 Engine Section 3 Engine dissassembly
3—9
Section 3 Engine disassembly

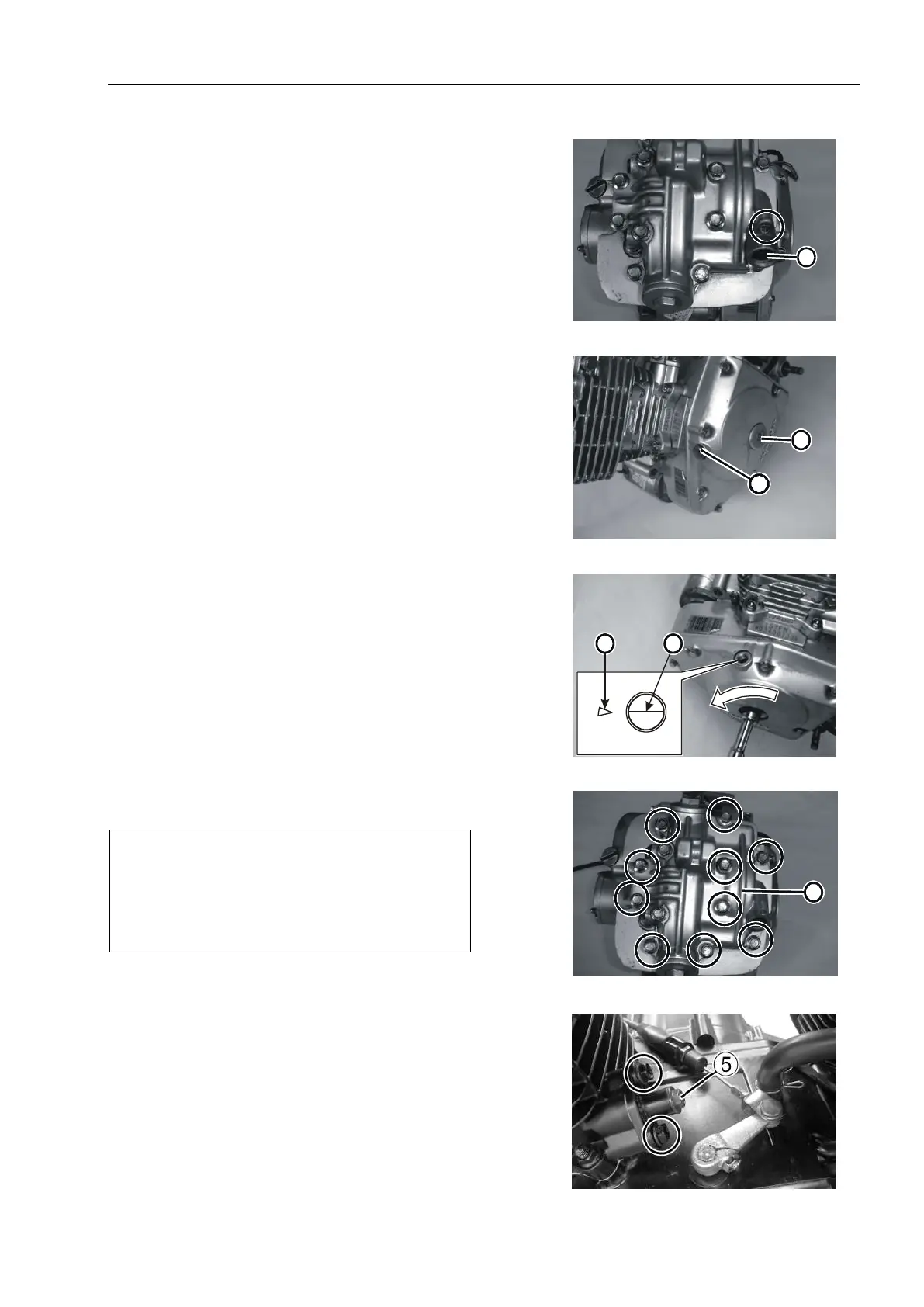

The steps for disassembling the engine are described in
order as follows:
Remove the Connecting sleeve and the Tachometer gear . ①
As shown in Figure 3.3.1.
Remove the observation hole plug① and the magneto
cap ②,as in Fig.3.3.2
Align the A line on the magneto rotor with the B
mark on the engine cover and the piston is at the
top dead center position.
As in Fig. 3.3.3
Remove the cylinder head cover④..
Note：
If the cylinder head cover cannot be removed, a
plastic hammer can be used to gently tap the
part without the heat sink to loosen the
connection.
As in Fig.3.3.4
Remove chain tensioning device⑤..
As in Fig.3.3.5
..
Fig.3.3.1
1
Fig.3.3.2
2
3
Fig.3.3.3
B
A
Fig.3.3.4
4
Fig.3.3.5
