Chapter 3 Engine Section 5 Engine reassembly
3—43

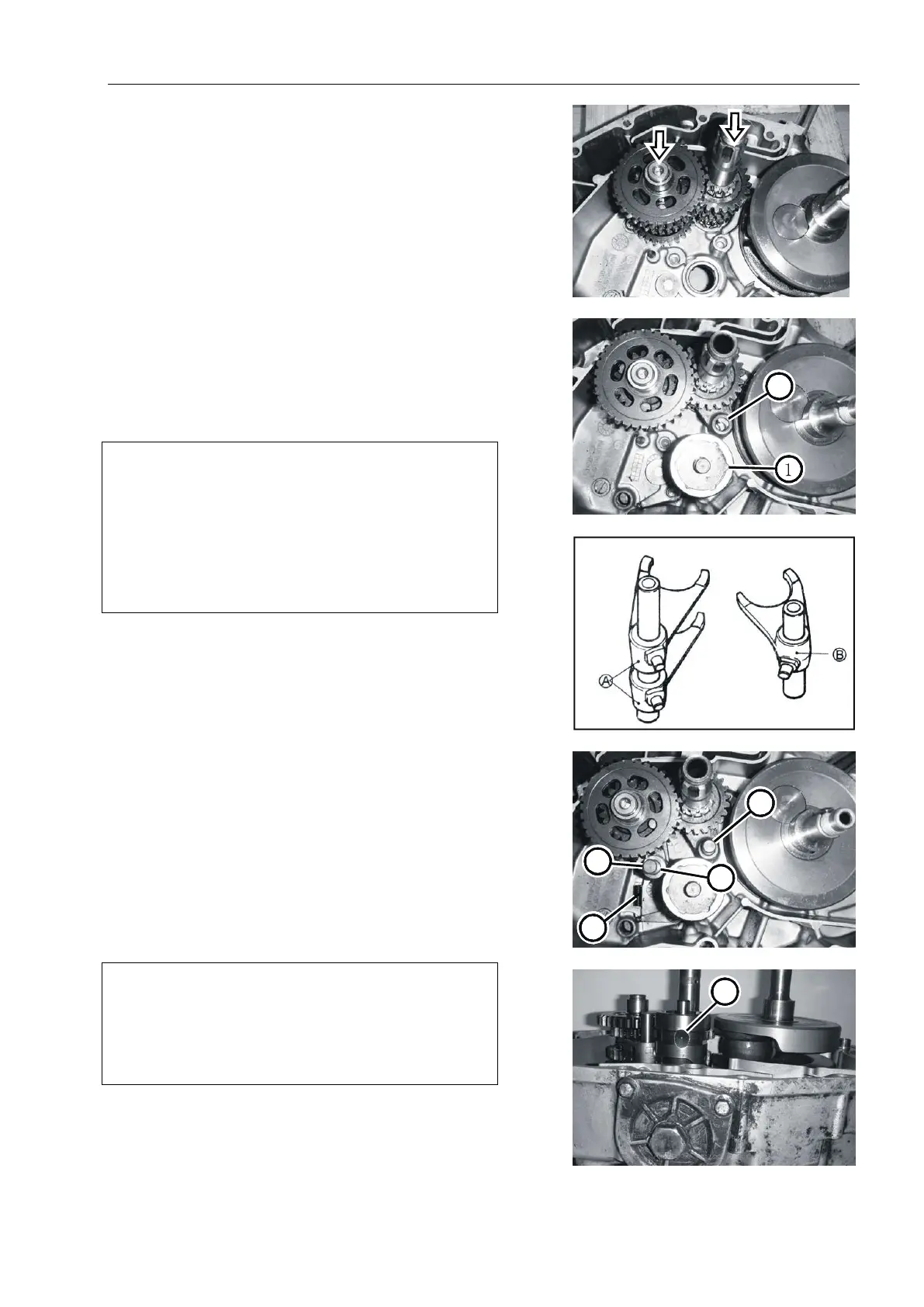

Install the transmission.
As in Fig.3.5.6
Install shift CAM and shift fork B.①
As in Fig.3.5.7
Install shifting fork A and shifting fork shaft and ②
.③
Hang the tension spring .④
As in Fig.3.5.9
Fig.3.5.6
Fig.3.5.7
B
Fig.3.5.8
Fig.3.5.9
4
A
3
2
Fig.3.5.10
5
Note:
Use two shift forks A and B.
They have to be fitted very close to each other in
appearance and configuration.
Make sure the installation position and orientation
are correct.
As in Fig.3.5.8
Note:
Position the shift CAM neutral positioning hole ⑤
according to the picture, so that the shift fork can be
easily installed.
As in Fig.3.5.10
