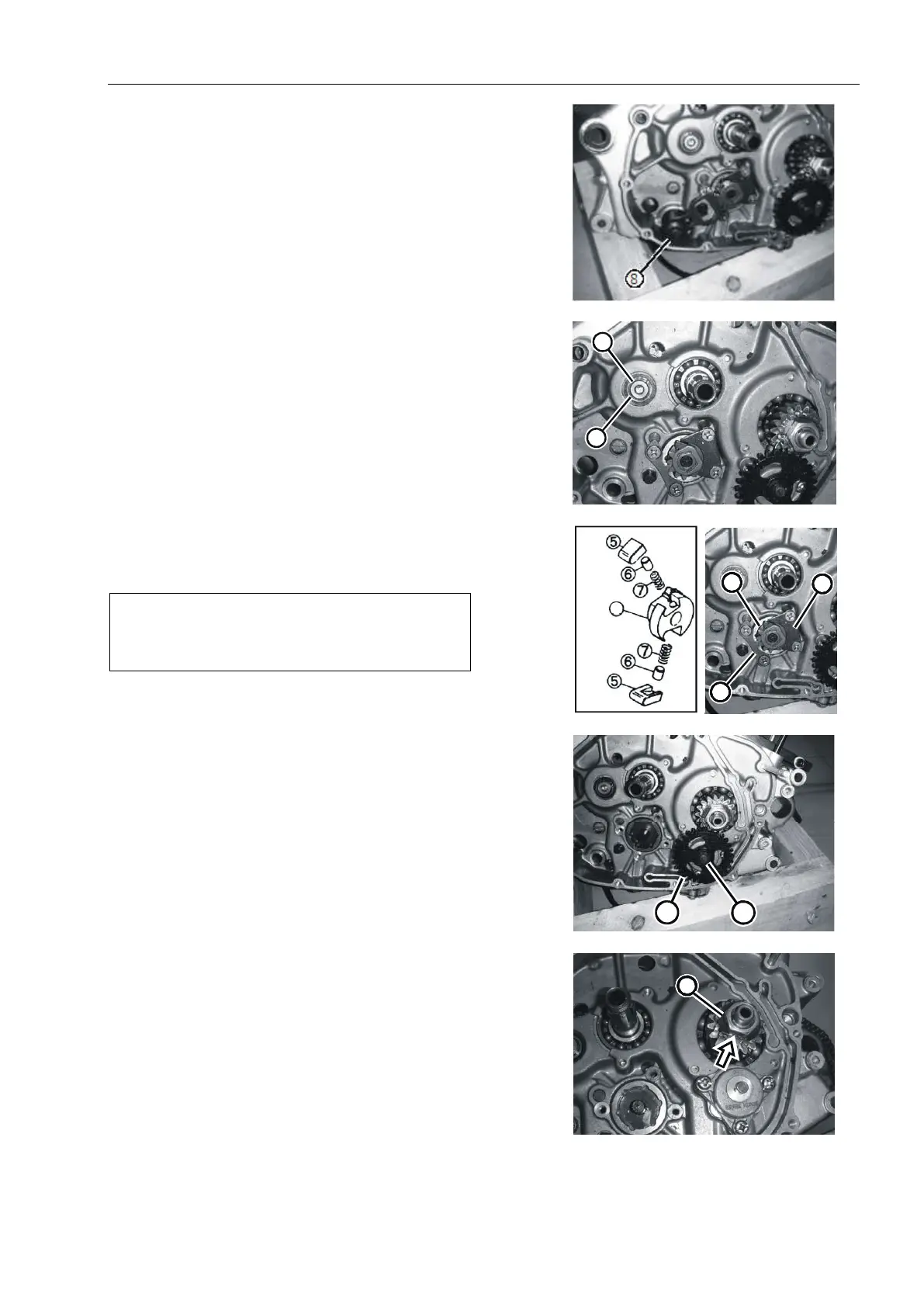

Remove the shift shaft⑧..
As in Fig.3.3.26
Remove the elastic ring①and cushion②..
As in Fig.3.3.27
Remove countersunk head screws and CAM baffle ③
and CAM retainer .⑤
Dismount shift CAM driven tooth block combination
.④
As in Fig.3.3.28
Note:
When taking off the CAM from the driving
wheel, do not loosen the clip, pin and spring
Remove the ring and oil pump gear⑦ ⑥
As in Fig.3.3.29
Leveling primary drive gear nut lock washer ⑧
As in Fig.3.3.30
