Section 2 Special tools
Special tools

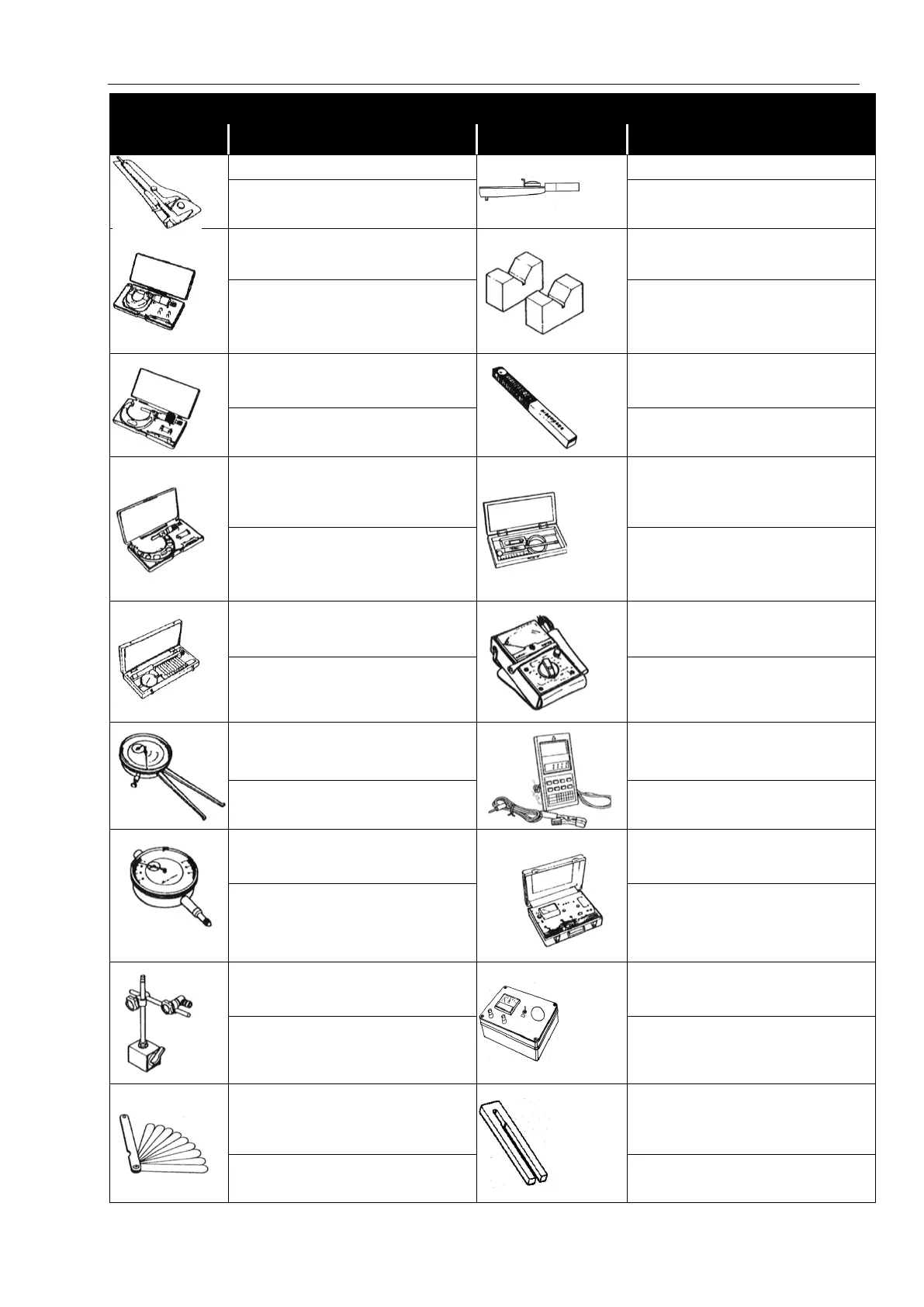

PartNumber ∙ PartName ∙ Description
Special tools
PartNumber ∙ PartName ∙ Description
09900-20101VernierCaliper 09900-21109Torque wrench
Used to conveniently measure
various dimensions.
Measure torque of tightening.
09900-20201
Micrometer(0~25mm)（0
〜
25mm）
09900-21304
V-blockV
Used for precise measurement
(00~25mm measure ranges).（00
〜
25mm）
With using magnetic stand.
09900-20202
Micrometer(25~50mm)
09900-22301
Plastigauge
Used for precise measurement
(25~50mmmeasure ranges)
Measure clearance of crankshaft
thrust.
09900-20203
Micrometer(50~75mm)
09900-22401
Small bore gauge
Used for
precise measurement
(50~75mm measure ranges).（50
〜
75mm）
Measure inside diameter of conrod
small-end.
09900-20508
Cylinder gauge set
09900-25002
Pocket tester
Measure inside diameter of cylinder.
Measure voltage, electric current,
resistance
09900-20605
Dial calipers
09900-26006
Engine tachometer
Meassurewidthofconrodbig-end.
Measure rotational frequency of
engine.
09900-20606
Dial gauge
09900-28107
Electro tester
Meassure oscillation of wheel with
usingmagnetic stand
Inspect ignition coil.
09900-20701
Magnetic stand
09900-28500
Battery charger
With using dial gauge. Used to charge the dischared battery.
09900-20806
Thickness gauge
09910-20115
Conrodholder
Measure clearance of piston ring. Used to lock the crankshaft.
