Chapter 4 EI system diagnosis Section 4 EI system troubleshooting
4—39
SENSORS
⊙ CKP INSPECTION

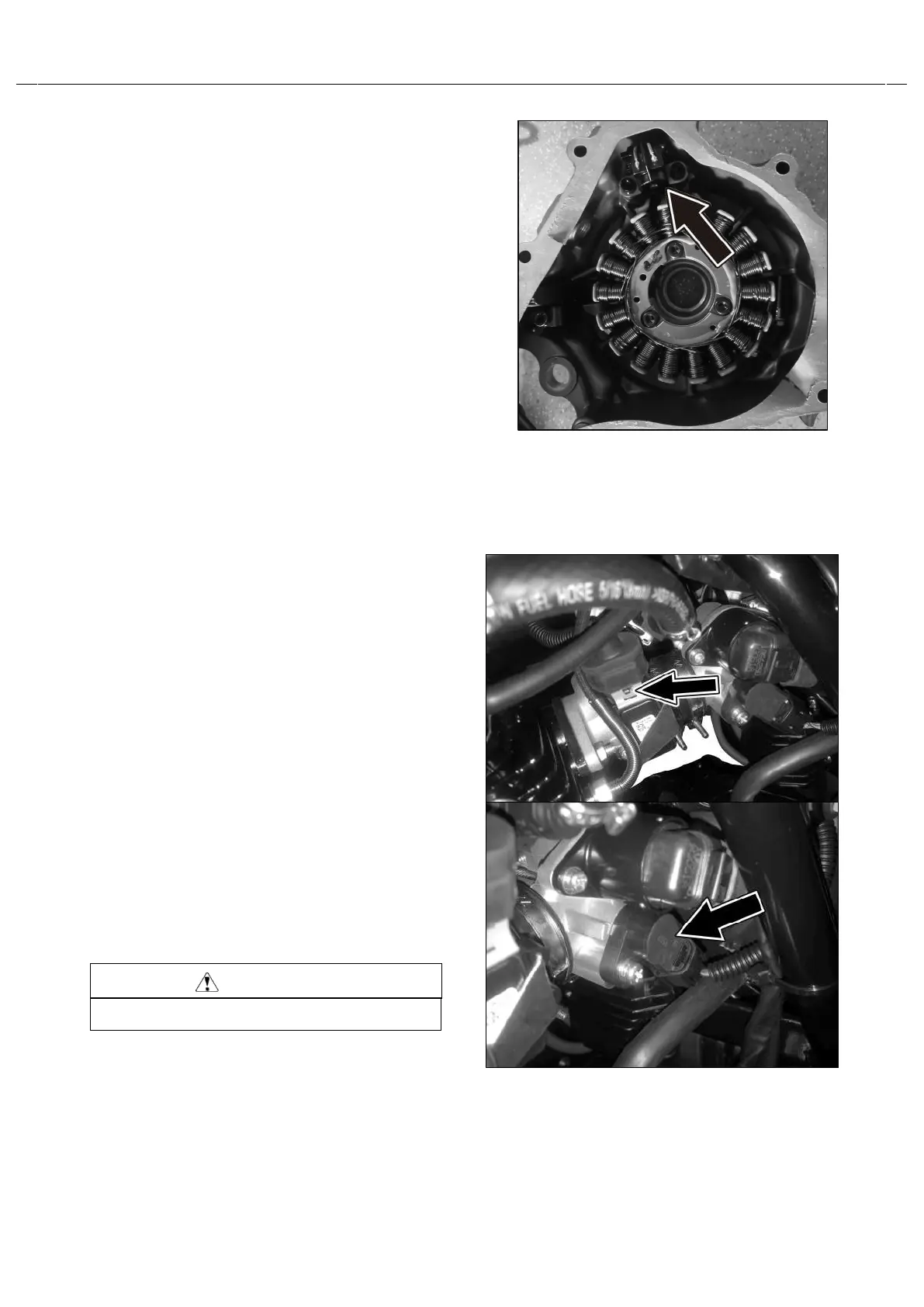

The CKPis installed in the magneto cover.
⊙CKP REMOVAL AND
INSTALLATION
• Remove the magnetocover.
• Install the magne to cover in the reverse order of
removal.
⊙ MAP&IAT （ MAP ） SENSOR INSPECTION
•
The MAP sensor is installed atthe throttle body.
⊙MAP&IAT （IAT）
SENSORREMOVAL
ANDINSTALLATION
•
Remove the fueltank.
•
Remove the
MAP
sensor from the in take pipe.
•
Install the
MAP
sensor in the reverse order of
removal.
⊙ TPSENSOR INSPECTION
The throttle position (TP) sensoris installed
at the throttle body.
⊙TPSENSORREMOVALA
ND INSTALLATION
Never remove or adjust the TP sensor.
CAUTION
