Chapter 6 Chassis section 2 Front wheels
6—2

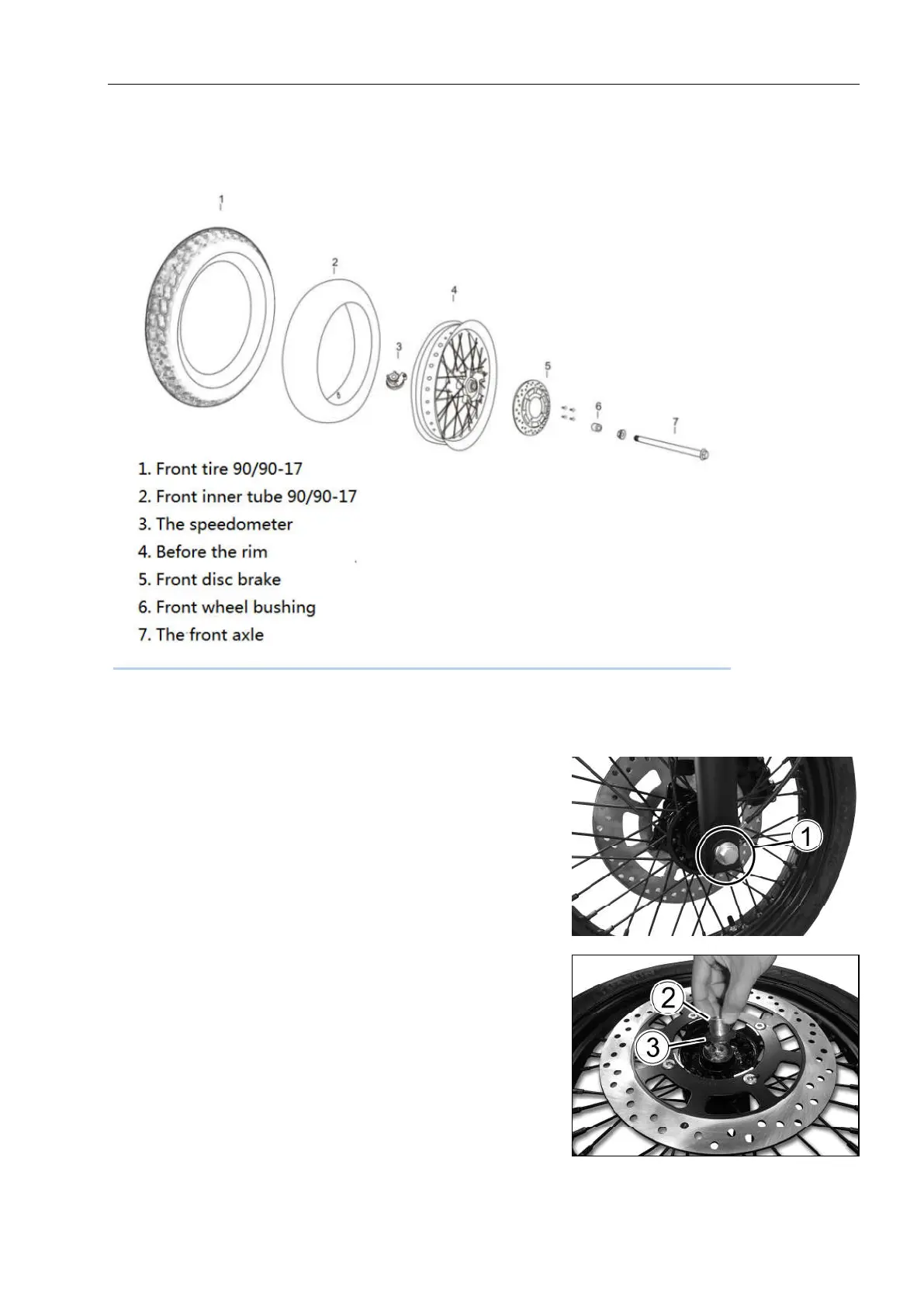

REMOVAL
Front wheel
Loosen the front axle screw nut ，
Lift the front wheel off the ground with the main
support.Remove the front wheel by removing the front
axle①.As in Fig.5.2.2.
Remove the bushing and oil seal ② ③.
As in Fig.5.2.3.
Fig.5.2.2
Fig.5.2.3
Section 2 Front wheels
Structure
