Chapter 6 Chassis section 1 Exterior parts
6—1
Chapter 6 Chassis
Section 1 EXTERIOR PARTS

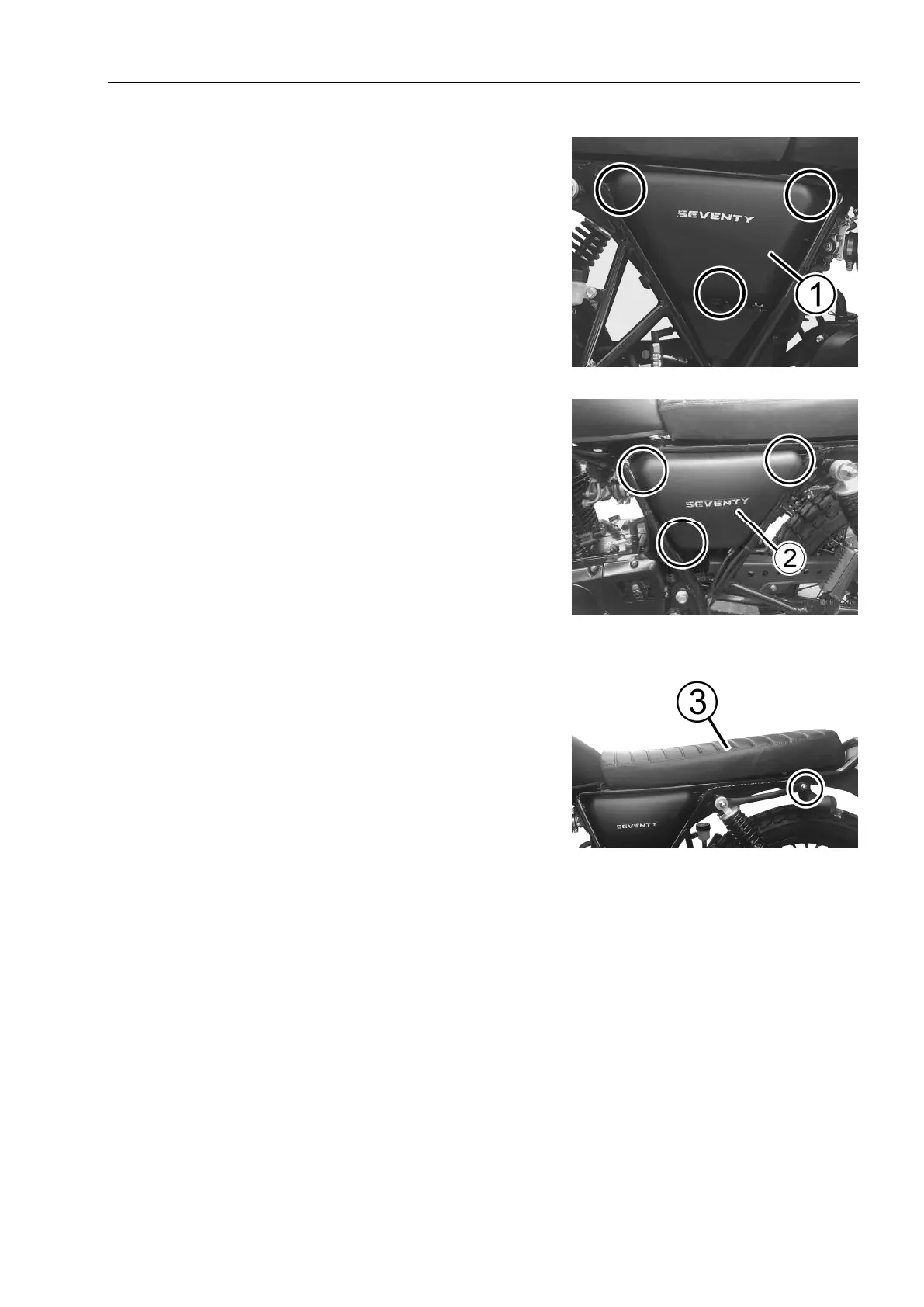

Remove
●
With the hook removed, remove the right
side cover.
①
As in Fig.5.1.1
●
With the hook removed, remove the left
side cover②
As in Fig.5.1.2
Seat
Pull the seat to the rear of the vehicle and
remove the seat.
As in Fig.5.1.3
Re-assembly
The frame guard and saddle can be reinstalled
in the reverse order of disassembly.
Fig.5.1.1
Fig.5.1.2
Fig.5.1.3
