Chapter 7 Electrical system, Section 2 Ignition system
Section 2 Ignition system
INSPECTION
MAGNETO

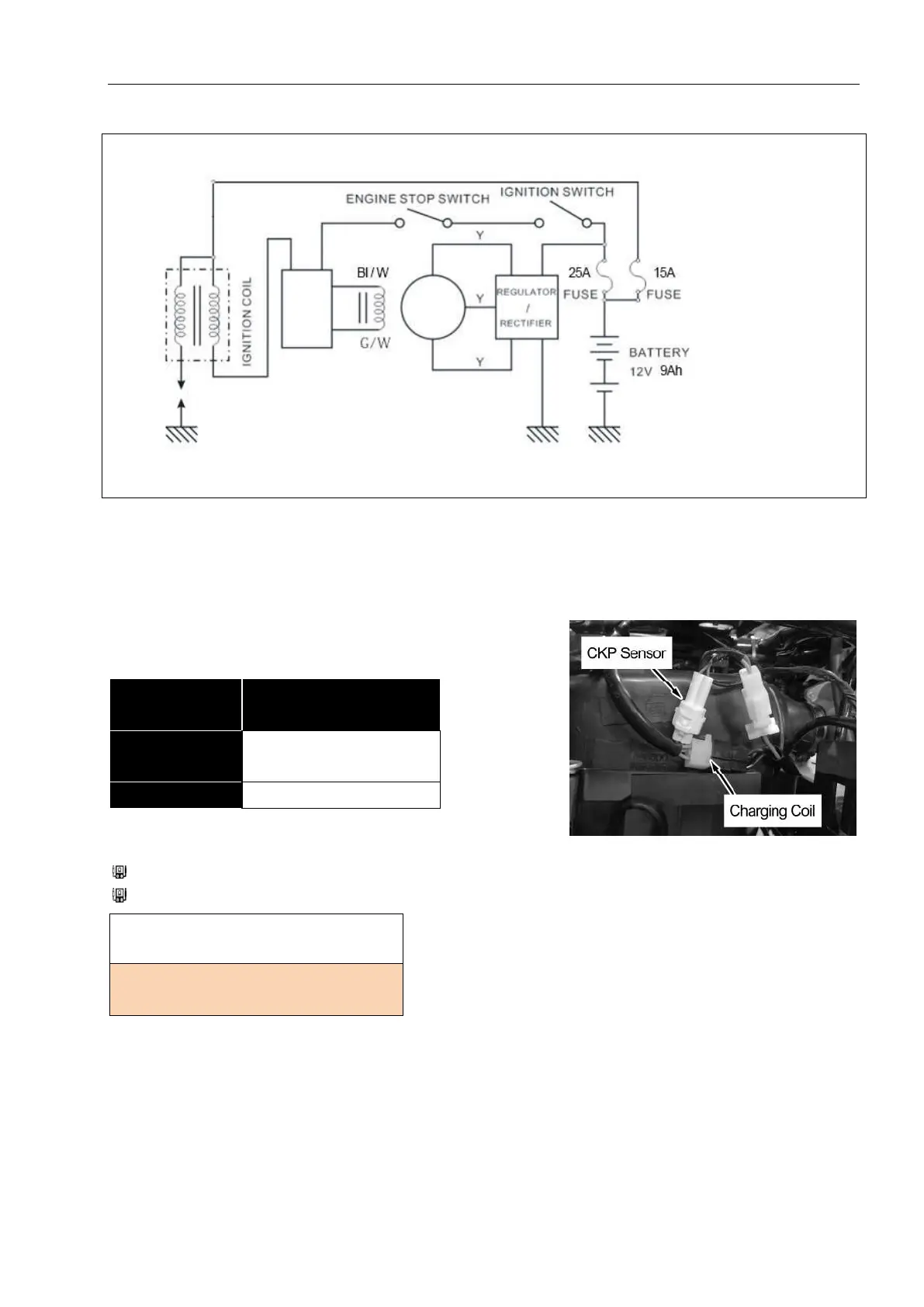

Using the pocket tester, measure the resistance between the
lead wires in the following table.
If the resistance is not within the specified value,
replace the stator coil, with a new one.
Pocket Tester : 09900-25002
Tester knob indication : Resistance (Ω)
Stator coil
resistance
Standard
CKP Sensor
G
-
BL Approx.95~125
Ω
Charging coil
Y
-
Y
Approx.0.3~
1.3
Ω
N O T E
When making above test, it is not
necessary to remove the magneto.
To Next Page
