Chapter 3 Engine Section 2 Engine Disassemble and Re-assemble
3—3
Make the gasket flattened.

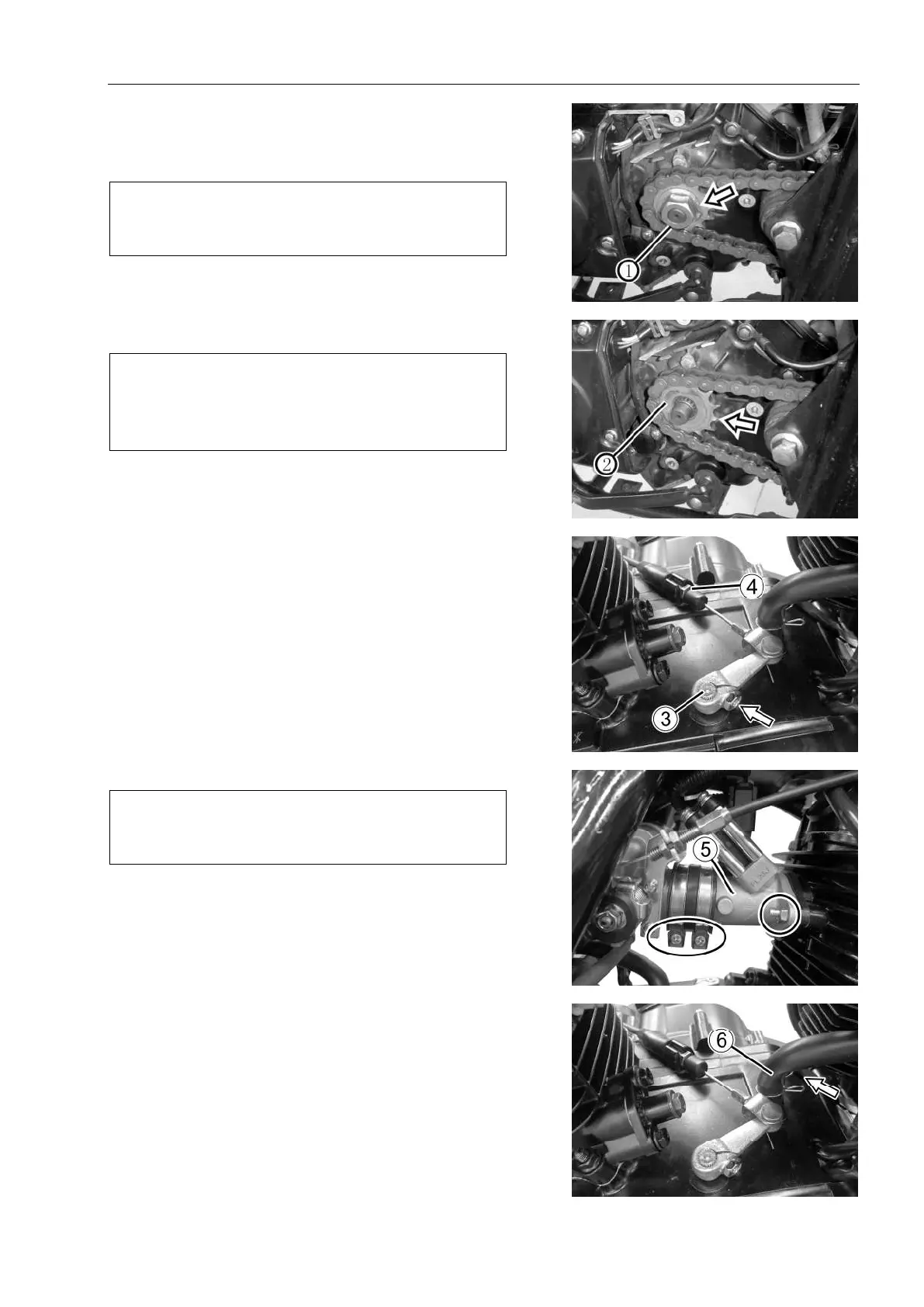

Remove the engine sprocket nut and gasket. As in ①
Fig.3.2.6
Note：
When removing the engine sprocket nut,
depress the braking pedal.
Remove the engine sprocket . As in Figure 3.2.7②
Note:
If it is difficult to remove the engine sprocket,
loosen the rear rocker arm nut and chain adjuster
nut to loosen the chain.
Remove the clutch release lever .③
Remove the clutch tension wire regulator . As in Figur④ e
3.2.8
Loosen the clamp screw connected to the air filter exhaust
pipe.
Remove the left and right nuts connecting the carburetor
and the intake elbow.
Remove the carburetor . ⑤
As in Figure 3.2.9
Note：
Gasoline is explosive, so special attention must be
paid.
Remove the crankcase breather hose . AS in Fig. 3.2.10⑥
Fig.3.2.6
Fig.3.2.7
Fig.3.2.8
Fig.3.2.9
Fig.3.2.10
