Section 2 Engine Disassemble and
Re-assemble
Engine disassemble
Remove the bracket
Remove the saddle
Remove the fuel tank
Remove the battery cathode line. As in Fig.3.2.1.
Drain out the engine oil.
Remove the exhaust pipe bolts.
As in Fig.3.2.2
Remove the Muffler mounting bolts
As in Fig.3.2.3
Remove the gear shift lever .①
As in Fig.3.2.4
Remove the engine sprocket cover .②
As in Fig.3.2.5

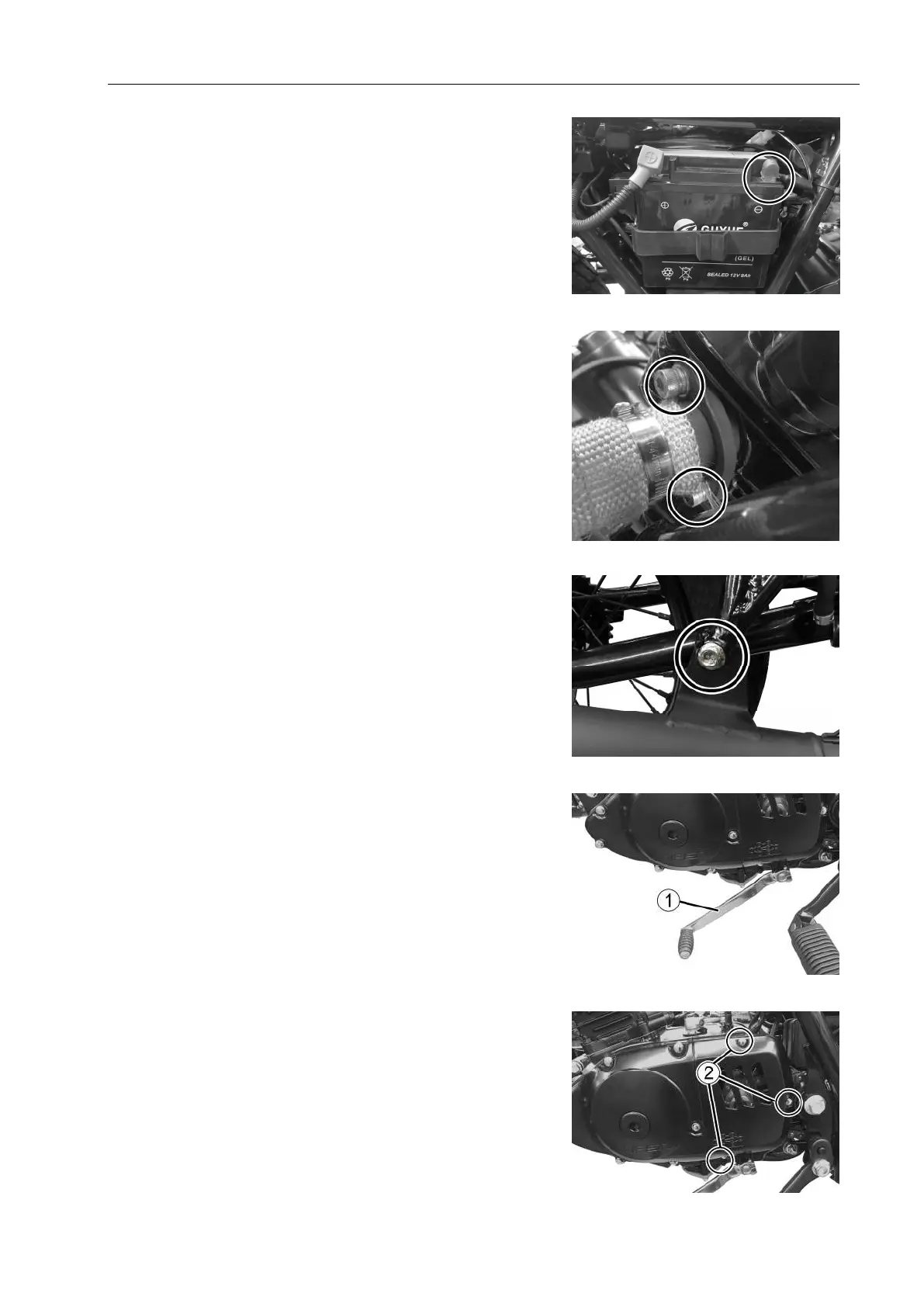

Fig.3.2.1
Fig.3.2.2
Fig.3.2.3
Fig.3.2.4
Fig.3.2.5
