Chapter 6 Chassis section 4 Front shock absorber
6—14
Disassembly and decomposition
Brace the motorcycle securely.Remove the front
wheel.Remove the calipers .②
Note:Secure the brake to the frame with a rope,
being careful not to bend the brake tube.Do not
grasp the brake handle.
Remove the speedometer soft axis clamp ③from the
front right shock absorber assembly.
Remove the front fender④.As in Fig.5.4.2.
Fig.5.4.2

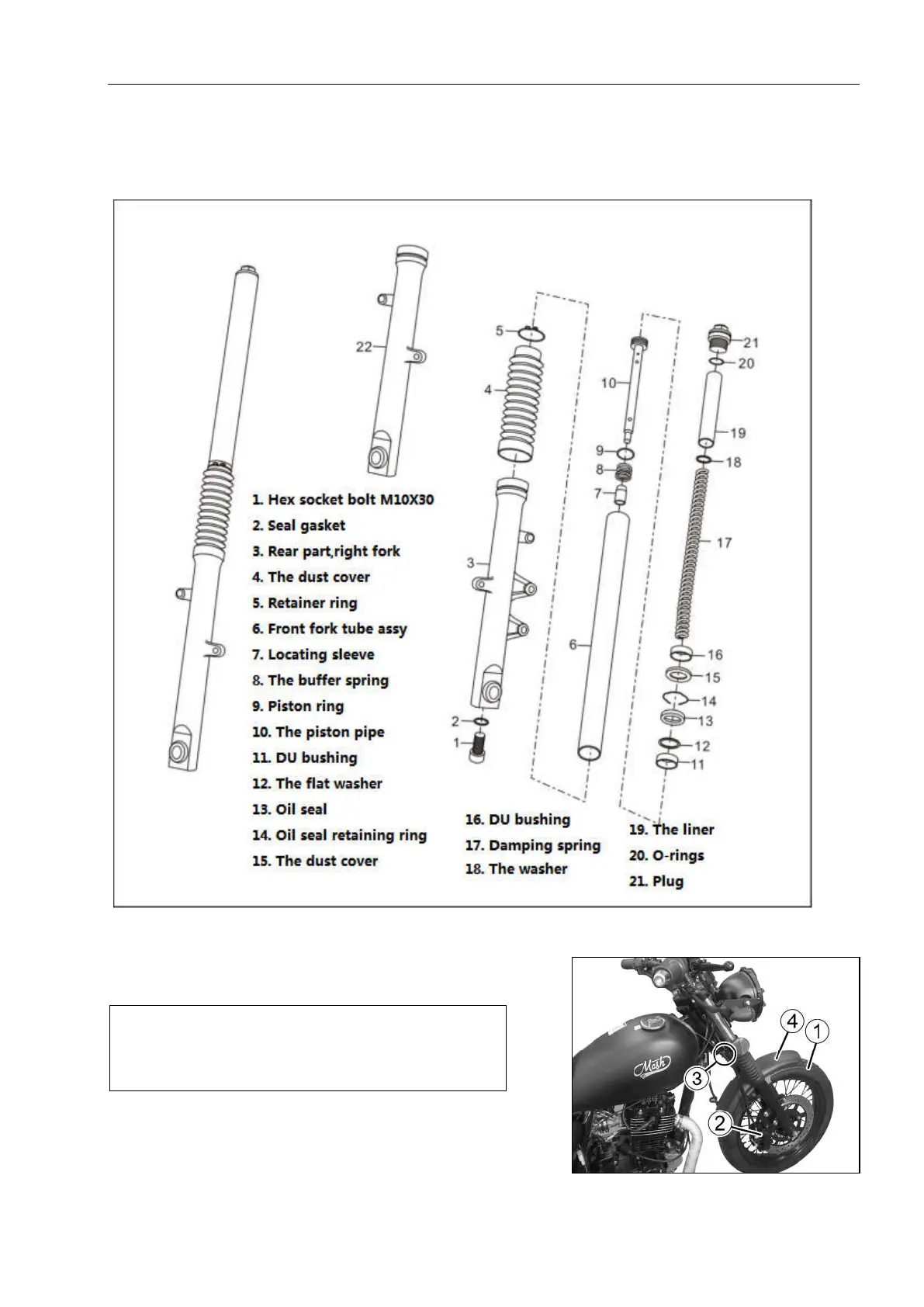

Section 4 Front shock absorber
Structure
Fig 5.4.1
