Chapter 3 Engine Section 3 Engine dissassembly
3—15

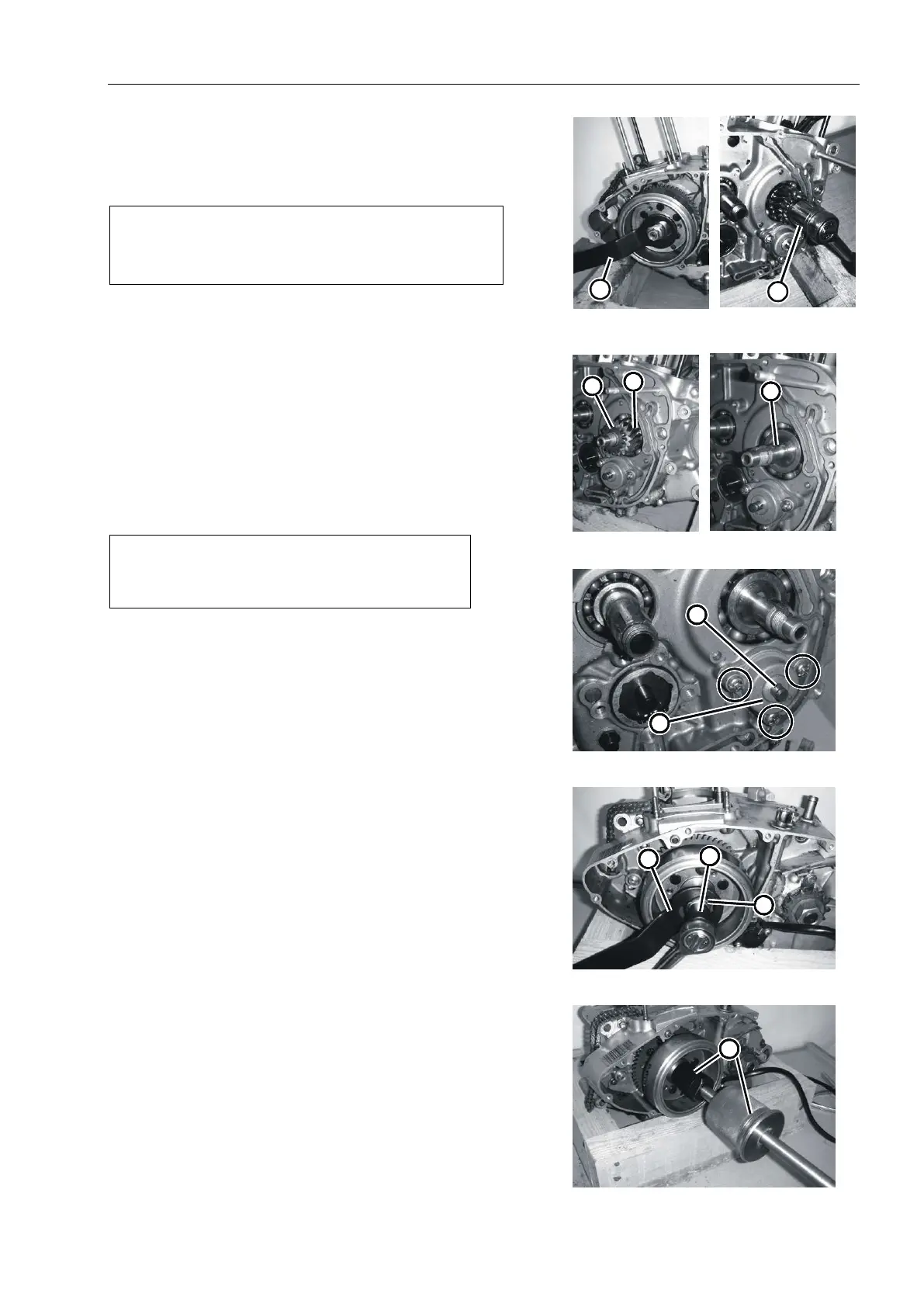

Use a special tool to remove the primary driving
gear/oil pump driving gear nut M6⑨..
As in Fig.3.3.31
Tools: rotor support⑩
Note:
The nut M6 is left thread.
Remove the cushion
Remove the driving gear of oil pump①and primary
drive gear .Remove key .② ③
As in Fig.3.3.32
Remove the drive pin .⑤
Unload the oil pump④
As in Fig.3.3.33
Note:
Do not attempt to disassemble the oil pump
device.
Remove the nut of magneto rotor with a special
tool .⑥
Tools: rotor gripper socket wrench .⑧ ⑦
As in Fig.3.3.34
Remove magneto rotor with special tool.
Tools used: rotor disassembly slider ⑨
As in Fig.3.3.35
Fig.3.3.31
9
10
Fig.3.3.32
1
2
3
Fig.3.3.33
4
5
Fig.3.3.34
8
6
7
Fig.3.3.35
9
