Chapter 3 Engine Section 3 Engine dissassembly
3—16

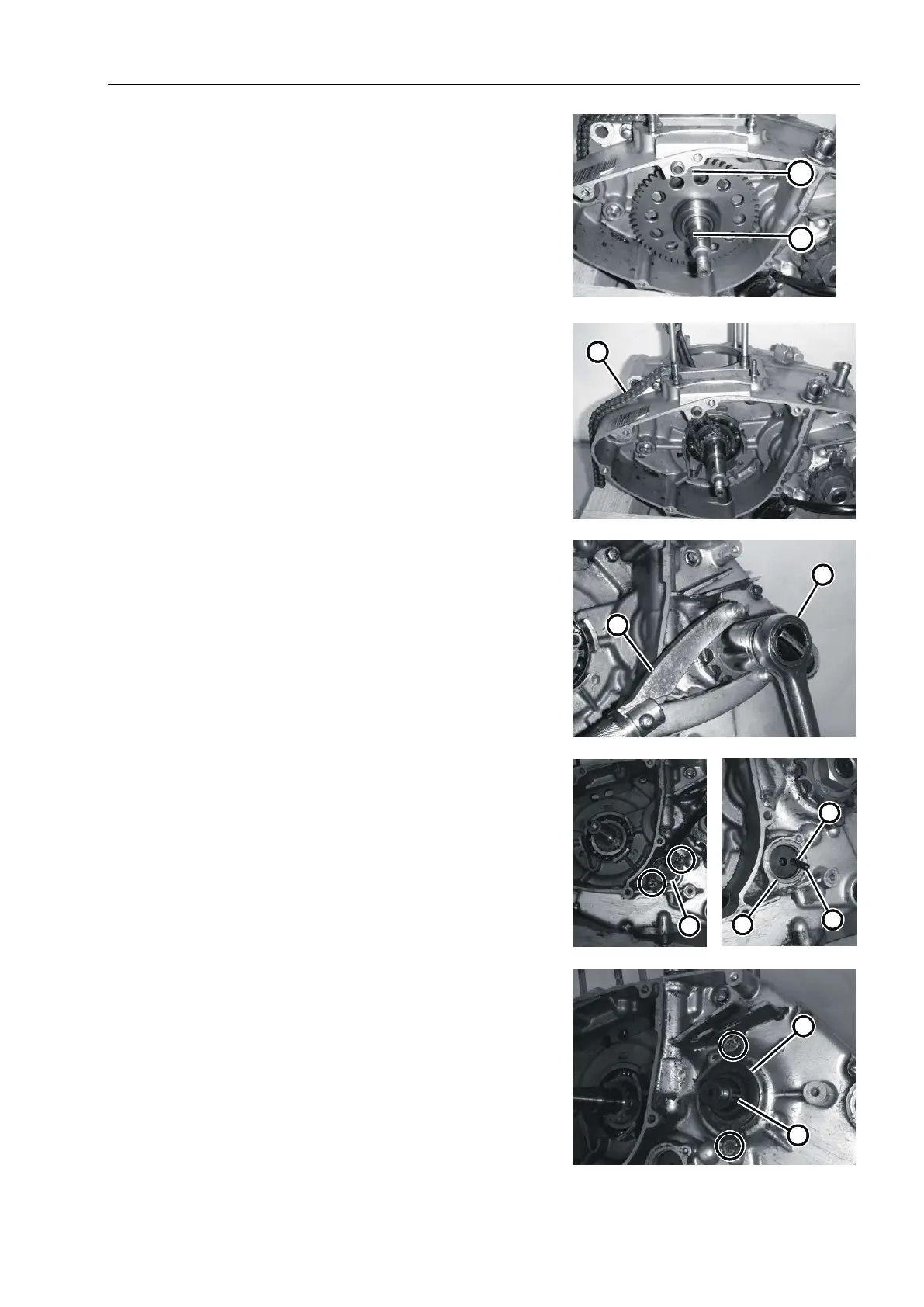

Remove the magneto rotor key（11）
Remove the starting slave wheels.⑩..
As in Fig.3.3.36
Remove the valve chain①..
As in Fig.3.3.37
Use special tools to remove sprocket nut, sprocket
baffle and sprocket.
Tools: sprocket holder②
Socket wrench③..
As in Fig.3.3.38
Remove the gear switch④..
Remove O-ring⑤,Gear switch contactor⑥and
spring⑦
As in Fig.3.3.39
Remove the oil seal baffle⑧..
Remove the spacer⑨..
As in Fig.3.3.40
Fig.3.3.36
11
10
Fig.3.3.37
1
Fig.3.3.38
3
2
Fig.3.3.39
4
5
6
7
Fig.3.3.40
8
9
