Chapter 3 Engine Section 3 Engine dissassembly
3—17

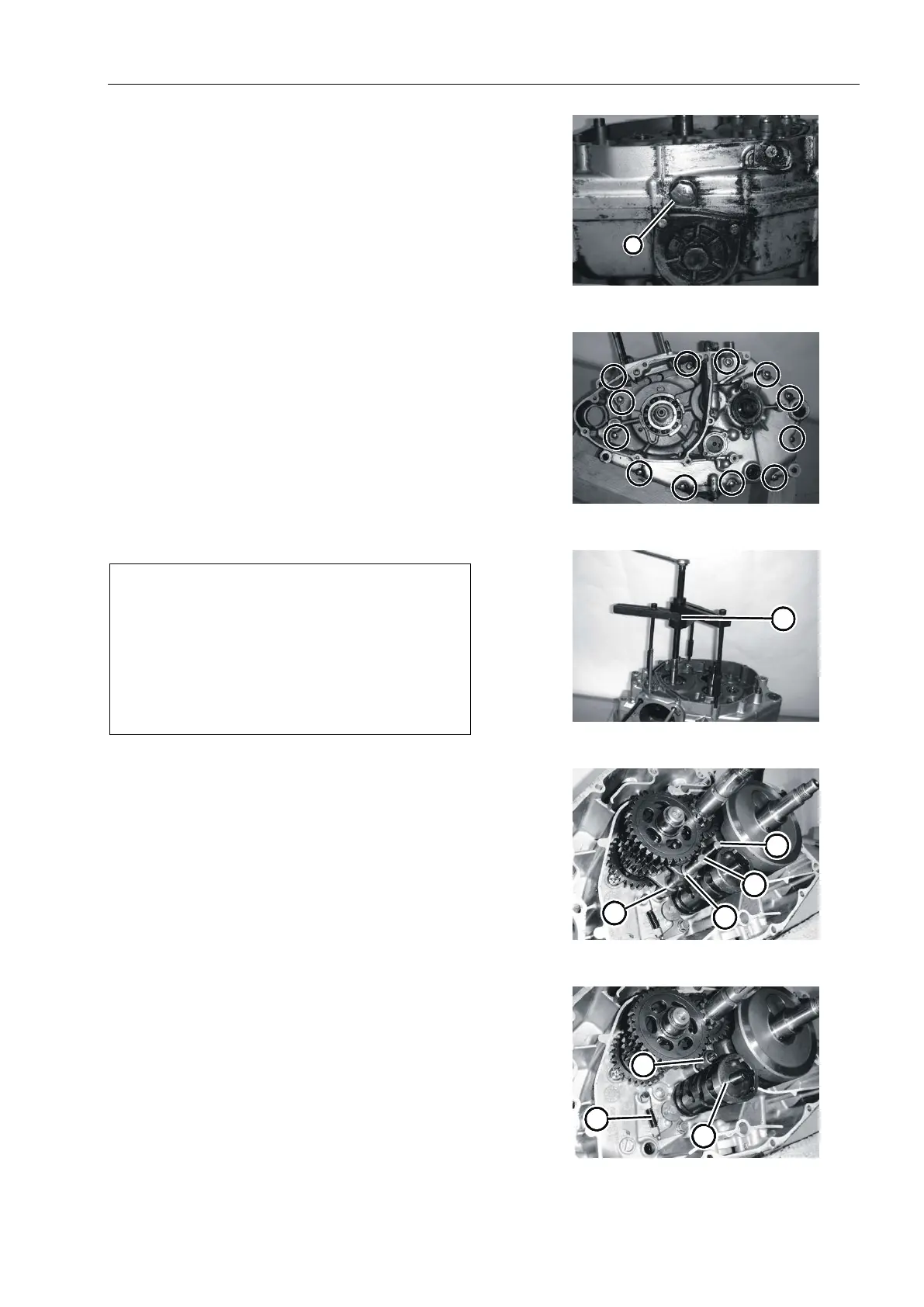

Remove the M14 bolt⑩，Remove the idle CAM top
pin and spring.
As in Fig.3.3.41
Remove crankcase bolts.
As in Fig.3.3.42
Use special tools to separate left and right crankcases.
Tools: crankcase separator①
As in Fig.3.3.43
Note:
Install the crankcase separator so that the tool
arm is parallel to the crankcase surface. The
crankshaft handle and transmission parts should
be left in the left crankcase. When separating the
crankcase, the intermediate shaft end can be hit
with a plastic hammer.
Remove shift fork shaft②③、And shift forks④⑤..
As in Fig.3.3.44
Remove the shift cam limit spring⑦
Remove the shift cam⑥
Remove the shift forks⑧
As in Fig.3.3.45
Fig.3.3.41
10
Fig.3.3.42
Fig.3.3.43
1
Fig.3.3.44
2
3
4
5
Fig.3.3.45
7
8
6
