Mash Seventy - Page 56

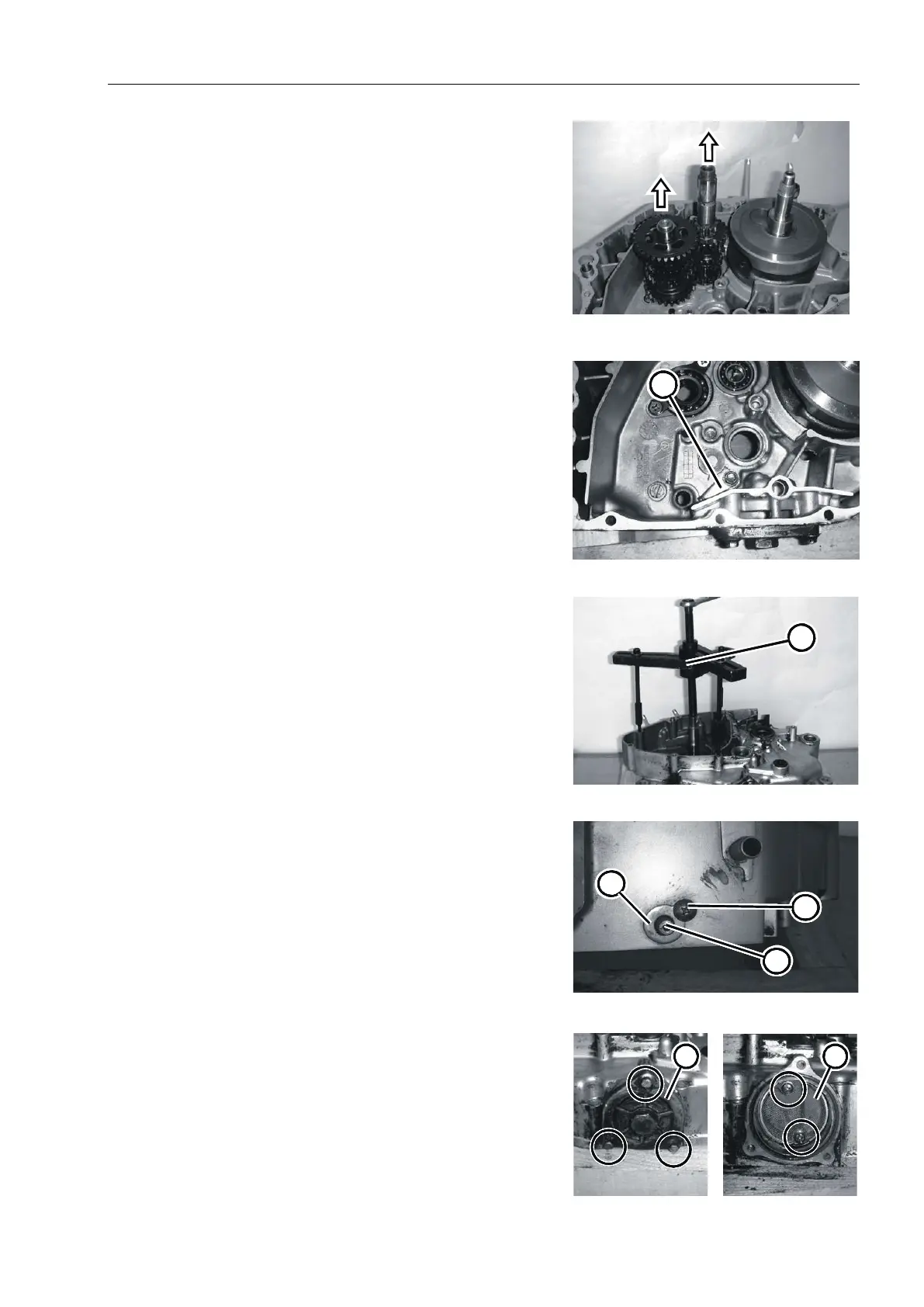

Chapter 3 Engine Section 3 Engine dissassembly
3—18
Remove the transmission gear
As in Fig.3.3.46
Remove the shift CAM positioning plate①..
As in Fig.3.3.47
Use special tools to remove the crankshaft.
Tools: crankcase separator②
As in Fig.3.3.48
Remove the M6 bolt③
Remove the oil seal pressure plate .⑤
Remove the clutch and separate the camshaft .④
As in Fig.3.3.49
Remove the screen cover .⑥
Remove the oil filter combination .⑦
As in Fig.3.3.50
Fig.3.3.46
Fig.3.3.47
1
Fig.3.3.48
2
Fig.3.3.49
3
4
5
Fig.3.3.50
6
7
