Chapter 3 Engine Section 3 Engine dissassembly
3—10

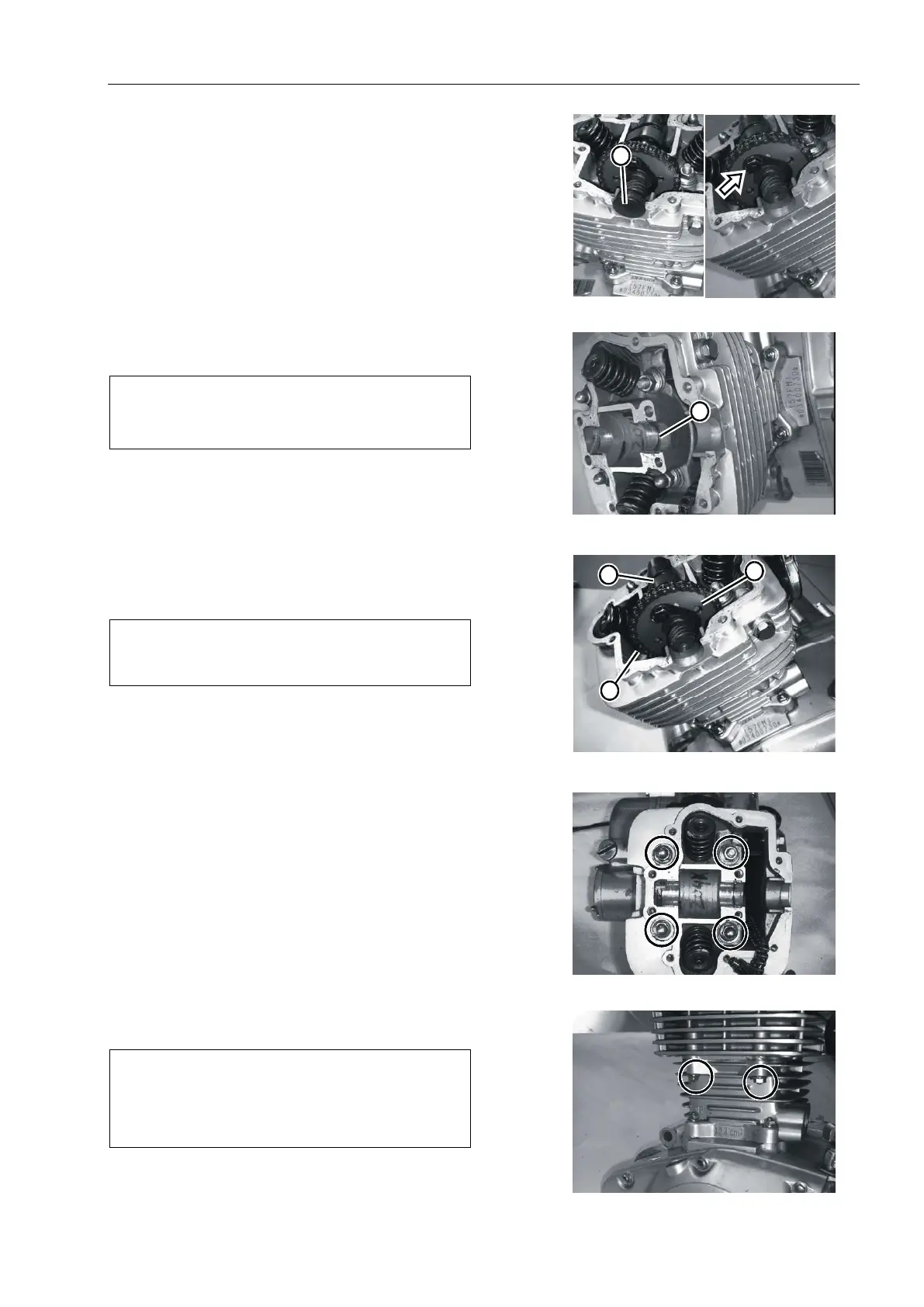

Remove camshaft end plug①
As in Fig.3.3.6
Level the clamping plate and remove the camshaft
sprocket bolts
Remove the C-ring②..
As in Fig.3.3.7
Note：
Do not let the C-ring fall into the
crankcase.
Remove camshaft sprocket③and the camshaft④..
Note：
Do not let the chai⑤fall into the crankcase
As in Fig.3.3.8
Remove cylinder head nut diagonally M8
As in Fig.3.3.9
Remove the M6 nut ,then remove the cylinder head
As in Fig.3.3.10
NOTE：
If the cylinder head cannot be removed,
use a plastic hammer to gently knock the part
without heat sink.
Fig.3.3.6
1
Fig.3.3.7
2
Fig.3.3.8
4
3
5
Fig.3.3.9
Fig.3.3.10
