Chapter 3 Engine Section 3 Engine dissassembly
3—11

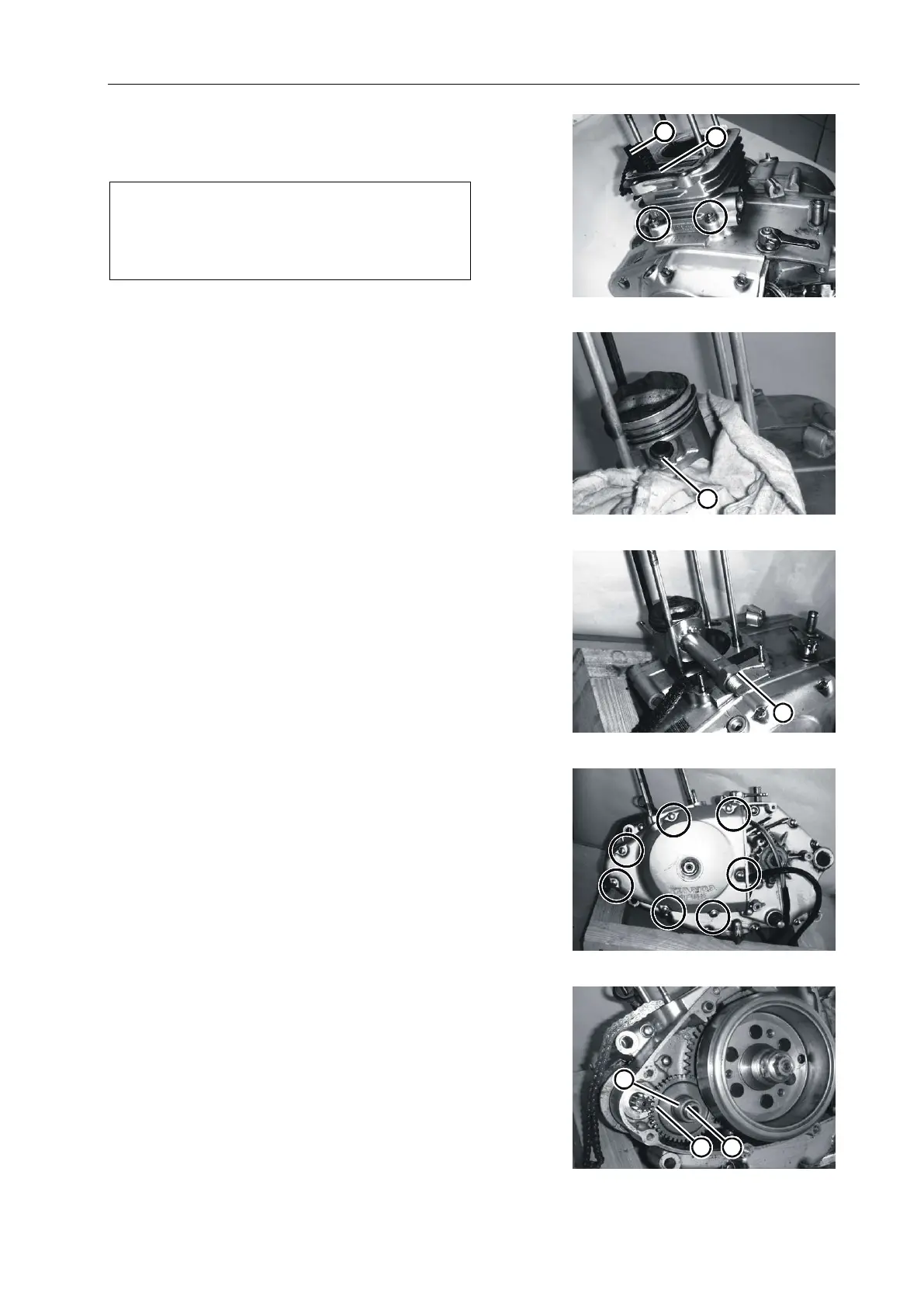

Remove cylinder head gasket .①
Remove the CAM chain guide plate .②
Remove the nut M6 and remove the cylinder.As in
Fig.3.3.11
Note:
If the cylinder head cannot be removed,
use a plastic hammer to gently knock the part
without heat sink.
Place a clean piece of cotton cloth on the cylinder seat
to prevent the piston pin spring from falling into the ③
crankcase.
Then use long nose pliers to remove the piston pin
spring.
As in Fig.3.3.12
Remove the piston pin using a special tool.
Tools: piston pin puller ④
Remove the piston.
As in Fig.3.3.13
Remove magneto cover.
As in Fig.3.3.14
Remove the sleeve⑥、Axle⑦and Starting idler⑤..
As in Fig.3.3.15
Fig.3.3.11
1
1
2
Fig.3.3.12
3
Fig.3.3.13
4
Fig.3.3.14
Fig.3.3.15
