Chapter 6 Chassis section 6 Rear wheels
6—29

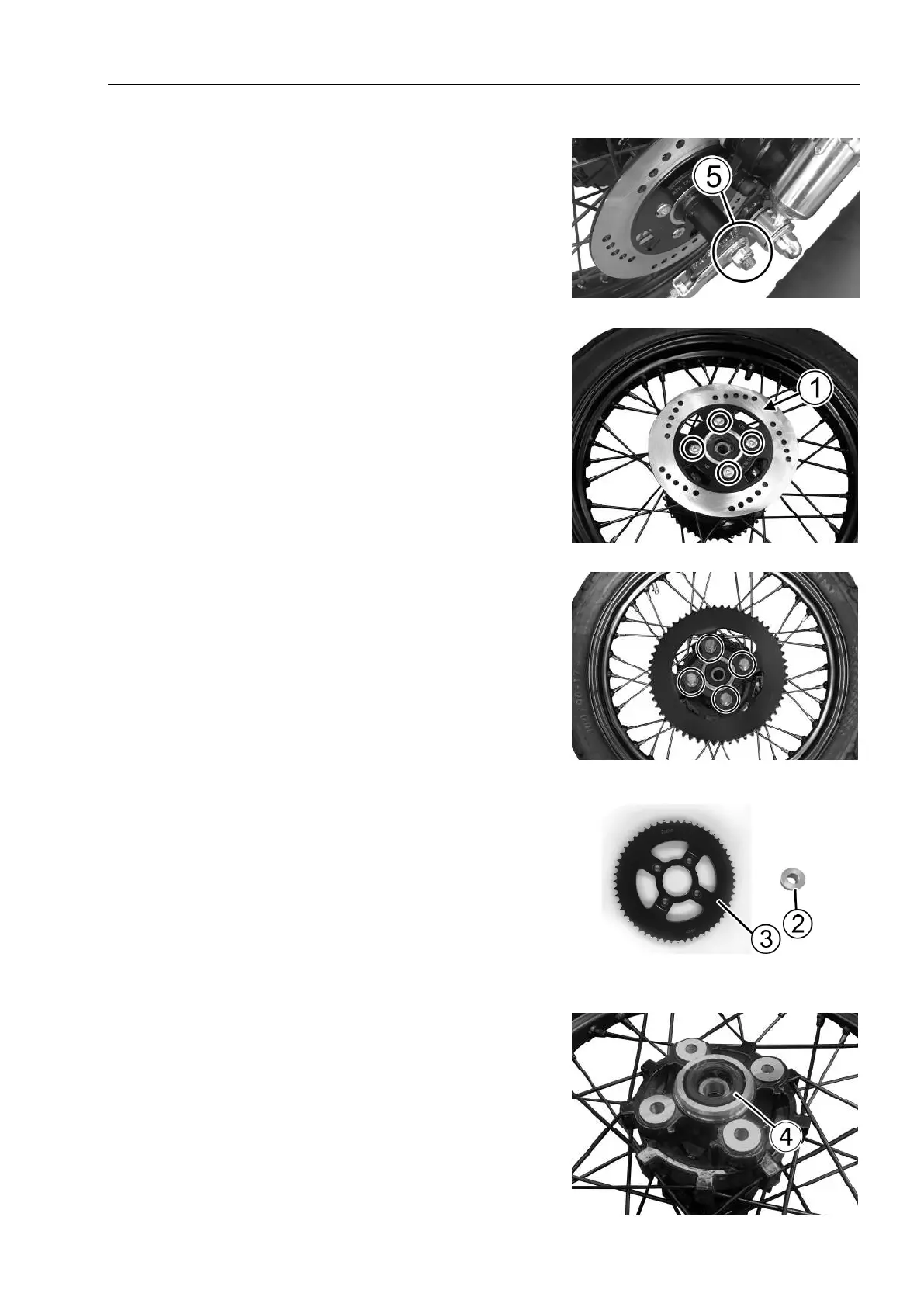

Lift the rear wheel off the ground with a jack or
block.
Remove the rear axle self-locking nut , pull out the ⑤
rear axle, remove the rear wheel.As in Fig.5.6.6.
Remove the rear disc brake①. As in Fig.5.6.7.
Remove large sprocket mounting nut.As in
Fig.5.6.8.
Remove rear wheel left spacer②，Remove the large
sprocket③.
As in Fig.5.6.9.
Remove the oil seal
④
.As in Fig.5.6.10.
Tools: oil seal remover
Fig.5.6.6
Fig.5.6.7
Fig.5.6.8
Fig.5.6.9
Fig.5.6.10
To Next Page
