Chapter 7 Electrical system, Section 2 Ignition system

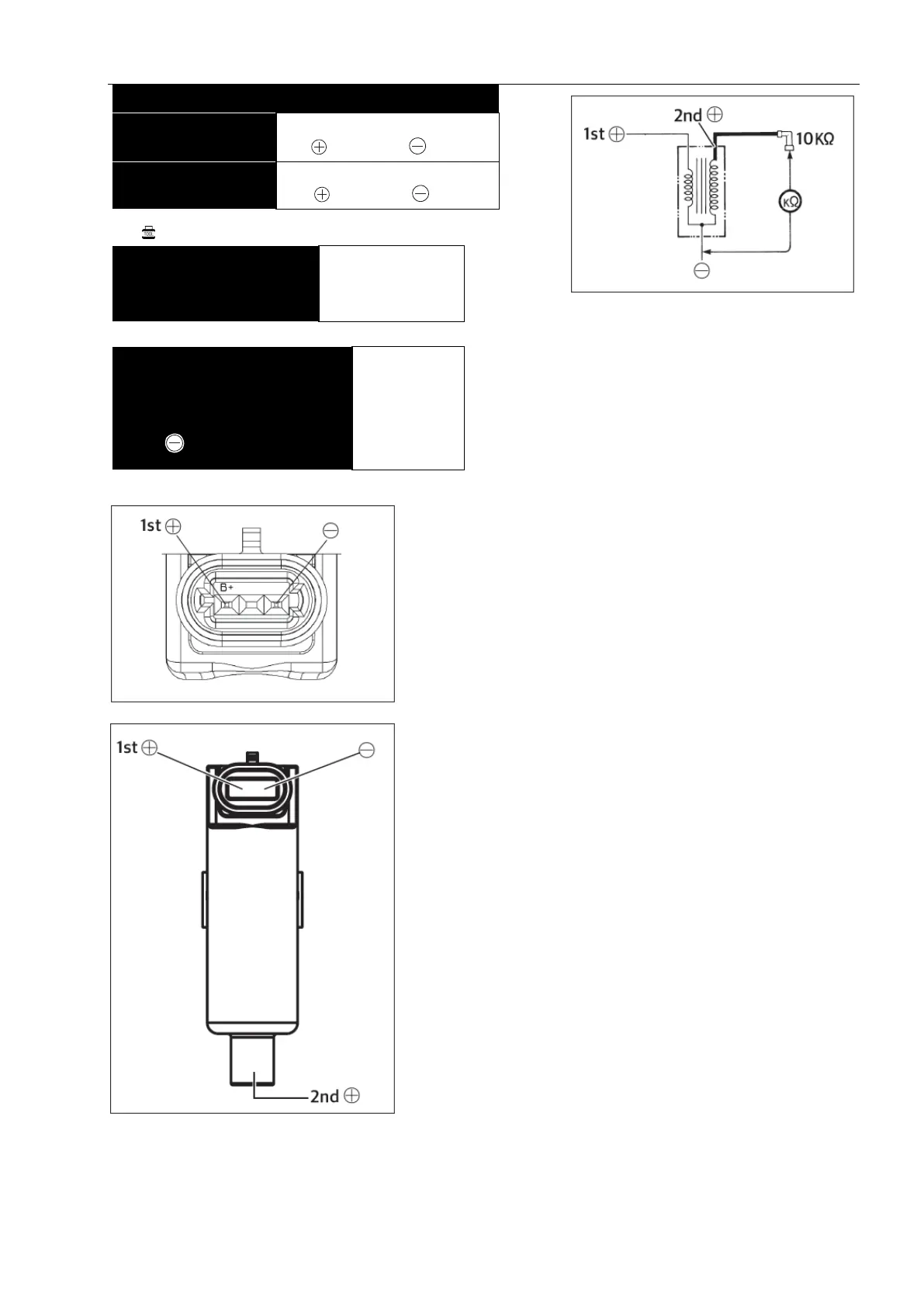

IGNITION COIL RESISTANCE点

primary

0.52～0.64

Ω

1st terminal— terminal

Secondary

6.4～7.8

KΩ

2nd terminal— terminal

Pocket Tester :09900

25002

SPARK PLUG CAP

RESISTANVE

10K

Ω

lgnition coil

secondary/spark plug cap

resistance（spark plug cap～

terminal）

16.4～17.8K

Ω
