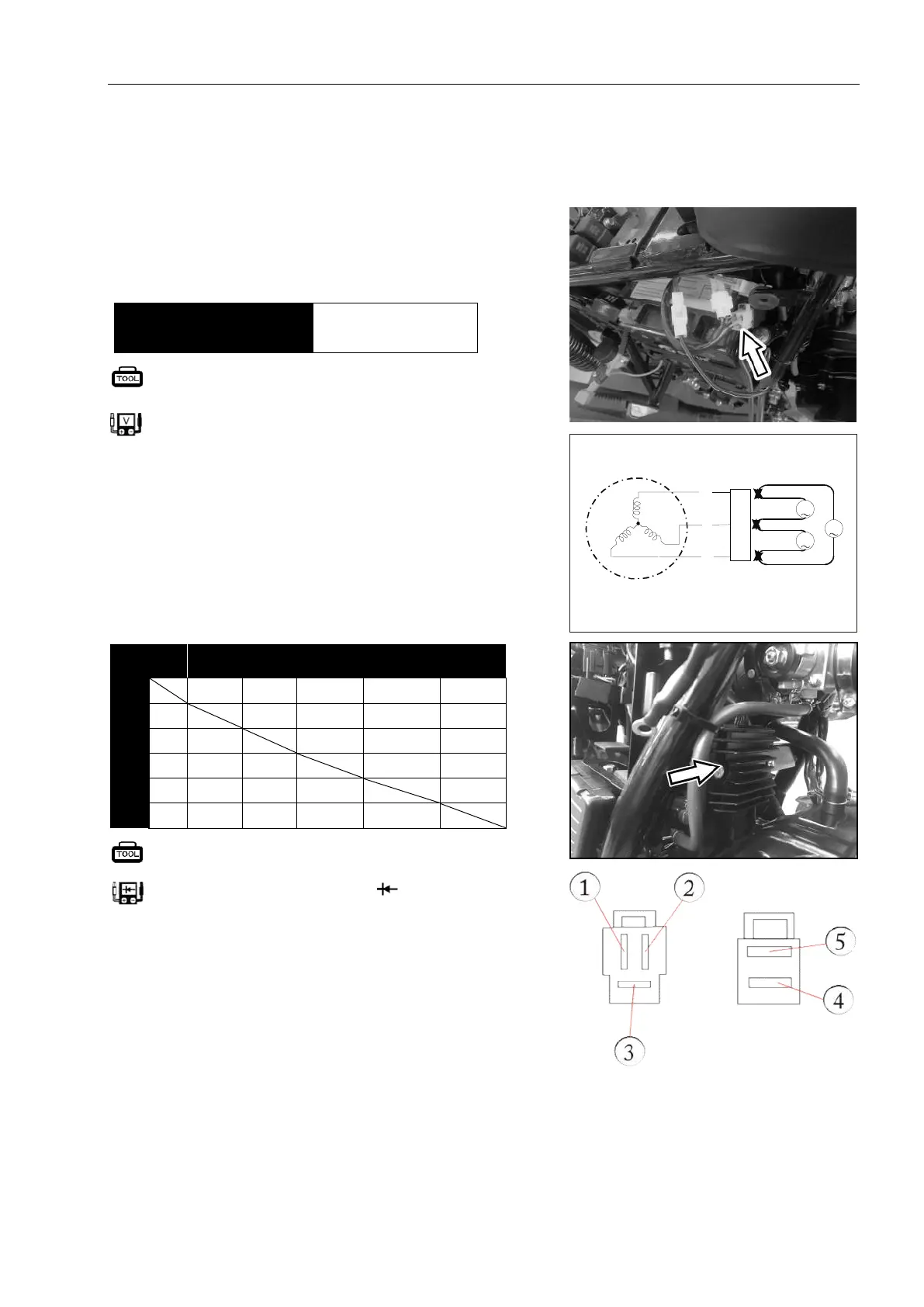

MAGNETO NO-LOAD PERFORMANCE
Disconnect the three lead wires from the magneto terminal.
Start the engine and keep it running at 5,000 rpm.
.
Using the pocket tester, measure the AC voltage between the
three lead wires.
.
If the voltage is under the specified value, replace the
magneto with a new one.
Standard no-load
performance of magneto
Over60V
(at5,000rpm)
Pocket tester: 09900-25002
Tester knob indication : Voltage (~)
REGULATOR / RECTIFIER
Disconnect the regulator / rectifier couplers.
Measure the voltage between the terminals using the pocket
tester as indicated in the table below.
If the voltage is not within the specified value, replace the
regulator / rectifier with a new one
Unit :
V
+Tester probe
-
Tester probe
① ② ③ ④ ⑤
① 0 0 0.3 ～ 0.5 0
② 0 0 0.3 ～ 0.5 0
③ 0 0 0.3 ～ 0.5 0
④ 0 0 0 0
⑤ 0.1 ～ 0.3 0.1 ～ 0.3 0.1 ～ 0.3 0.4 ～ 0.6
Pocket tester : 09900-25002
Tester knob indication:Diodetest( )
Y
Y
Y
V
V
V
