Matrox 4Sight - Page 18

18 Chapter 1: Before you begin
L
A
H
B
C
F
E
G
I
J
K
M
N
O
P
Q
Q
D
R
On/off switch*
Power input*
Mouse input (top port) and keyboard input (bottom port)
2 serial ports
Parallel port (top) and 3 IEEE 1394 ports (bottom)
Audio input (top port) and output (bottom port)
Auxiliary I/Os (top port) and video input (bottom port)
TV output (top port) and VGA output (bottom port)
Ethernet connector
LEDs
Available if you purchase the Matrox 4Sight integrated unit
*
TM
= DIMM slot
= Power connector**
= Floppy disk connector
= Power connector for additional IDE drivers
= IDE interface connector
= ATA (44) internal connector
= Connector to parallel port
= Hard drive (optional)
= Fan
= Flat panel backlight
= Flat panel
= DiskOnChip (optional)
= Connector to auxiliary I/Os
= Flash BIOS socket
= Ethernet controller
= National Semiconductor Geode GXLV processor
= PC/104- connectors
= PCI-to-PCI bridge
= Super I/O controller
= Battery
= Processor companion chip
connector
interface connector
Plus
*
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
PC/104-
expansion site
Plus

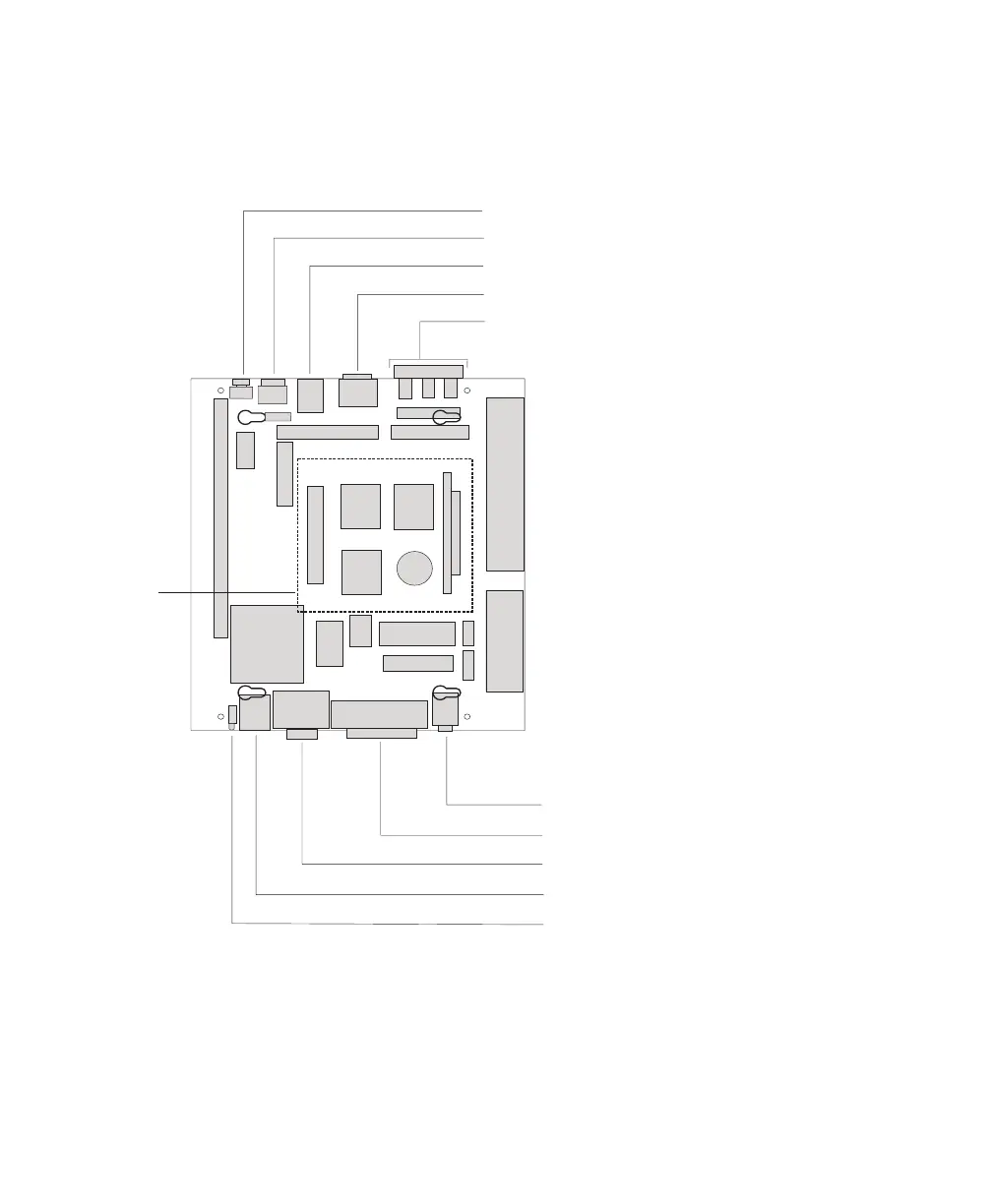

Matrox 4Sight components and connectors
S
T
Available on the stand-alone Matrox 4Sight motherboard
**
U
