BEFORE USE
4-3

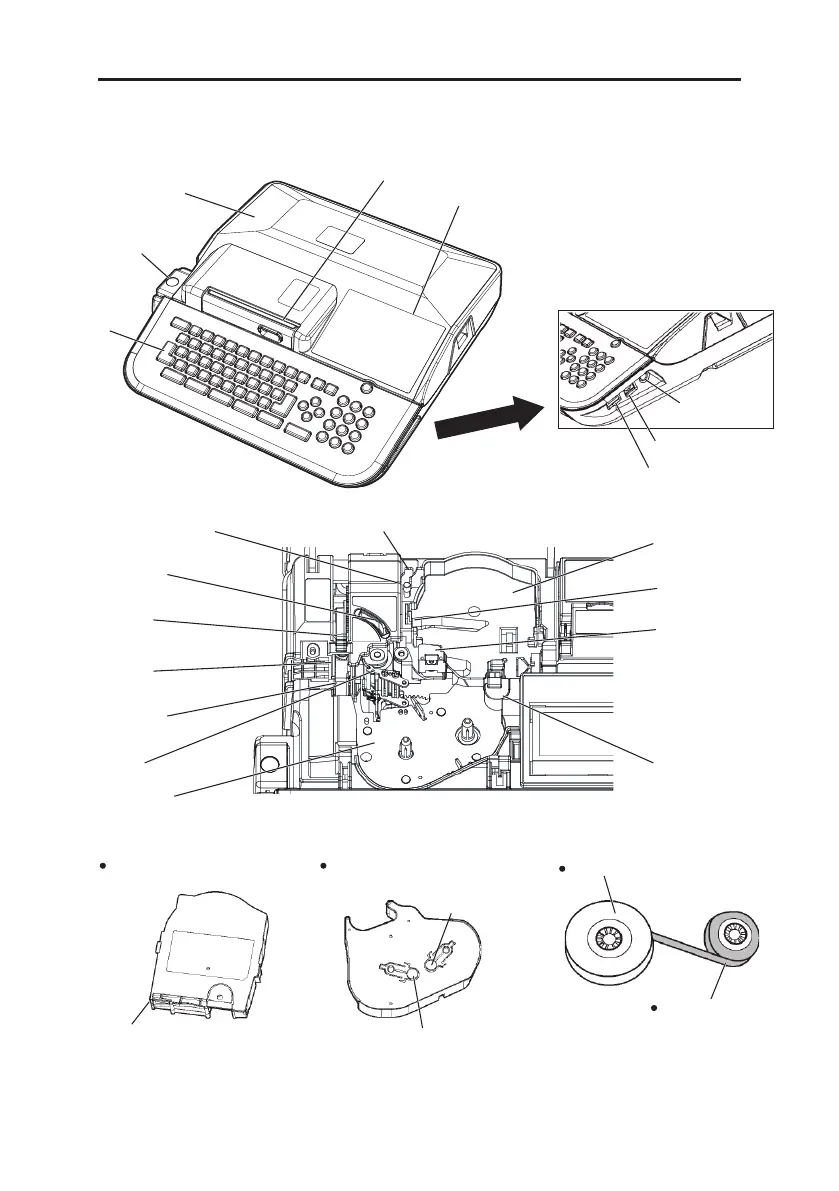

NAME OF EACH SECTION
Hook
Cassette cover
LCD display
T
ap
e c
assette
Guide
Ribbon case
Winding core
Ribbon core
Platen roller
H
ea
d pressure s
witching lever
H
ea
d release
l
ever (blue)
T
ub
e holder
A
Half cutter guide
(white)
Half cutter
(yellow color
)
Ribbon case holder
M roller lever
(silver)
T
ap
e cassette ho
lder
Lock button
Half cutting
de
pth adjustin
g
lever
USB Memory slot
AC a
da
pter inlet
USB cable port
M roller (gold color)
Button
A
Button B
Keyboard
Cutter button
11
13
Table of Contents
1 The Supplementary Manual of Lm-550A2 Series
1
2 Be Sure to Read
3
Introduction
3
Precautions for Use
3
Table of Contents
8
3 Contents
8
4 Before Use
10
Main Features
10
Confirming the Package Contents
11
Name of each Section
12
Name of Keys and Their Functions
13
Input Screen
15
Selecting the Screen Language
16
CLEANING the PLATEN ROLLER or REMOVING JAMMED TUBE ("FEED" Function)
17
Adjusting the Half Cutting Depth
18
Switching the Printing Pressure
18
Connecting Ac Adapter
18
USE with a RECHARGEABLE BATTERY (Panasonic Eneloop Recommended)
19
5 Loading the Consumables
20
Installing or Replacing the Ink Ribbon
20
Loading the Tubes and the Ink Ribbon Case
21
Loading the Tape Cassette and the Ink Ribbon Case
25
LOADING the 4.1Mm ID PLATE and the INK RIBBON CASE
27
Replacing the Half Cutter
29
Inserting the Usb Memory (External Memory)
29
6 Basic Operation
30
Printing on the Tube (Pitch Print)
31
Printing on the Tape
33
Pitch Print on the Tape
33
Normal Print on the Tape
35
Printing on the ID Plate (Pitch Print)
37
7 Inputting and Deleting Characters
39
Inputting Characters
39
Deleting Characters
39
Inputting Characters with "Code" Function
40
Inputting Characters with "Diacr" Function
41
8 Functions
42
Size
42
Width
43
Character / Line Space
44
Pitch Print
45
Pitch Length
46
Pitch Cut
46
Normal Print
47
Printing Length
47
Margin
47
Vertical
48
Repeat
48
Underline
49
Sequence
49
Frame
50
Symbol
51
Memory of Word
52
54
Advanced Settings
54
Printing Density
55
Low Temp. Mode
55
Feed the Head of Tube
55
6, 9" Mark
55
Position of Printing Line
56
Cutting Position
56
Auto Power-Off
56
Default Value of "Pitch Length
57
Default Value of "Repeat
57
Justification
57
Printing Style of "Rpt" & "Seq
58
Lcd Brightness
58
Lcd Backlight
59
Font Choice
59
Register Basic Setting
60
Period
60
Copy / Paste
60
Copy
60
Paste
60
Input Assistance Function
61
Memory
61
Internal Memory
61
Usb Memory (External Memory)
63
Tube Heater
65
9 Printing
66
Print Range Setting Screen
66
180 ° Rotation Print
66
Printing Length Alignment
67
Continue Printing after the Consumables Running out
67
10 Editing Data and Printing by a Personal Computer
68
Installing "Letatwin Pc Editor" and Printer Driver to Apersonal Computer
68
Installing "Letatwin Pc Editor
68
Installing the Printer Driver
69
Editing Data on a Personal Computer
71
Printing Directly from "Letatwin Pc Editor
71
Saving Data Directly from "Letatwin Pc Editor
72
11 Trouble Shooting
73
Error Message List
73
Troubleshooting
76
12 Product Specifications
78
13 Appendices
80
14 SPECIAL NOTICE for DISPOSAL(ONLY in India)
81
