3. GENERAL DESCRIPTION
The control unit detects and analyses the force profile obtained by crimping. The profile is
compared with a previously learned one and, in the event of defective crimping, the unit emits a
signal to the press that disables the operating mode.
Operating specifications:
Range
0 – 20 kN
Temperature
0 – 70 °C

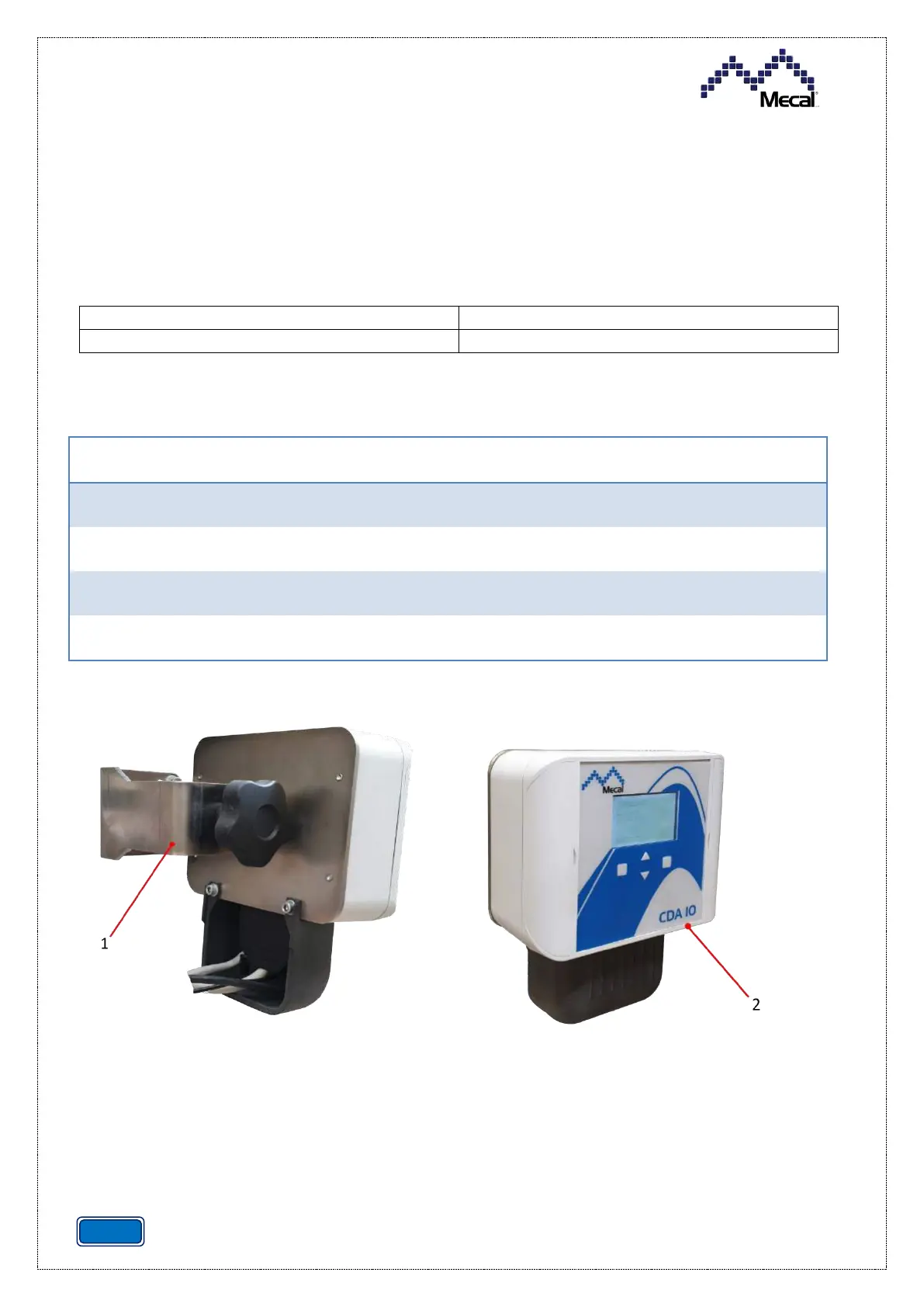

3.1 LAYOUT
ITEM DESCRIPTION
1 Adjustable support
2 Control unit
3 Force cell sensor
4 Encoder
